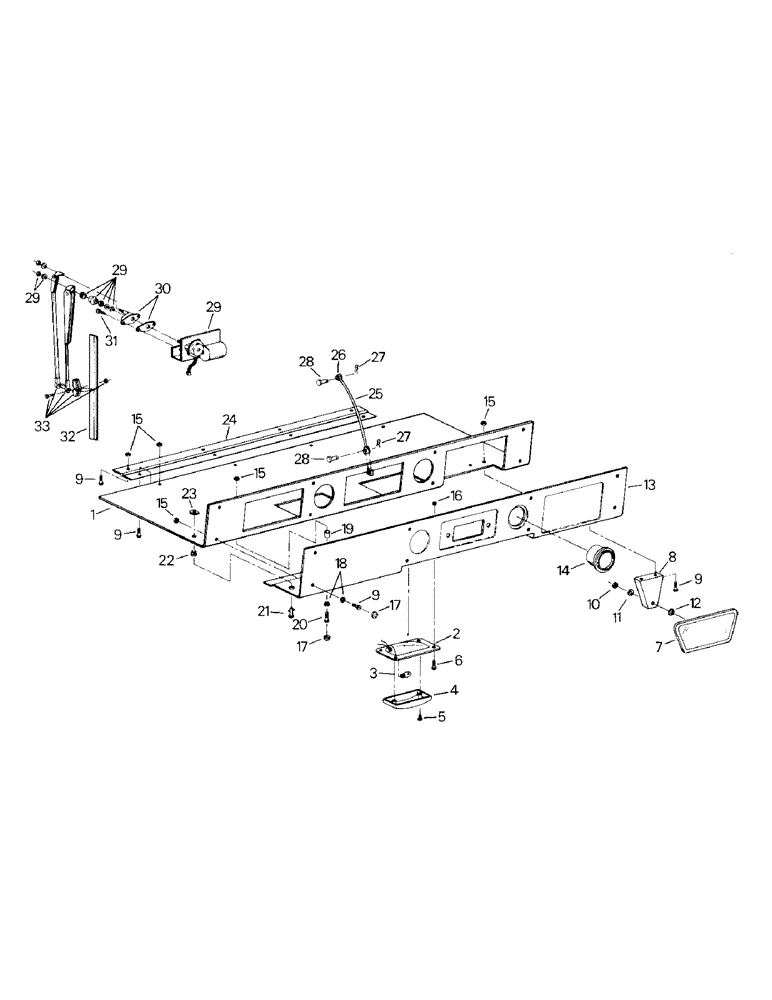

Запчасти Case IH KS-360 (01-16) - FRONT CONSOLE (10) - CAB

1

1-8671T4

CONSOLE

1шт.

1-9063T91

LIGHT

Dome Light Assy, Includes: Ref. Nos. 2-5

2шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

20-2007T1

BULB

1шт.

4

1-9064

LENS

1шт.

5

155830

ANGLE BAR

Machine Screw

2шт.

6

115857

ROD

Machine Screw

8шт.

7

1-8617

MIRROR

1шт.

8

64-86

BRACKET

Mirror Bracket

1шт.

9

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

Machine Screw

19шт.

10

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

11

19-223

WASHER,1/4"

1шт.

12

19-467

LOCK WASHER,Ext Tooth, 1/4"

1шт.

13

60-3146T2

ADHESIVE STRIP

Trim Panel

1шт.

14

20-2018T1

HOURMETER

(20-1404T1)

1шт.

ASN 3098: Tractors prior to SNB will need female spade terminals spliced into wire harness to adapt to 20-2018T1 hourmeter, Ref. 14. (B) Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

15

19-5563

LOCK NUT

Lock Nut

23шт.

16

19-5564

LOCK NUT,#6-32, GB

8шт.

17

1-8673

CAP

13шт.

18

1-8674

CAP WASHER

Cap Washer

13шт.

19

31-1354

FASTENER

Spacer

4шт.

20

454774

SCREW

Machine Screw

4шт.

21

19-5568

STUD

Quarter Turn Stud

2шт.

22

19-5569

RETAINER

Quarter Turn Retainer

2шт.

23

19-5570

CONTAINER

Quarter Turn Receptacle

2шт.

24

1-4291

Hinge

1шт.

25

1-4656

CABLE

Lanyard Cable

1шт.

26

1-4657

CLEVIS

2шт.

27

19-5380

PIN

Hair Pin

2шт.

28

19-143

CLEVIS PIN,5/16" x 0.94"

2шт.

29

Wiper Drive Assy (Front) (Fig. 1-22)

1шт.

30

54-311

PIVOT ASSY.

Pantograph Kit

1шт.

31

19-939

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 5

Capscrew (w/o Window Washer option)

2шт.

19-1048

Capscrew (with Window Washer option) Hex, 1/4"-28 x 1 1/2", G5

1шт.

32

60-1145T91

WIPER BLADE

Assy

1шт.

2-4194T1

WIPER BLADE

1шт.

33

54-313

ARM

Wiper Arm

1шт.
