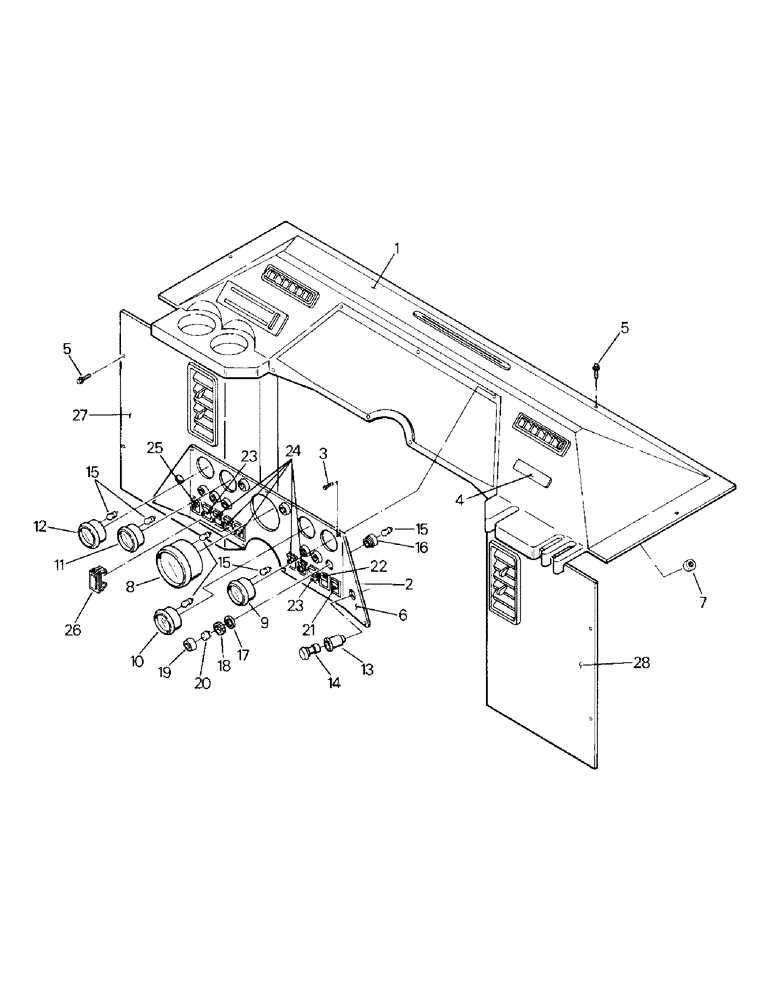

Запчасти Case IH KS-360 (01-15) - DASH & INSTRUMENTS (10) - CAB

1

54-390T1

CONSOLE

Dash (Includes: Ref. 7)

1шт.

2

1-7244T1

PANEL

Dash Panel

1шт.

3

19-1003

SELF-TAP SCREW,Flg Hd, #8 x 1/2"

Self-Tapping Screw

7шт.

4

60-3475T1

SYMBOLS

Emblem

1шт.

5

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

10шт.

6

60-3477T1

DECAL

Woodgrain Decal

1шт.

7

1-6828

BOSS

7шт.

8

20-1511T1

KIT

Tachometer

1шт.

9

22-744T1

GAUGE

Engine Oil Press. Gauge

1шт.

10

20-1306T1

GAUGE

Engine Temp Gauge

1шт.

11

1-8609

GAUGE

Fuel Gauge

1шт.

12

22-743T1

GAUGE

Voltmeter (22-743)

1шт.

Superseded, old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

13

22-728

COUNTER

Lighter Receptacle

1шт.

14

22-727

KNOB

Lighter Plug

1шт.

15

22-717

LAMP

Bulb

13шт.

These quantities increase by one with the diff lock option

1шт.

16

22-716

HOUSING

these quantities increase by one with the diff lock option

8шт.

These quantities increase by one with the diff lock option

1шт.

17

22-725

LOCK WASHER

Washer, these quantities increase by one with the diff lock option

8шт.

These quantities increase by one with the diff lock option

1шт.

18

22-715

NUT

these quantities increase by one with the diff lock option

8шт.

These quantities increase by one with the diff lock option

1шт.

19

22-714

SHROUD

Lens Shroud, these quantities increase by one with the diff lock option

8шт.

These quantities increase by one with the diff lock option

1шт.

20

22-721

LENS

- Trans Oil Press.

1шт.

These quantities increase by one with the diff lock option

1шт.

22-720

LENS

- Trans Oil Temp

1шт.

22-718

LENS

- Engine Water Temp

1шт.

22-722

LENS

- Park Brake

1шт.

22-719

LENS

- Engine Oil Press.

1шт.

22-723

LENS

- Headlamp Indicator

1шт.

22-724

LENS

- Turn Signal Indicator

2шт.

20-1993T1

LENS

- Green (Diff Lock)

1шт.

21

1-8582

SWITCH

master, Serial Range: -3057

1шт.

P/N 1-8582 can be used ASN 3057, it has an extra terminal that is no longer needed

1шт.

20-1091T2

SWITCH

master, Start Serial: 3057

1шт.

P/N 1-8582 can be used ASN 3057, it has an extra terminal that is no longer needed

1шт.

22

20-1091T2

SWITCH

- Field and Road Lights, Replaces 01-6152

1шт.

Superseded, old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Female plug for 20-1091T2 switch is Packard P/N 12052978 or Case P/N 245781C1

1шт.

23

1-6153

SWITCH

- Dash Lights (qty 2 with optional Rear Wiper)

1шт.

24

1-6150

SWITCH

- Dome Light, Sprayer & Implement Socket (qty 5 with optional Diff Lock & Extra Switch)

3шт.

25

1-6154

SWITCH

- Ether Start Aid

1шт.

26

60-3210T1

PLUG

(qty varies with options)

3шт.

27

54-400

SKIRT

(Left)

1шт.

28

33-295

SKIRT

(Right)

1шт.
