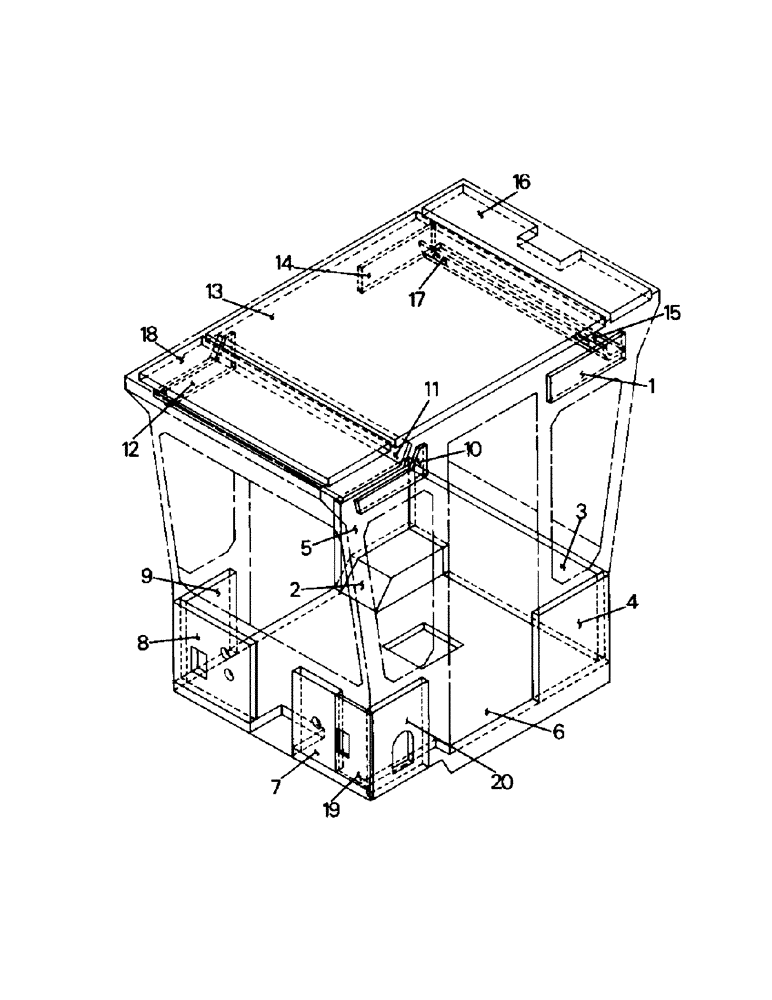

Запчасти Case IH KS-360 (01-04) - CAB INSULATION & VINYL (10) - CAB

1

1-8092

ISOLATOR

Left Upper Rear Insulation

1шт.

2

1-4565

CARPET

1шт.

3

1-3802

PANEL

Bottom Rear Insulation

1шт.

4

1-3803

PANEL

Left Lower Rear Insulation

1шт.

5

1-3801

PANEL

Right Lower Rear Insulation

1шт.

6

60-2009T2

FLOOR MAT

Floormat

1шт.

7

1-3533T2

ISOLATOR

Wrap-A-Round Insulation

1шт.

8

1-4562T1

ISOLATOR

Wrap-A-Round Insulation

1шт.

9

54-348

ISOLATOR

Front Right Side Insulation

1шт.

10

1-8719

ISOLATOR

Left Upper Front Insulation

1шт.

11

1-8109

INSULATOR

Console Insulation

1шт.

12

1-8718

INSULATOR

Right Upper Front Insulation

1шт.

13

1-8104

ISOLATOR

Headliner Insulation

1шт.

14

1-8103

ROOF LINING

Right Upper Rear Insulation

1шт.

15

1-8110

ISOLATOR

Rear Insulation

1шт.

16

1-8112

ISOLATOR

Top Rear Insulation

1шт.

17

1-8111

ROOF LINING

Speaker Insulation

2шт.

18

1-8108

INSULATOR

Top Front Insulation

1шт.

19

25-1005

ISOLATOR

Module Front Insulation

1шт.

20

1-8612

ISOLATOR

Module Side Insulation

1шт.

1-9839

ISOLATOR

Steering Control Valve Insulation (not shown)

1шт.

27-1

ADHESIVE

(1 gal.) (not shown)

1шт.
