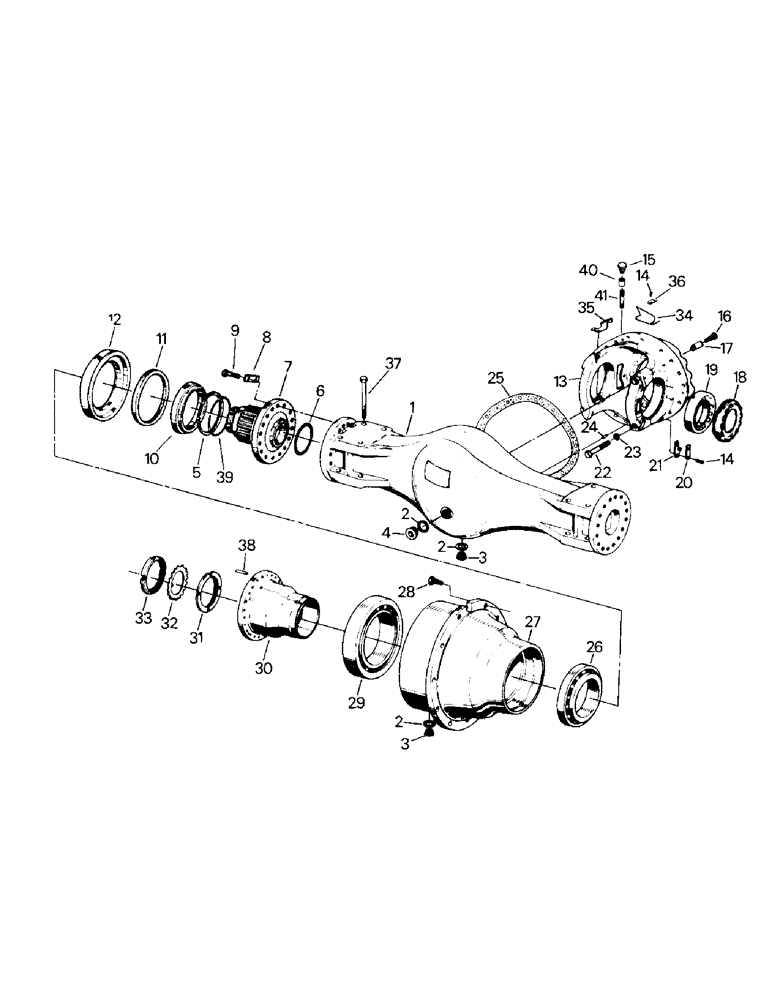

Запчасти Case IH KS-325 (04-37) - AXLE ASSEMBLY, K598.20/30 (04) - Drive Train

1-6168

AXLE, FRONT

Front Axle Assy

1шт.

1-6167

AXLE, REAR

Rear Axle Assy

1шт.

1-8315

Axle Sub-Assy (Includes: Refs. Nos. 1-4, 6-9, 24 & 31-33)

1шт.

1

16-1500

Axle Housing

1шт.

2

Not used on this model

1шт.

3

90-4484T1

PLUG

Magnetic Plug

3шт.

4

90-2523T1

PLUG

1шт.

5

1-8670

SEALING RING

Sealing Ring

2шт.

6

16-1505

O-RING,136mm ID x 15mm Width

2шт.

7

16-1506

AXLE

Stub

2шт.

8

16-1507

WASHER

Locking Washer

16шт.

9

16-1508

SCREW,Hex, M20 x 1.5 x 60mm, Cl 10.9

Hexagon Screw

32шт.

10

1-8316

OIL SEAL

Shouldering Ring

2шт.

35-1589T91

SEAL KIT

& Retainer Kit (repl 16-1510 Seal & 16-1511 Seal Case), Includes: Ref. 12

2шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

12

16-1511

CASE

Sealing Case

2шт.

13

16-1512

GEAR

Differential Housing Assy (Includes: Refs. Nos. 22 & 23)

1шт.

16-1513

Dowel (not shown) Includes: Ref. No. 13)

2шт.

14

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

Hexagon Screw

6шт.

15

1-1359

BREATHER

Threaded Vent

1шт.

16

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

Hexagon Screw

18шт.

17

16-1520

WASHER

Locking Washer

12шт.

16-1521

WASHER

Locking Washer

6шт.

18

16-1522

SLOTTED NUT

Clamping Ring

2шт.

19

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

Tapered Roller Bearing

2шт.

20

16-1524

LARGE PLATE

Locking Washer

2шт.

21

16-1525

LARGE PLATE

Nose-Type Locking Washer

2шт.

16-1526

LARGE PLATE

Nose-Type Locking Washer

2шт.

16-1527

LARGE PLATE

Nose-Type Locking Washer

2шт.

22

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

Hexagon Screw

2шт.

23

16-1529

WASHER

Spring Washer

2шт.

24

16-1530

DOWEL

Pin

1шт.

25

16-1531

GASKET

Differential Case Gasket

1шт.

26

16-1532

TAPERED BEARING,170 mm ID x 260 mm OD x 57 mm

2шт.

27

16-1533T91

HUB

Wheel Hub (Includes: Refs. Nos. 2 & 3)

2шт.

28

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

Lug Bolt

20шт.

19-2975

WASHER

(used w/Lug Bolt) (not shown)

20шт.

29

16-1535

TAPERED BEARING,220 mm ID x 340 mm OD x 76 mm

2шт.

30

1-8318

Ring Gear Support II

2шт.

31

16-1537

NUT

Shaft End Nut I

2шт.

32

16-1538

LOCK WASHER

Locking Washer

2шт.

33

16-1539

NUT

Shaft End Nut II

2шт.

34

16-1515

Oil Baffling Plate (Front)

1шт.

16-1540

Oil Baffling Plate (Rear)

1шт.

35

16-1184

PLATE

Baffle Plate (Front)

1шт.

16-1541

PLATE

Baffle Plate (Rear)

1шт.

36

16-1542

WASHER

Locking Washer

2шт.

37

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

Axle Bolt

8шт.

19-859

LOCK NUT

Axle Bolt Nut

8шт.

38

16-1514

DOWEL

Pin

8шт.

39

1-8317

OIL SEAL

Circlip

2шт.

40

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

Coupling

1шт.

41

31-1841

CONDUIT

Nipple

1шт.
