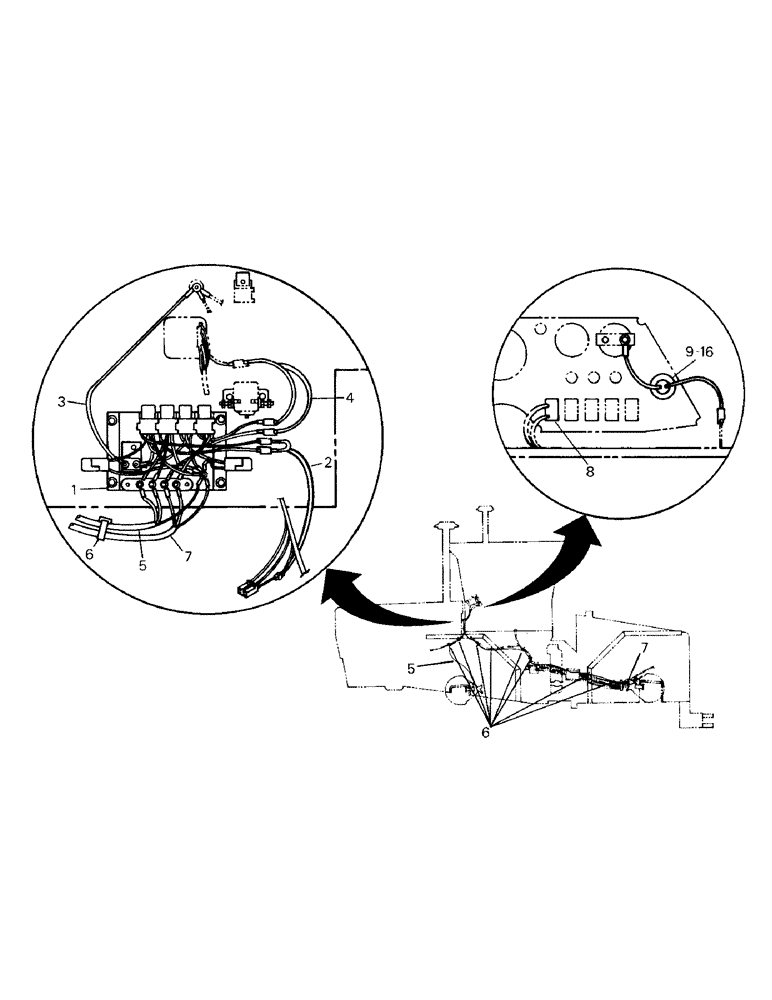

Запчасти Case IH KS-325 (04-35) - CONTROLLED TRACTION ELECTRICAL (04) - Drive Train

1

Instrumentation Group, see following Figure

1шт.

2

20-1991T2

HARNESS

Wire

1шт.

3

20-1990T1

Wire

1шт.

4

20-1992T1

Wire

1шт.

5

20-1960T1

Front Diff Harness, with new style Elactric Shifter,Figure 04-34

1шт.

20-1931T1

Front Diff Harness, with old style Electric Shifter, Figure 04-33

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, (Ty Rap) 3/16" x 7 1/4"

9шт.

7

20-1961T1

Rear Diff Harness, with new style Electric shifter, Figure 04-34

1шт.

20-1932T1

Rear Diff Harness, with old style Electric Shifter, Figure 04-33

1шт.

8

1-6150

SWITCH

Rocker Switch

1шт.

9

20-1994T1

Lamp Socket Assy

1шт.

10

22-717

LAMP

Bulb (#1893)

1шт.

11

20-1995T1

DECAL

Diff Lock Decal

1шт.

12

20-1993T1

LENS

(Green)

1шт.

13

22-715

NUT

1шт.

14

22-725

LOCK WASHER

Lock Washer

1шт.

15

22-716

HOUSING

1шт.

16

22-714

SHROUD

Lens Shroud

1шт.
