Запчасти Case IH KS-325 (04-24) - TRANSFER CASE COOLING SYSTEM, CAT 3406 ENGINE (04) - Drive Train

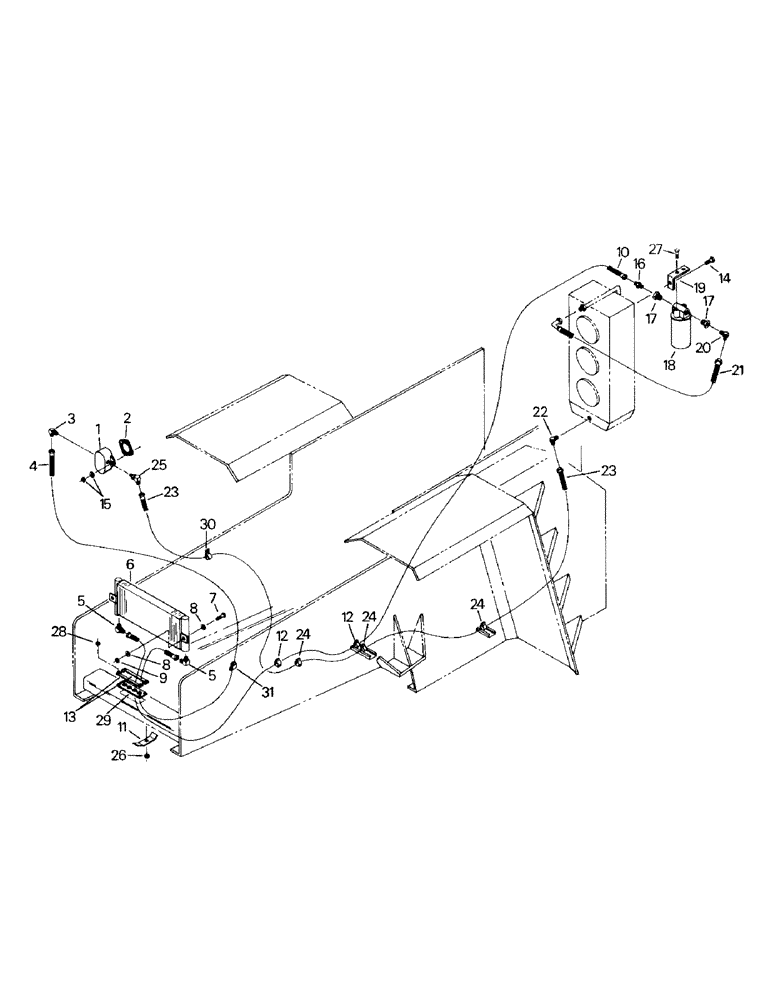

Схема запчастей Case IH KS-325 - (04-24) - TRANSFER CASE COOLING SYSTEM, CAT 3406 ENGINE (04) - Drive Train
26
12
16
13
5
22
11
30
12
19
24
4
21
25
24
7
14
24
20
31
10
5
27
23
28
8
18
2
3
17
6
8
1
9
29
15
17
23

Артикул

Название

Примечание

Количество

1

Lube Pump (Fig. 4-26)

1шт.

2

18-1175

GASKET

1шт.

3

31-2357

ADAPTER

Elbow (10)

1шт.

4

31-1522

HOSE

1шт.

5

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

2шт.

6

10-39

COOLER

Oil Cooler

1шт.

7

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

2шт.

8

19-107

WASHER

4шт.

9

19-341

LOCK NUT,3/8" - 16, GB

2шт.

10

31-2011

Hose

1шт.

11

51-243

HOLDER

Hose Clamp

1шт.

12

31-1212

CLAMP

2шт.

13

1-4628

Cover

2шт.

14

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew

1шт.

15

NSS

NOT SOLD SEPARAT

Nut & Washer (incl with engine)

1шт.

16

31-404

ROD, CONNECTING,3/4"-16, 37 Degree x 3/4"-14, NPTF

Fitting

1шт.

17

31-12

REDUCER

2шт.

18

18-501

FILTER

Assy

1шт.

18-502

FILTER CARTRIDGE

Element

1шт.

19

1-5009

Filter Bracket

1шт.

20

31-425

ELBOW,45 Degree, 3/4-14" NPTF x 3/4"-14, 37 Degree

1шт.

21

31-1533

HOSE

1шт.

22

31-410

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

1шт.

23

31-1524

HOSE

1шт.

24

31-1105

HOSE

Clamp

3шт.

25

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Adapter (16)

1шт.

26

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

27

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

2шт.

28

19-76

NUT,1/4"-20, G5

4шт.

29

1-4627

CAP

Dust Cap

1шт.

30

32-343

MOUNTING CLIP

Clamp

1шт.

31

32-302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 32
