Запчасти Case IH KS-325 (04-15) - TRANSMISSION AND ATTACHING PARTS (04) - Drive Train

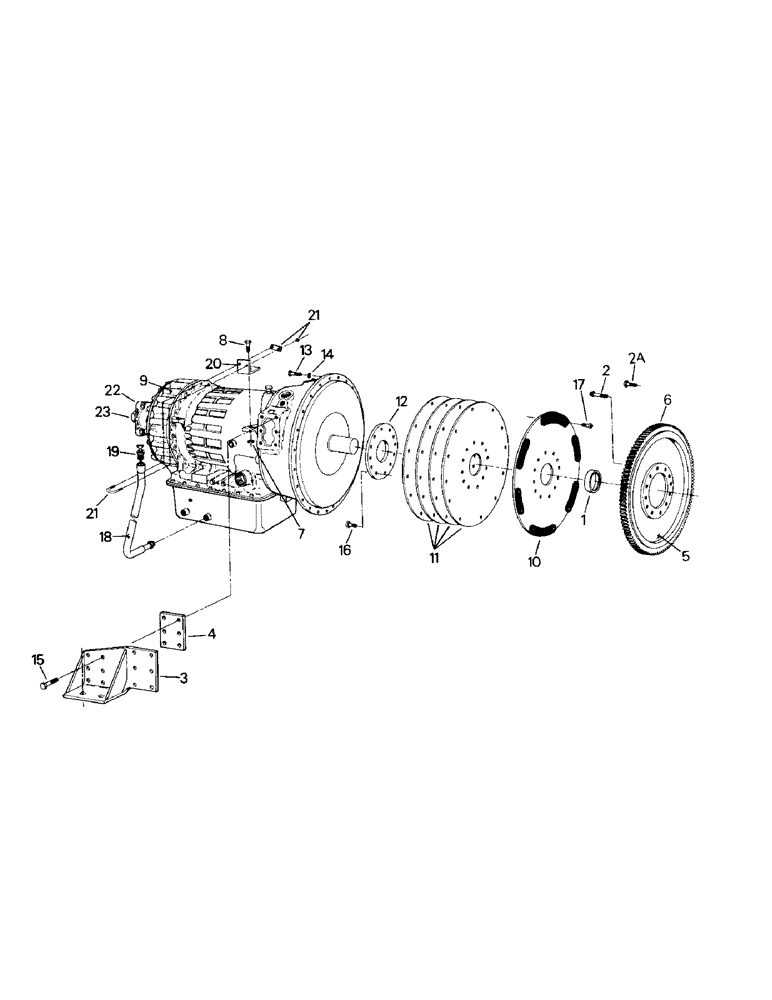

Схема запчастей Case IH KS-325 - (04-15) - TRANSMISSION AND ATTACHING PARTS (04) - Drive Train
14
2a
9
5
4
8
16
1
22
3
10
6
13
18
15
2
11
17
20
21
19
7
21
13
12

Артикул

Название

Примечание

Количество

1

90-1074T1

BUSHING

(Cat P/N 7N6114)

1шт.

Cummins 855 engine only

1шт.

2

19-1904

12 PT SCREW,Flg, 5/8" - 18 x 2 1/4", Gr 8

Capscrew, 12-Pt Socket Hd

12шт.

Cat 3406 engine

1шт.

2a

NAP

Capscrew, (Cummins P/N 120448)

1шт.

3

Engine/Trans Mts (Figs. 4-1 & 4-2)

1шт.

4

2-2907T1

LARGE PLATE

Spacer

2шт.

NAP

Flywheel Assy (Cat P/N 6N9667),Includes: Ref. 5 and 6

1шт.

Cat 3406 engine

1шт.

NAP

Flywheel Assy (Allison P/N 6884588)

1шт.

Cummins 855 engine only

1шт.

5

90-1076T1

FLYWHEEL

(Cat P/N 6N9657)

1шт.

Cat 3406 engine

1шт.

NAP

Flywheel (Allison P/N 6883925)

1шт.

Cat 3406 engine

1шт.

6

NAP

Gear (Cat P/N 4N2514)

1шт.

Cat 3406 engine

1шт.

NAP

Gear (Allison P/N 6752502)

1шт.

7

19-81

NUT,1/2"-13, G5

1шт.

Cummins 855 engine only

1шт.

8

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

Capscrew

1шт.

9

90-2387T91

Trans Assy

1шт.

Cummins 855 engine only

1шт.

90-2450T91

Trans Assy

1шт.

Cat 3406 engine

1шт.

10

90-1078T91

PLATE

Flex Plate (Allison P/N 6751516)

1шт.

11

90-1079T1

PLATE

Flex Disc (Allison P/N 6750468)

1шт.

12

90-1080T1

PLATE

Wear Plate (Allison P/N 6753364)

1шт.

13

19-371

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

Capscrew

24шт.

Cummins 855 engine only

1шт.

19-36

SCREW,Hex, 7/16" - 14 x 2 1/4", Gr 5

Capscrew

24шт.

Cat 3406 engine

1шт.

14

19-118

LOCK WASHER,7/16"

7/16"

24шт.

15

19-494

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Capscrew

12шт.

Cummins 855 engine only

1шт.

19-760

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

Capscrew

12шт.

Cat 3406 engine

1шт.

16

9409058

Capscrew

12шт.

17

138307

Socket Head Screw Hex Soc Hd, 1/2"-20 x 1"

12шт.

18

90-1358T1

TUBE,.75"-1.125" OD

Assy

1шт.

19

1-9670

DIPSTICK

1шт.

20

90-1161T1

BRACKET

1шт.

21

19-152

U-BOLT

1шт.

22

2-1443T1

FORK

Trans Yoke, Replaces 02-1443

1шт.

Superseded, old P/N is not used any longer; the new P/N is to be used in ALL cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

23

NAP

Nut (Allison part)

1шт.

Выбрано товаров: 46
