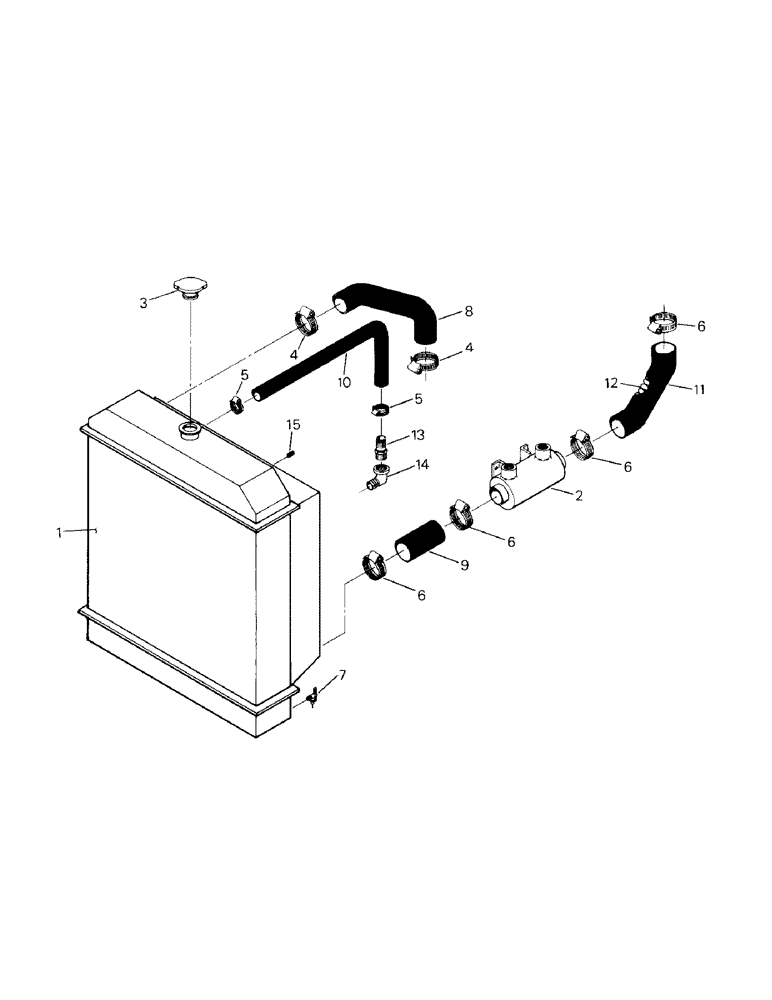

Запчасти Case IH KS-325 (04-13) - RADIATOR & HOSES, CAT 3406 ENGINE (04) - Drive Train

1

Radiator Assy (Fig. 4-14)

1шт.

2

1-8250

COOLER

Oil Cooler

1шт.

3

10-21

CAP

Radiator Cap

1шт.

4

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

Clamp

2шт.

5

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

Clamp

2шт.

6

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

Clamp

4шт.

7

31-159

COCK, DRAIN

Drain Cock

1шт.

8

31-1492

RADIATOR HOSE,2.50" ID x 20.00", SAE 20R4 CLASS D1

2.50" ID x 20.00", SAE 20R4 CLASS D1

1шт.

9

31-1487

HOSE,3.00" ID x 4.00"

1шт.

10

31-2360

HOSE,1.00" ID x 44.00"

1шт.

11

31-1495

RADIATOR HOSE,3.00" ID x 9.88", SAE 20R4 CLASS D1

3.00" ID x 9.88", SAE 20R4 CLASS D1

1шт.

12

31-1717

SPRING

1шт.

13

31-318

HOSE

Barbed Fitting

1шт.

14

31-21

ELBOW

Street Elbow

1шт.

15

31-37

PLUG

Pipe Plug

2шт.
