Запчасти Case IH KS-325 (04-12) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train

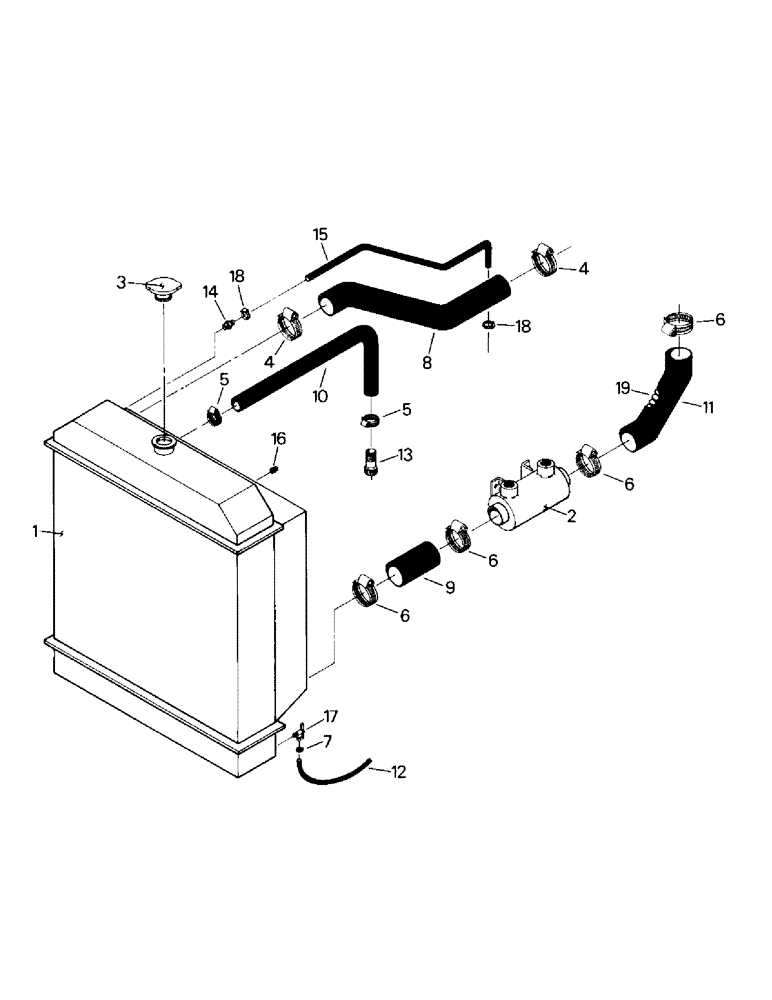

Схема запчастей Case IH KS-325 - (04-12) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train
9
7
18
12
15
13
4
6
17
2
4
8
19
18
5
6
6
6
5
16
11
10
1
14
3

Артикул

Название

Примечание

Количество

1

RADIATOR ASSY., Figure 04-14

1шт.

2

1-8250

COOLER

Oil Cooler

1шт.

3

10-21

CAP

Radiator Cap

1шт.

4

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

Clamp

2шт.

5

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

Clamp

2шт.

6

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

Clamp

4шт.

7

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

Clamp

1шт.

8

31-1543

RADIATOR HOSE

1шт.

9

31-1487

HOSE,3.00" ID x 4.00"

1шт.

10

31-1509

HOSE,1.00" ID x 40.00"

1шт.

11

31-1544T1

RADIATOR HOSE

1шт.

Superseded, old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

Hose includes a non removeable spring while 31-5144 does not and requires Ref. 19

1шт.

12

1-3811

HOSE

1шт.

13

31-248

FITTING

King Nipple

1шт.

14

31-137

FITTING

Barbed Fitting

1шт.

15

32-336

HOSE

1шт.

16

31-37

PLUG

Pipe Plug

1шт.

17

31-159

COCK, DRAIN

Drain Cock

1шт.

18

32-29

HOSE CLAMP

Clamp

2шт.

19

31-1719

Spring

1шт.

Hose includes a non removeable spring while 31-5144 does not and requires Ref. 19

1шт.

19-135

CABLE TIE

Ty Rap, not shown

2шт.

Выбрано товаров: 23
