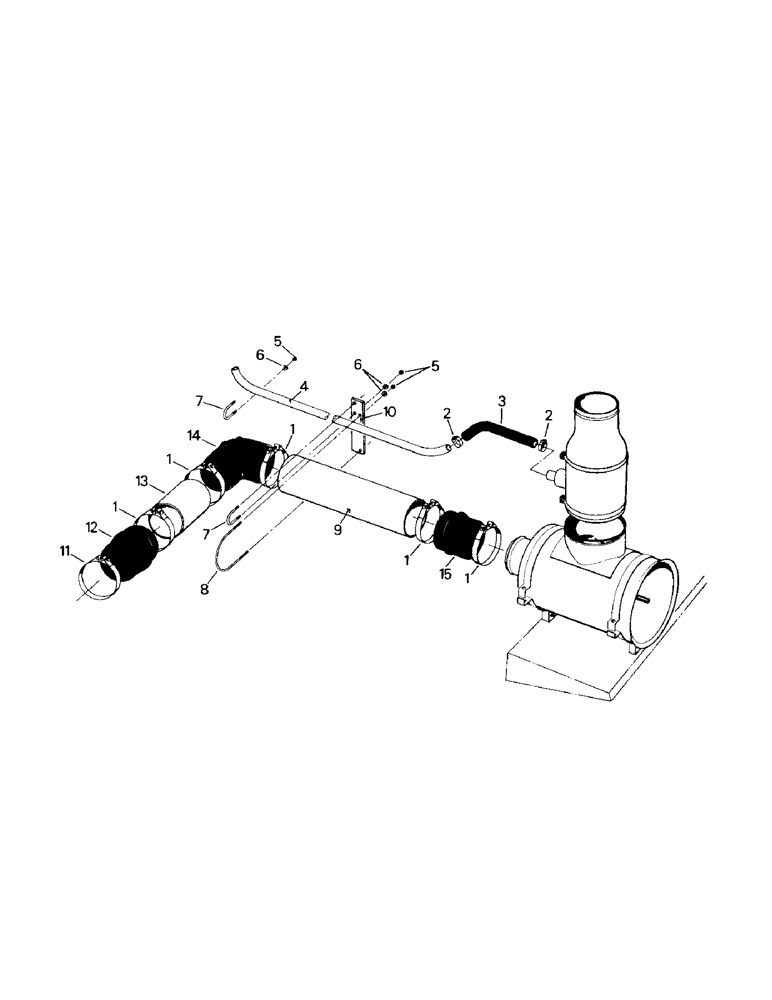

Запчасти Case IH KS-325 (04-09) - AIR INTAKE SYSTEM (04) - Drive Train

1

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

5шт.

2

31-1283

MOUNTING CLIP

Clamp

2шт.

3

90-3879T1

Hose

1шт.

4

1-4081

TUBE,2" OD, 35.41" Length

Aspirator Tube

1шт.

5

19-77

NUT,5/16"-18, G5

8шт.

6

19-700

WASHER,5/16"

8шт.

7

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

3шт.

8

44-28

U-Bolt

1шт.

9

90-3973T1

TUBE,6" OD x 24.98" L

1шт.

10

90-1069T1

Intake Bracket

1шт.

Bracket mounting arrangement shown in this illustration is for the Cat 3406 engine. For the Cummins 855 engine the same parts are used, but the bracket mounting arrangement is slightly different.

1шт.

11

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

1шт.

Use on Cat 3406 engine, 280 and 325 HP

1шт.

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

1шт.

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

1шт.

Use on Cummins 855 engine

1шт.

12

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Reducer 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

Use on Cat 3406 engine, 280 and 325 HP

1шт.

9-17

ADAPTER

Hose Reducer

1шт.

Use on Cat 3406 engine 360 HP

1шт.

9-76

HOSE,6.00" ID x 6.00"

Reducer 6.00" ID x 6.00"

1шт.

Use on Cummins 855 engine

1шт.

13

45-246

TUBE

1шт.

Use on Cat 3406 engine, 280 and 325 HP

1шт.

2-3246T1

Tube

1шт.

Use on Cummins 855 engine

1шт.

14

9-22

ELBOW

1шт.

15

9-17

ADAPTER

Hose Reducer

1шт.
