Запчасти Case IH KS-325 (04-04) - ETHER START AID (04) - Drive Train

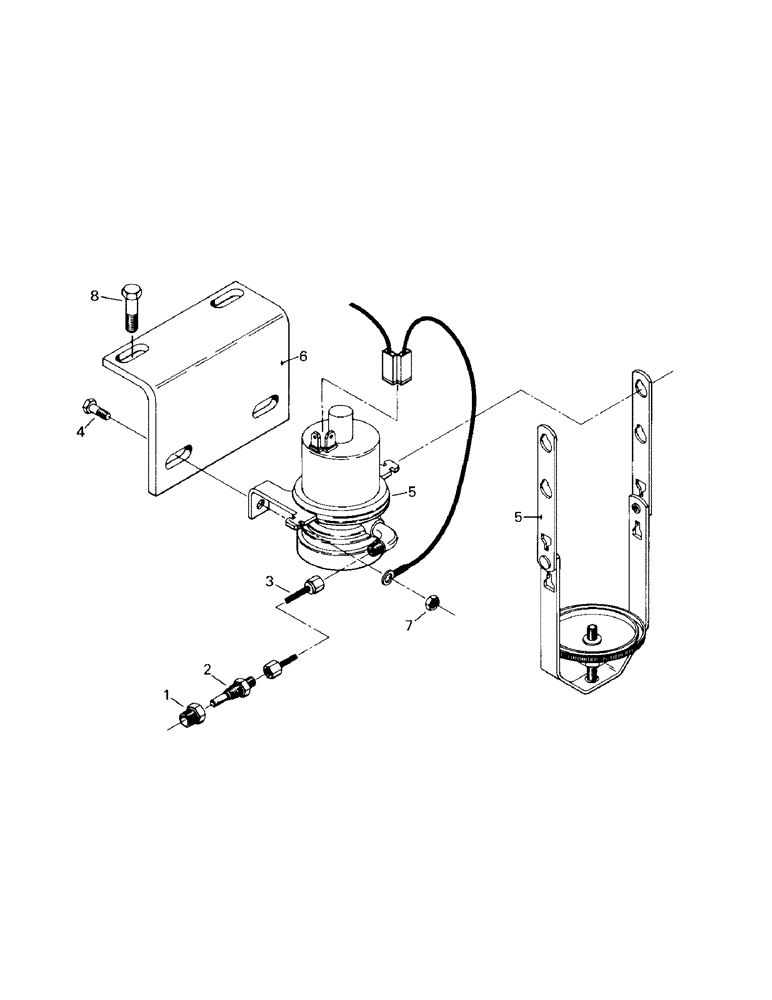

Схема запчастей Case IH KS-325 - (04-04) - ETHER START AID (04) - Drive Train
5
7
1
3
6
5
2
4
8

Артикул

Название

Примечание

Количество

1

31-15

REDUCER,1/4"-18 Male NPTF x 1/8"-27 Female NPTF

(Cat engine only)

1шт.

2

6-1603

JET

Atomizer

1шт.

3

31-1347

TUBE,0.125" OD, 24" Length

Tubing (Cummins Engine)

1шт.

1-6104

TUBE,16" Length

Tubing (Cat Engine)

1шт.

4

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew

2шт.

5

6-1600

SOLENOID

Assy

1шт.

6

6-1604

BRACKET

(Cummins engine) (Cat uses Water Filter Bracket Fig. 4-3

1шт.

7

19-77

NUT,5/16"-18, G5

2шт.

8

NAP

Capscrew (existing engine hardware)

2шт.

9

1-1392

FLUID

Ether Start Fluid (can not shown)

1шт.

Выбрано товаров: 10
