Запчасти Case IH KS-325 (04-03) - WATER FILTER & MOUNTING, CAT 3406 ENGINE (04) - Drive Train

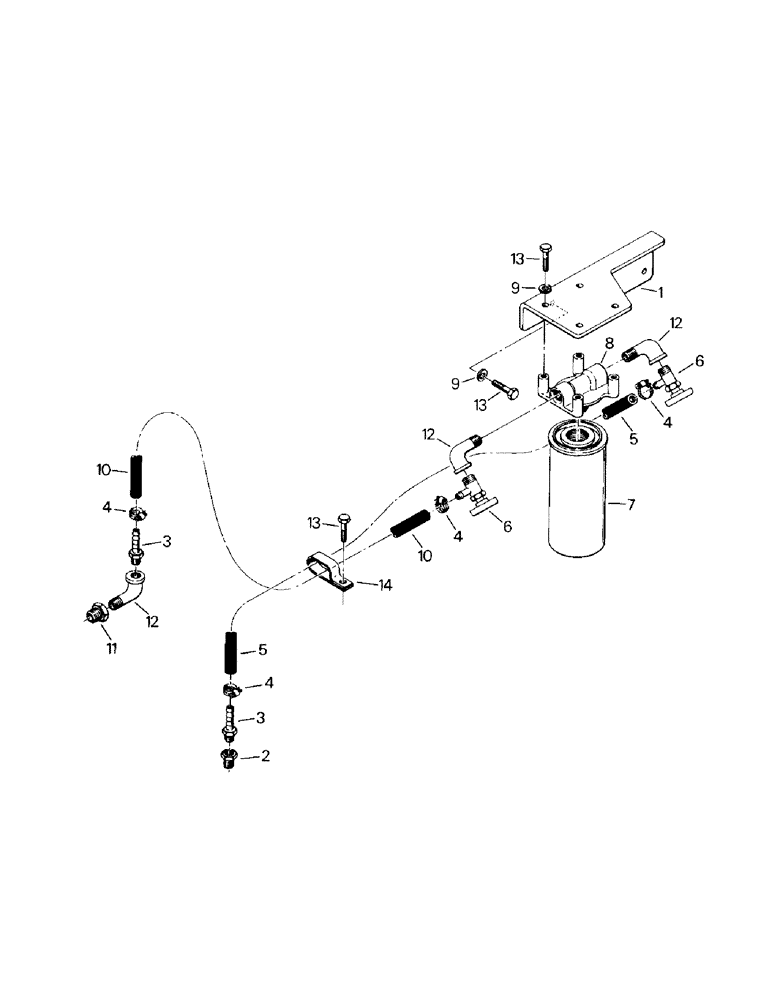

Схема запчастей Case IH KS-325 - (04-03) - WATER FILTER & MOUNTING, CAT 3406 ENGINE (04) - Drive Train
14
8
12
11
6
4
13
3
4
9
9
10
3
13
5
10
12
5
13
7
4
12
2
1
6
4

Артикул

Название

Примечание

Количество

1

90-3857T1

BRACKET

Filter Base Bracket

1шт.

2

31-178

BUSHING

Reducer

1шт.

3

31-218

CONNECTING ROD

Barbed Fitting

2шт.

4

32-29

HOSE CLAMP

Clamp

4шт.

5

31-1691

FUEL HOSE

Hose

1шт.

6

1-1610

VALVE

2шт.

7

28-31

FILTER

Element

1шт.

The precharged filter element should only be used when the cooling system has been flushed or drained and new coolant added.

1шт.

1-7834

FILTER

Element (Precharged)

1шт.

8

1-1612

HEAD

Filter Base

1шт.

9

19-117

LOCK WASHER,3/8"

3/8"

6шт.

10

31-2308

HOSE,0.38" ID x 48.00"

1шт.

11

31-351

BUSHING

Reducer

1шт.

12

31-219

ELBOW

Street Elbow

3шт.

13

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

7шт.

14

31-1070

CLAMP,5/8", 3/8" Bolt, Double

1шт.

15

19-134

CABLE

Ty Rap (not shown)

2шт.

Выбрано товаров: 17
