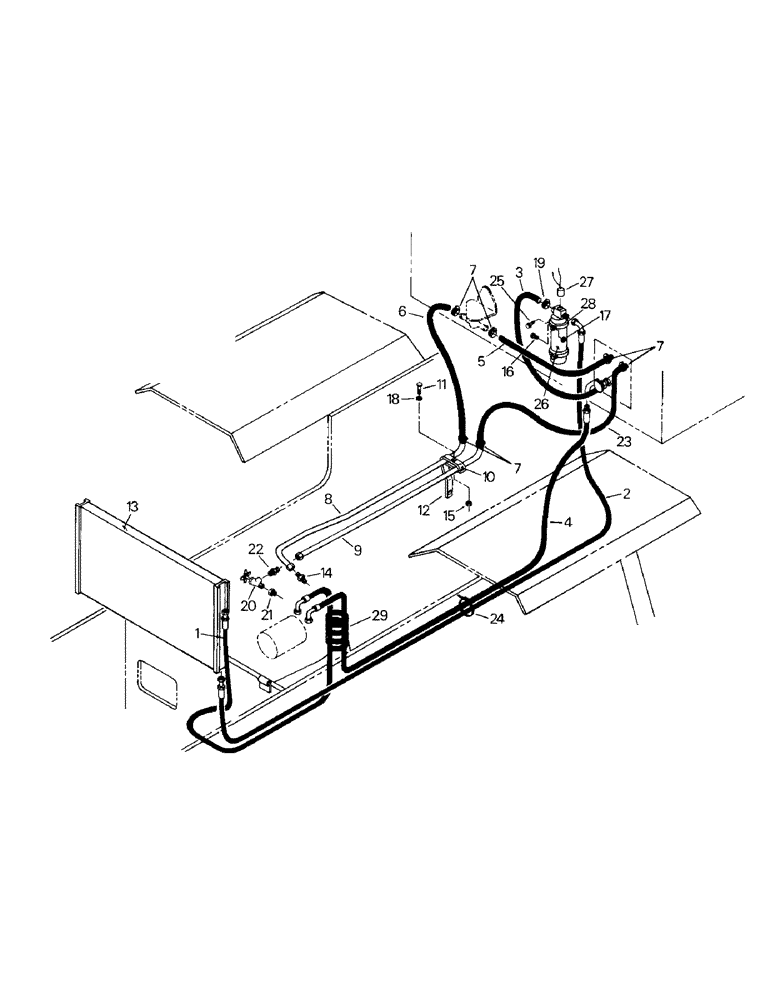

Запчасти Case IH KS-325 (03-07) - A/C & HEATER PLUMBING, CAT 3406 ENGINE (03) - Climate Control

1

31-1245

HOSE

1шт.

2

31-1519

HOSE ASSY.

Hose

1шт.

3

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A

1шт.

4

31-1299

HOSE

1шт.

5

31-1352

HOSE,0.63" ID x 16.00"

1шт.

6

31-1067

HOSE,0.63" ID x 36.00"

0.63" ID x 36.00"

1шт.

7

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

6шт.

8

25-1026

Tube

1шт.

9

1-6867

Tube 0.625" OD

1шт.

10

32-1000

CLAMP

1шт.

11

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew

1шт.

12

25-1027

Bracket

1шт.

13

2-3370T1

CONDENSER

1шт.

14

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

Connector

1шт.

15

19-1081

LOCK NUT

Lock Nut

1шт.

16

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 UNC x 1-1/4

2шт.

Ref. 28 was revised approx. Nov 84 to use 5/16 hardware, Ref 16 and 17

1шт.

16

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 UNC x 1-1/4

2шт.

Ref. 28 was revised approx. Nov 84 to use 5/16 hardware. Ref. 16 & 17

1шт.

19-9

BOLT,5/16" - 18 x 2", Gr 5

Capscrew, 5/16 UNC x 2

1шт.

Ref. 28 was revised approx. Nov 84 to use 5/16 hardware. Ref. 16 & 17

1шт.

17

19-5381

NUT

1/4 UNC

2шт.

Ref. 28 was revised approx. Nov 84 to use 5/16 hardware. Ref. 16 & 17

1шт.

19-5777

LOCK NUT

Lock Nut, 5/16 UNC

1шт.

Ref. 28 was revised approx. Nov 84 to use 5/16 hardware. Ref. 16 & 17

1шт.

18

19-106

WASHER,5/16", SAE

2шт.

19

25-48

HOSE CLAMP

Clamp

1шт.

20

31-1275

SHUT-OFF VALVE

Truck Valve

1шт.

21

31-13

BUSHING

Reducer

1шт.

22

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

Connector

1шт.

23

31-1295

HOSE,0.63" ID x 46.00"

1шт.

24

19-135

CABLE TIE

Ty Rap

3шт.

25

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

2шт.

26

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

27

25-1002

SWITCH

(Low Pressure)

1шт.

28

1-8563

CLAMP BRACKET

Bracket, was revised approx. Nov 84 to use 5/16 hardware, Ref 16 and 17

2шт.

29

60-4440T1

SLEEVE

1шт.
