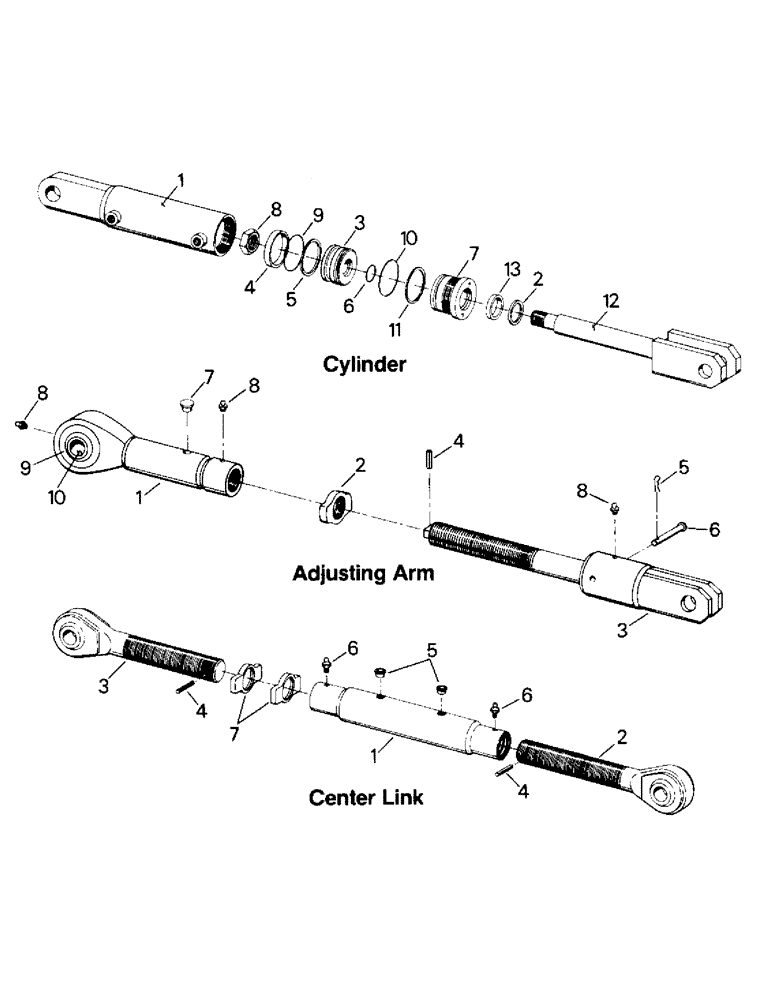

Запчасти Case IH KS-325 (10-02) - 3-PT HITCH COMPONENTS Options & Miscellaneous

50-1058T91

CYLINDER

Assy, Includes: Seal Kit and Ref. Nos. 1-13

1шт.

35-1336T91

SEAL KIT

Kit (incl Ref. 2, 4, 5, 6, 9, 11 & 13)

1шт.

1

50-1065T1

Shell

1шт.

2

1-9859T1

WIPER SEAL

Wiper

1шт.

3

1-9815T1

PISTON

1шт.

4

1-9854T1

RING

Wear Ring

1шт.

5

1-9855T1

RING, PISTON

Piston Seal

1шт.

6

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-Ring

1шт.

7

50-1057T1

CYLINDER END CAP

Rod Guide

1шт.

8

19-5582

LOCK NUT

Lock Nut

1шт.

9

1-9856T1

O-RING,4.487" ID x 0.103" Width

1шт.

10

1-9852T1

O-RING,4.6" ID x 0.21" Width

O-Ring

1шт.

11

1-9853T1

SEALING WASHER,118.19mm ID x 127.48mm OD x 1.93mm Thk

Backup Washer

1шт.

12

1-9817T1

Rod

1шт.

13

1-9858T1

SEAL

1шт.

40-373T91

ARM ASSY.

Adjusting Arm Assy, Includes: Ref. Nos. 1-10

1шт.

1

40-372

ARM

Adjusting Arm (Top), (incl Ref. 9 & 10)

1шт.

2

40-109

LOCK NUT

1шт.

3

40-375T1

ARM ASSY.

Adjusting Arm (Bottom)

1шт.

4

19-786

PIN

Coil Spring Pin

1шт.

5

19-358

PIN

Hair Pin

1шт.

6

40-322

PIN

Float Pin

1шт.

7

18-1292

PLUG

Plastic Plug

2шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

9

40-139

HOUSING

Uniball Housing

2шт.

10

40-141

Uniball

1шт.

NEED TO ORDER ASSY

1шт.

70-1836T91

UPPER LINK

Center Link Assy, Includes: Ref. Nos. 1-7

1шт.

1

2-3650T1

TUBE,1.5 - 3.125" OD, 13" Length

1шт.

2

70-1837T1

SOCKET

& Rod

1шт.

3

70-1838T1

Socket & Rod

1шт.

4

19-175

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

5

1-9116

CAP,Cap, .366" OD

Plastic Closure

4шт.

6

31-95

FITTING

Lube Fitting

2шт.

7

2-3651T1

LOCK NUT

2шт.
