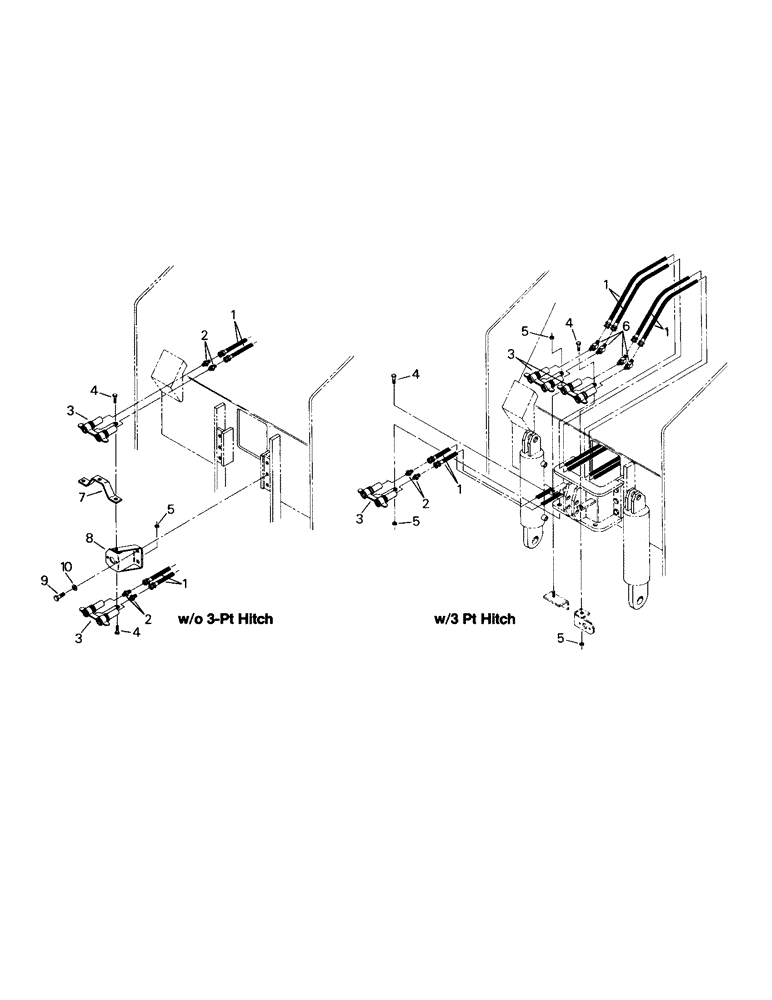

Запчасти Case IH KS-325 (08-18) - HYDRAULIC COUPLER MOUNTINGS (07) - HYDRAULICS

1

31-1308

HOSE ASSY.

Hose

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

2

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

Adapter, 10

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

3

Hyd Coupler, see Figure 08-19

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

4

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

Capscrew

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

5

19-82

LOCK NUT

Lock Nut

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

6

31-1410

ELBOW

Adapter, 10

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.

7

2-1857

Coupler Bracket, with 5 Spool Valve only

1шт.

8

2-1861

Coupler Mt., right

1шт.

2-1862

Coupler Mt., left

1шт.

9

19-331

BOLT,7/8" - 9 x 2", Gr 8

Capscrew

4шт.

10

19-180

WASHER, LOCK,7/8"

7/8"

4шт.

11

31-1410

ELBOW

Adapter, 10

1шт.

Quantities will vary depending on number of spools in Control Valve.

1шт.
