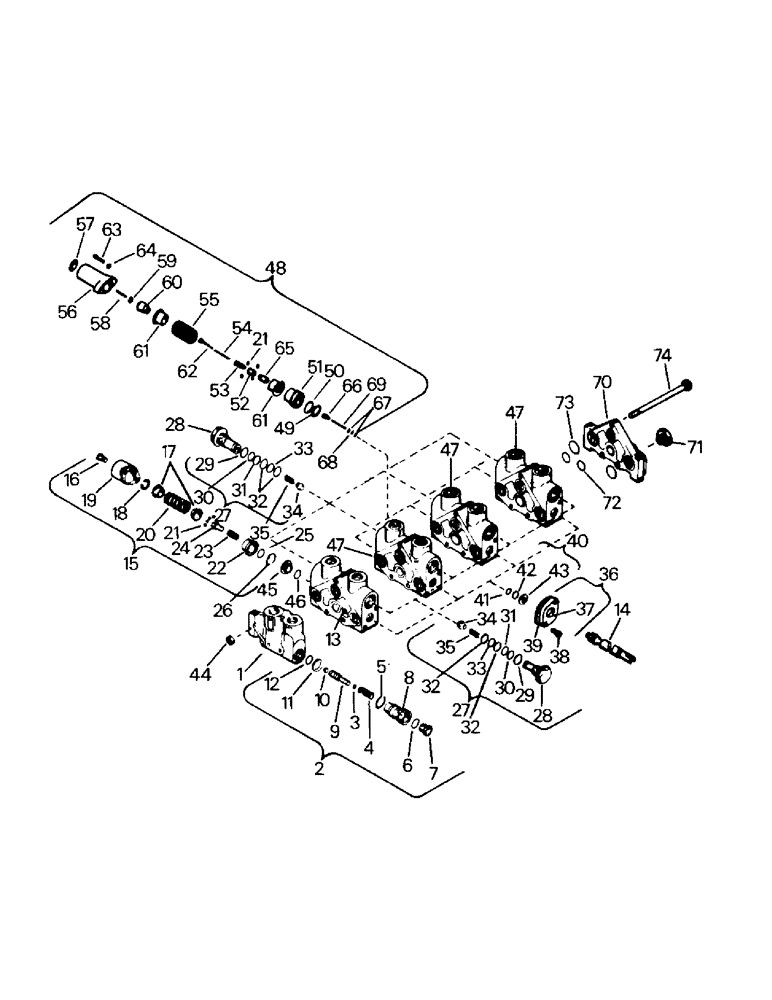

Запчасти Case IH KS-325 (08-15) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-1398T91

VALVE

Control Valve Assy (3-Spool)

1шт.

50-1396T91

VALVE

Control Valve Assy (4-Spool)

1шт.

50-1397T91

VALVE

Control Valve Assy (5-Spool)

1шт.

1

50-1977T91

PLATE

Cover Plate (Left) (Includes: Ref. No. 2)

1шт.

2

50-1978T91

ASSEMBLY

Relief Assy (Includes: Refs. Nos. 3-12)

1шт.

3

18-1509

SHIM

(.010)

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref.No. 78)

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref. No. 78)

1шт.

7

NSS

NOT SOLD SEPARAT

Relief Spring Cap

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve Body

1шт.

9

NSS

NOT SOLD SEPARAT

Poppet (Included in Ref. No. 77)

1шт.

10

NSS

NOT SOLD SEPARAT

Seal (Included in Ref. No. 77)

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer (Included in Ref. No. 78)

2шт.

12

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref. No. 18)

1шт.

13

50-1979T91

HYD VALVE SECTION

Float Section (Includes: Refs. Nos. 14, 15, 27, 36 & 40)

1шт.

14

NSS

NOT SOLD SEPARAT

Spool ( Refs. 13 & 47)

4шт.

15

50-1980T91

CAP ASSY.

Float Positioner Assy (Includes: Refs. Nos. 16-26)

1шт.

16

18-712

SCREW

2шт.

17

18-826

COLLAR ASSY.

Collar

2шт.

18

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Bonnet

1шт.

20

NSS

NOT SOLD SEPARAT

Centering Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Detent Ball

4шт.

22

NSS

NOT SOLD SEPARAT

Detent Sleeve

1шт.

23

NSS

NOT SOLD SEPARAT

Detent Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Detent Ball Follower

1шт.

25

NSS

NOT SOLD SEPARAT

Quad Ring Seal (Included in Ref. No. 76)

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref. 76)

1шт.

27

18-876

PLUG

Load Check Plug Assy (Includes: Ref. Nos. 28-35) (see Note)

8шт.

28

NSS

NOT SOLD SEPARAT

Lift Check Plug

8шт.

29

NSS

NOT SOLD SEPARAT

O-Ring (Included in Refs. Nos. 75 & 76)

8шт.

30

NSS

NOT SOLD SEPARAT

Backup Washer (Included in Refs. Nos. 75 & 76)

8шт.

31

NSS

NOT SOLD SEPARAT

O-Ring (Included in Refs . Nos. 75 76 & 79)

8шт.

32

NSS

NOT SOLD SEPARAT

Backup Washer (Included in Ref. Nos. 75, 76 & 79)

16шт.

33

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref. Nos. 75, 76 & 79)

8шт.

34

NSS

NOT SOLD SEPARAT

Lift Check Poppet

8шт.

35

NSS

NOT SOLD SEPARAT

Lift Check Spring

8шт.

36

18-1704

RETAINER

Spool Seal Retainer (Included in Ref. Nos. 37-39)

4шт.

37

NSS

NOT SOLD SEPARAT

Plate

4шт.

38

18-1702

SCREW

& Lock Washer

8шт.

39

NSS

NOT SOLD SEPARAT

Plate

4шт.

40

18-878

SEAL

Assy (Includes: Refs. 41-43 & 76

4шт.

41

NSS

NOT SOLD SEPARAT

Seal (Included in Ref. 76)

4шт.

42

NSS

NOT SOLD SEPARAT

Backup Washer Included in Ref. No. 76)

4шт.

43

NSS

NOT SOLD SEPARAT

Seal Retainer (Included in Ref. 76)

4шт.

44

18-909

LOCK NUT

Nut

3шт.

45

18-895

LARGE PLATE

Plate

3шт.

46

NSS

NOT SOLD SEPARAT

O-Ring (Included in Refs. 76 & 80)

3шт.

47

50-1981T91

HYD VALVE SECTION

Knockout Section (Included in Refs. Nos. 14, 27, 36, 40 & 48) (see Ref. 79)

3шт.

48

50-2038T91

LEVER

Knockout Positioner Assy (see Ref. No.80)

3шт.

49

NSS

NOT SOLD SEPARAT

O-Ring (Included in Ref. No. 80)

3шт.

50

NSS

NOT SOLD SEPARAT

Backup Ring (Included in Ref. No. 80)

3шт.

51

NSS

NOT SOLD SEPARAT

Detent Sleeve

3шт.

52

NSS

NOT SOLD SEPARAT

Ball Follower

3шт.

53

NSS

NOT SOLD SEPARAT

Spring

3шт.

54

NSS

NOT SOLD SEPARAT

Spring

3шт.

55

NSS

NOT SOLD SEPARAT

Spring

3шт.

56

NSS

NOT SOLD SEPARAT

Bonnet

3шт.

57

2-3815T1

PLUG

Button Plug

3шт.

58

NSS

NOT SOLD SEPARAT

Set Screw

3шт.

59

NSS

NOT SOLD SEPARAT

Lock Nut

3шт.

60

NSS

NOT SOLD SEPARAT

Spool Collar

3шт.

61

NSS

NOT SOLD SEPARAT

Spring Collar

6шт.

62

NSS

NOT SOLD SEPARAT

Spring Guide

3шт.

63

NSS

NOT SOLD SEPARAT

Screw

6шт.

64

NSS

NOT SOLD SEPARAT

Bearing Plate

6шт.

65

NSS

NOT SOLD SEPARAT

Knockout Plunger

3шт.

66

NSS

NOT SOLD SEPARAT

Piston Guide

3шт.

67

NSS

NOT SOLD SEPARAT

Backup Ring (Included in Ref. No. 80)

6шт.

68

NSS

NOT SOLD SEPARAT

O-Ring Included in Ref. No. 80)

3шт.

69

NSS

NOT SOLD SEPARAT

Needle Roller

3шт.

70

50-1188T1

LARGE PLATE

Cover Plate (Right) Includs: Ref. No. 71)

1шт.

71

31-1594

PLUG,Hex Hd, 1 3/16"-12 ORB

(14) (see Note)

1шт.

72

2-2861

O-RING

(Included in Refs. 76 & 81)

10шт.

73

2-2862

O-RING

(Included in Refs. 76 & 81)

10шт.

74

18-1037

STUD,Flg, 3/8" x 9 1/2"

Capscrew (3 & 4-Spool Valves)

3шт.

18-1038

STUD,3/8" - 24 x 11.50"

Capscrew (5-Spool Valve)

3шт.

75

2-4786T1

SEAL KIT

Kit (Load Check Includes 1 ea Refs. 29-31 & 33; 2 ea Ref. 32) (is Part of Refs. 76 & 79)

1шт.

76

18-962

SEAL KIT

Kit, Complete for Float Banks (Include 2 of Ref. 75, 1 ea Refs. 25, 26, 40, 46 & 81)

1шт.

77

18-1417

SEAL

Relief Poppet & Seal Assy (Includes: Refs. Nos. 9 & 10)

1шт.

78

50-2039T1

SEAL KIT

Kit (Relief Body) (Includes: Refs. Nos. 5, 6, 11 & 12)

1шт.

79

35-1059

SEAL KIT

Kit (Complete for Knockout Section) (Include 1 ea Refs. 57, 80 & 81, & 2 of 75)

1шт.

80

50-2050T1

SEAL KIT

Kit (Knockout Positioner Assy) (incl Refs. 49, 50, 68 & 2 of 67)

1шт.

81

1-8344

SEAL KIT

O-Ring Kit (incl 2 each of Refs. 72 & 73) (see Note)

1шт.

40

18-878

SEAL

Kit (incl 1 ea Refs. 41-43) (note that Refs. 49 & 50 are same as 41 & 42)

1шт.

35-1366T91

KIT

3 to 4 Spool Valve Kit

1шт.

35-1382T91

KIT

4 to 5 Spool Valve Kit (Kits contain knockout section, Coupler, Cables, Control Lever, Hoses & necessary seals)

1шт.
