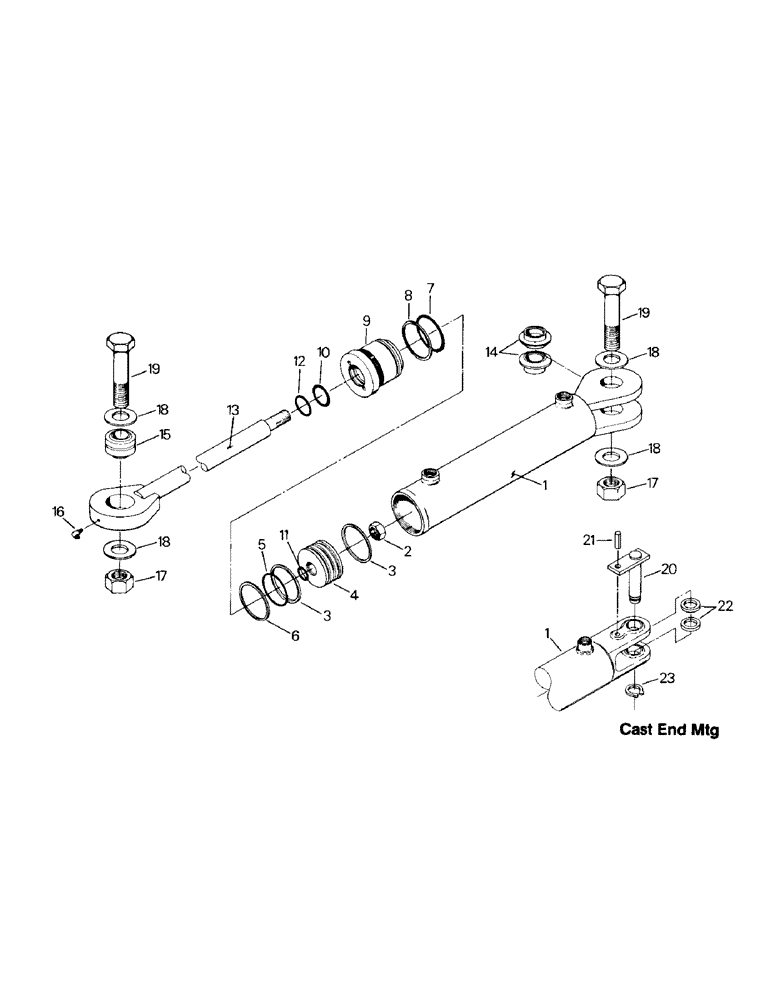

Запчасти Case IH KS-325 (08-14) - STEERING CYLINDERS AND MOUNTING (07) - HYDRAULICS

1-7774T91

CYLINDER

Assy, Includes: Ref. Nos. 1 - 23

2шт.

Use on Cyl with welded clevis and rod end

1шт.

50-2141T91

CYLINDER

Assy., will replace 1-7774T91 but Ref. 20 - 23 must be purchased also

2шт.

Use on Cyl with cast clevis and rod end

1шт.

35-1136T91

SEAL KIT

Seal Kit, Includes: Refs. Nos. 3, 5-8, 10, 11 and 12

2шт.

1

1-7026T1

BARREL

1шт.

Use on Cyl with welded clevis and rod end

1шт.

50-2054T1

SLEEVE CYLINDER

Barrel

1шт.

Use on Cyl with cast clevis and rod end

1шт.

2

19-5578

LOCK NUT

1шт.

3

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

4

1-7031

PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

9

1-7772

CYLINDER END CAP

Rod Guide

1шт.

10

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

O-ring

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper

1шт.

Part of P/N 35-1136T91 Seal Kit

1шт.

13

1-7769

ROD

1шт.

Use on Cyl with welded clevis and rod end

1шт.

50-2145T1

ROD

1шт.

Use on Cyl with cast clevis and rod end

1шт.

14

52-130

BUSHING,38.2mm ID x 69.85mm OD x 26.42mm L

2шт.

Use on Cyl with welded clevis and rod end

1шт.

15

15-44

SPHERICAL BEARING

Self Align Bushing

1шт.

16

31-93

FITTING

Lube Fitting

1шт.

17

19-916

NUT

Jam Nut

1шт.

Ref. 17 - 19 are used on both ends of cyl with welded on ends, but are used only on the rod end of the cyl with cast ends

1шт.

18

19-938

WASHER

1шт.

Ref. 17 - 19 are used on both ends of cyl with welded on ends, but are used only on the rod end of the cyl with cast ends

1шт.

19

19-915

BOLT,1 1/2" - 12 x 5 1/4", Gr 8

Capscrew

1шт.

Ref. 17 - 19 are used on both ends of cyl with welded on ends, but are used only on the rod end of the cyl with cast ends

1шт.

20

50-1086T1

PIN

1шт.

Use on Cyl with cast clevis and rod end

1шт.

21

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

Use on Cyl with cast clevis and rod end

1шт.

22

2-3223T1

SPACER

s

2шт.

Use on Cyl with cast clevis and rod end

1шт.

23

19-5619

RING, SNAP

Retaining Ring

1шт.

Use on Cyl with cast clevis and rod end

1шт.
