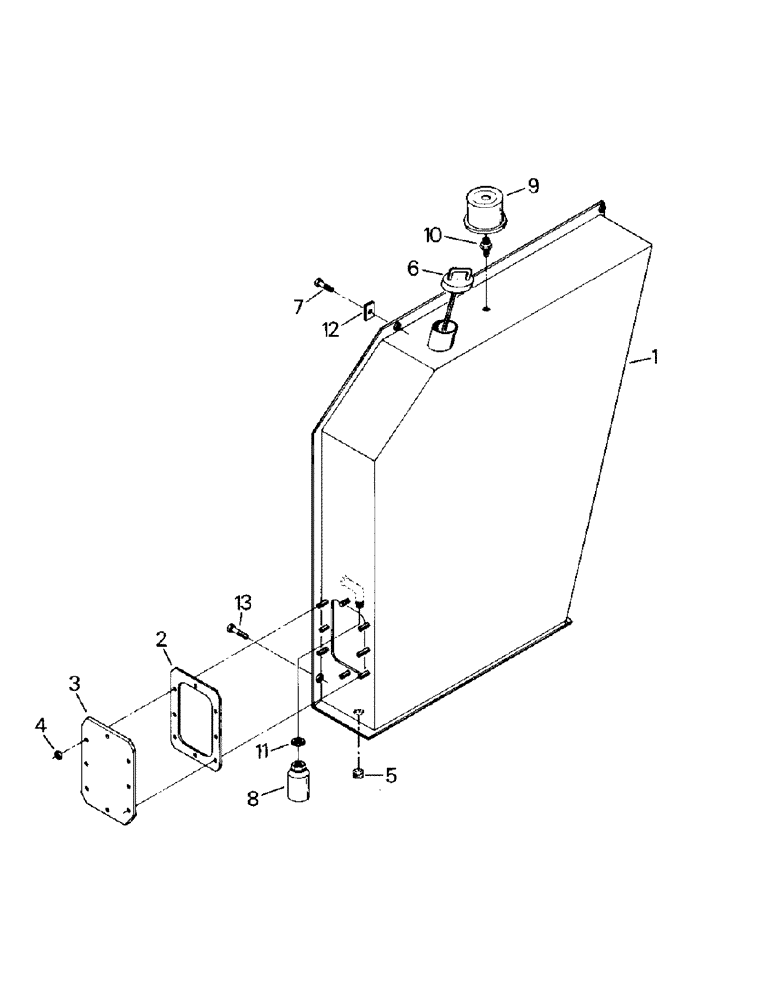

Запчасти Case IH KS-325 (08-05) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1

1-4050

Hydraulic Reservoir

1шт.

2

2-1914

GASKET

1шт.

3

1-4058

PLATE

Cover Plate

1шт.

4

232-4136

LOCK NUT,3/8"-16, GC

8шт.

5

31-35

PLUG

Pipe Plug

1шт.

6

1-4253

DIPSTICK

1шт.

7

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

4шт.

8

50-2029T1

FILTER SCREEN

Suction Screen (18-498)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

9

18-503

FILTER

Pressure Filter Valve

1шт.

18-1633

BREATHER

Element

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting (part of Ref. 9)

1шт.

11

19-953

LOCK NUT

Lock Nut

1шт.

12

1-6848

Retainer

4шт.

13

19-207

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Capscrew

2шт.
