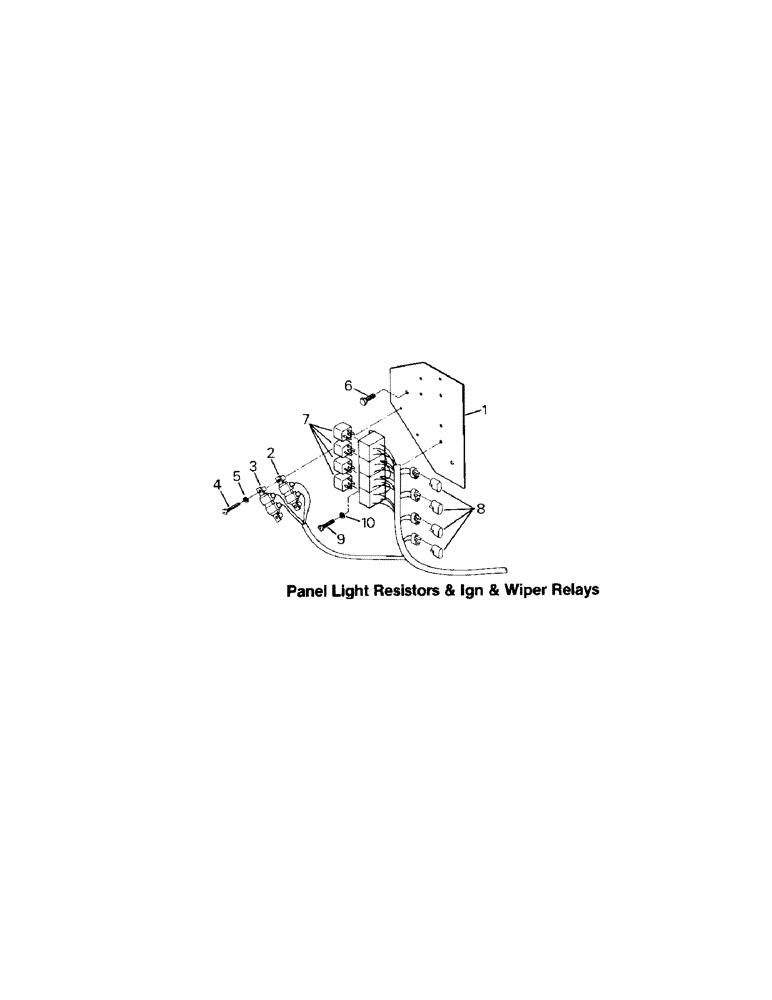

Запчасти Case IH KS-280 (02-11B[1]) - PANEL LIGHT RESISTORS & IGNITION & WIPER RELAYS (06) - ELECTRICAL

60-3425T91

PLATE

& Component Assy, Includes: Ref. Nos. 1 - 5, Panel Light Resistors & Ign. & Wiper Relays

1шт.

1

60-3443T2

PLATE

Mounting Plate, Panel Light Resistors & Ign. & Wiper Relays

1шт.

2

1-3857

RESISTOR

Assy (2 OHM), Panel Light Resistors & Ign. & Wiper Relays

1шт.

3

1-3858

RESISTOR

Assy (5 OHM), Panel Light Resistors & Ign. & Wiper Relays

1шт.

4

19-3041

SCREW,Hex Flg, #8 - 32 x 1 1/2", Gr 2

Machine Screw, Panel Light Resistors & Ign. & Wiper Relays

2шт.

5

19-602

LOCK WASHER,Ext, #8

Panel Light Resistors & Ign. & Wiper Relays

2шт.

6

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

Machine Screw, Panel Light Resistors & Ign. & Wiper Relays

4шт.

7

1-7877

RELAY

Panel Light Resistors & Ign. & Wiper Relays

4шт.

8

22-738

DIODE

Panel Light Resistors & Ign. & Wiper Relays

4шт.

9

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

Machine Screw, Panel Light Resistors & Ign. & Wiper Relays

2шт.

10

19-603

LOCK WASHER,Ext Tooth, #10

Panel Light Resistors & Ign. & Wiper Relays

2шт.
