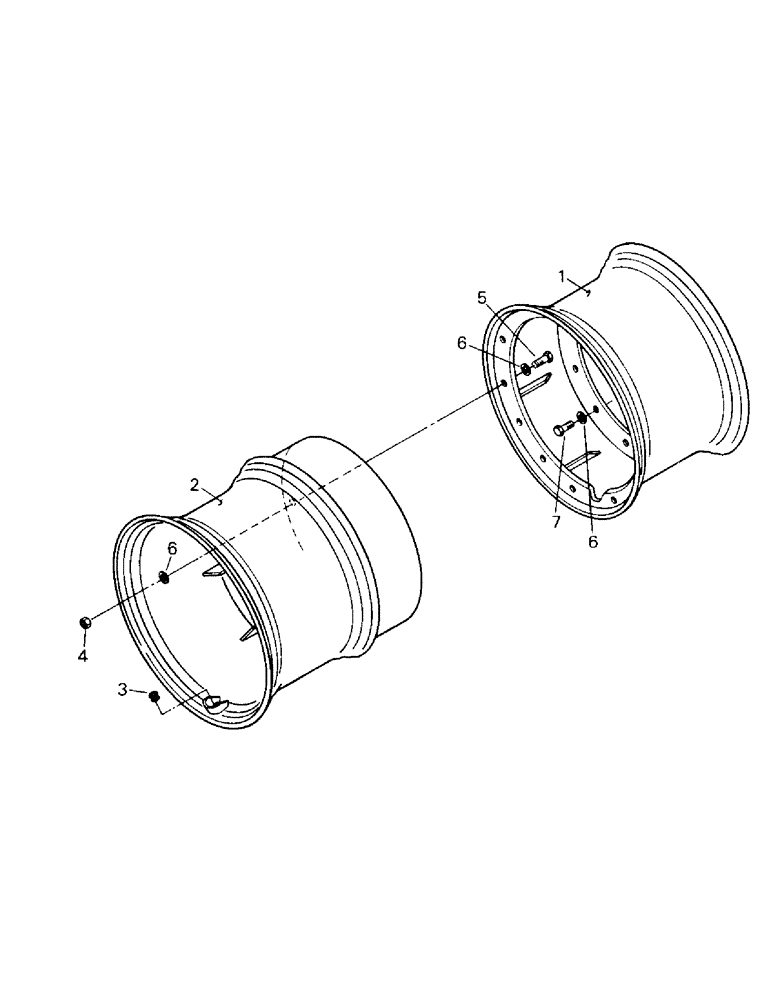

Запчасти Case IH KS-280 (04-48) - WHEELS WITH HUB BOLTED DUALS, MAIN WHEELS, DUAL WHEELS (04) - Drive Train

1

30-1189T1

RIM

23.1 x 34 (20")

4шт.

30-1190T1

RIM

24.5 x 32 (21")

4шт.

30-1223T1

RIM

24.5 x 32 (24")

4шт.

2

30-1191T1

RIM

23.1 x 34 (20"), Dual Wheels

4шт.

30-1192T1

RIM

24.5 x 32 (21"), Dual Wheels

4шт.

30-1217T1

RIM

24.5 x 32 (24"), Dual Wheels

4шт.

3

22-521

PLUG

(qty 8 with Duals)

4шт.

4

19-457

NUT,7/8"-9, G5

Dual Wheels

48шт.

5

19-420

BOLT,7/8" - 9 x 3", Gr 8

Capscrew, Dual Wheels

48шт.

6

19-2975

WASHER

(qty 136 with Duals)

40шт.

7

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

Capscrew, Dual Wheels

40шт.
