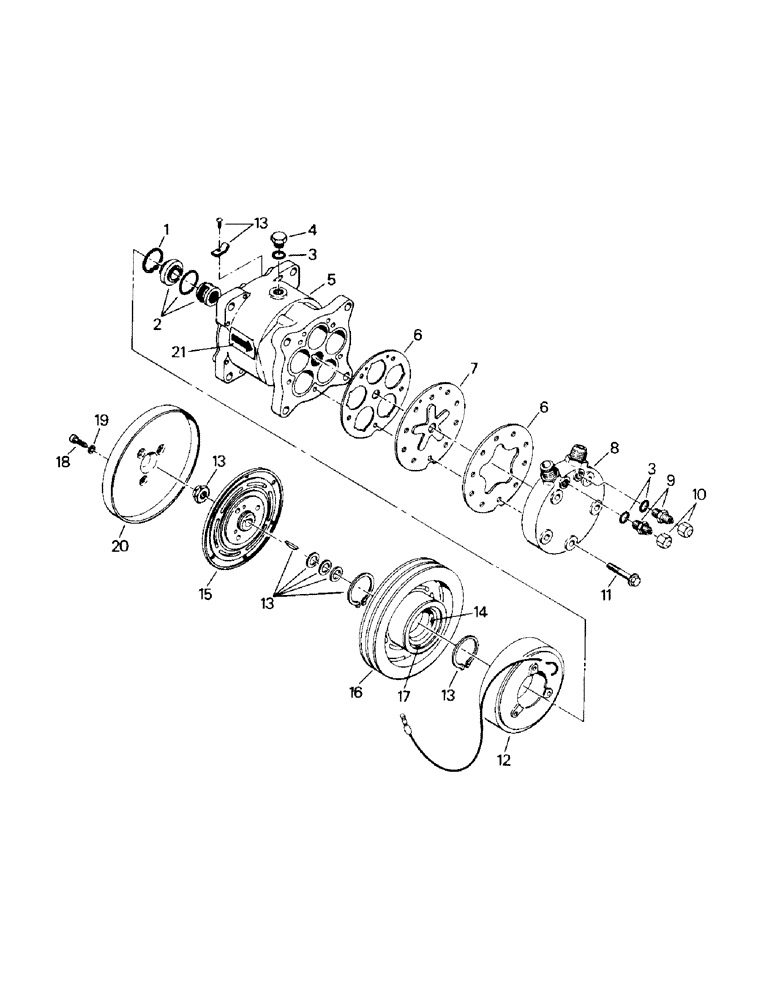

Запчасти Case IH KS-280 (03-10) - A/C COMPRESSOR ASSEMBLY (03) - Climate Control

60-2921T91

COMPRESSOR

A/C Compressor Assy, Includes: Ref. Nos. 1-17)

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

STEIGER PANTHER SERIES IV TRACTOR (7/84-), Reman for New P/N 60-2921T91

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

60-3595T91

BODY

A/C Compressor Body Assy (also incl Ref. 13), Includes: Ref. Nos. 1-11)

1шт.

1

1-2435

RING, SNAP

Snap Ring

1шт.

2

60-3091T1

SEAL KIT

Seal Kit

1шт.

3

1-2437

O-RING

3шт.

4

A49667

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

Compressor Body

1шт.

6

25-231

GASKET KIT

Kit

1шт.

7

60-3092T91

PLATE

Valve Plate Assy (Includes: Ref. No. 6)

1шт.

8

60-3093T1

HEAD (CYLINDER)

Cylinder Head (Includes: Ref. No. 6)

1шт.

9

1-2440

FITTING

Service Port

2шт.

10

1-2441

CAP

Service Port Cap

2шт.

11

1-2438

SCREW,Hex Flg Hd

Flange Capscrew

5шт.

12

25-237

Coil

1шт.

13

60-3095T1

SET OF WASHERS

Accessory Kit

1шт.

1-3759

CLUTCH HOUSING

Pulley & Front Plate Assy, Includes: Ref. Nos. 14-17)

1шт.

14

35-1064

BEARING ASSY

Kit (Includes: Ref. No. 17)

1шт.

15

NSS

NOT SOLD SEPARAT

Clutch

1шт.

16

NSS

NOT SOLD SEPARAT

Pulley

1шт.

17

1-3760

BEARING

Dust Seal

1шт.

18

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Socket Head Capscrew

3шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

Washer

3шт.

20

25-194

Dust Shield 1/4"-28, G5, Thk

1шт.

21

26-304

DECAL

1шт.
