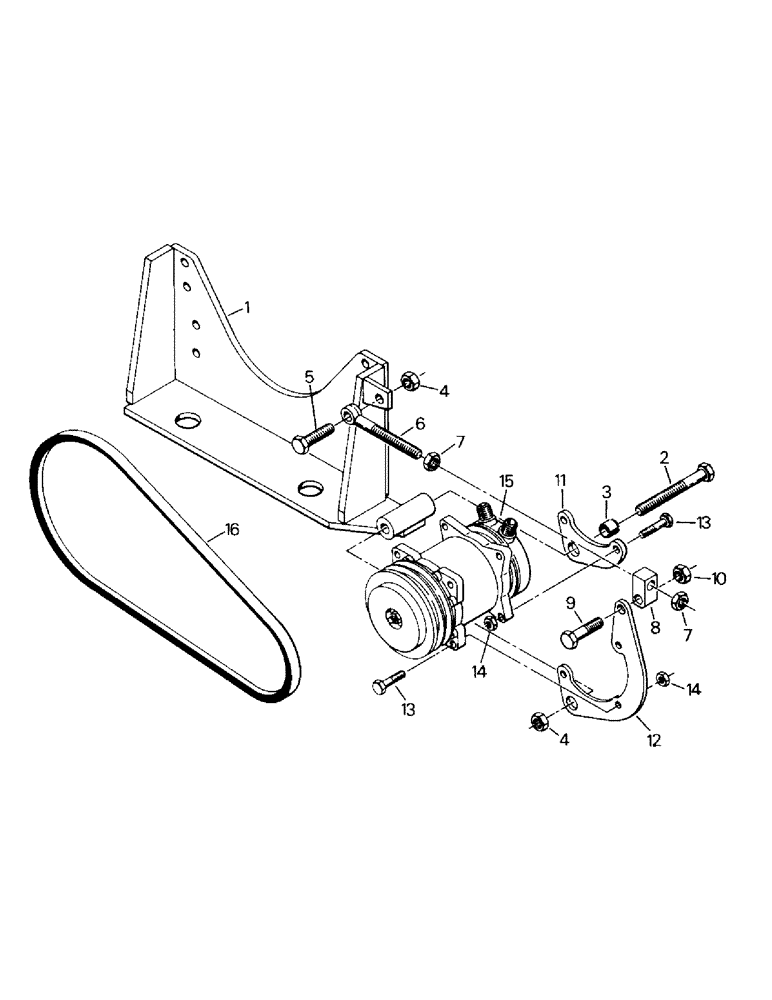

Запчасти Case IH KS-280 (03-09) - A/C COMPRESSOR AND MOUNTING, CAT 3406 ENGINE (03) - Climate Control

1

90-3910T1

Engine Mount

1шт.

2

9430514

BOLT,1/2" - 13 x 5", Gr 8

Capscrew

1шт.

3

2-1144T1

BUSHING

1шт.

4

19-653

LOCK NUT

Lock Nut

2шт.

5

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

Capscrew

1шт.

6

22-1086T1

ROD

Adjusting Rod

1шт.

7

19-1060

JAM NUT,1/2" - 20, Gr 8

Jam Nut

2шт.

8

22-1083

BLOCK

with 5/8" bottom hole, before 5-7-84 approx.

1шт.

1-6899T1

BLOCK

with 1/2" bottom hole, after 5-7-84 approx.

1шт.

9

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Capscrew, 5/8" UNC x 2, before 5-7-84 approx.

1шт.

19-46

BOLT,1/2" - 13 x 2", Gr 5

Capscrew, 1/2" UNC x 2, after 5-7-84 approx.

1шт.

10

19-5960

LOCK NUT

Lock Nut, 5/8" UNC, before 5-7-84 approx.

1шт.

19-653

LOCK NUT

Lock Nut, 1/2" UNC, after 5-7-84 approx.

1шт.

11

2-5292T1

BRACKET

1шт.

12

2-5322T1

BRACKET

with 5/8" top hole, before 5-7-84 approx.

1шт.

Bracket may no longer be available. For service, order 02-7181T1 and drill out the top hole, or can order P/n 1-6899T1 Block, 19-46 Capscrew and 19-653 Lock Nut

1шт.

2-7181T1

BRACKET

with 1/2" top hole, after 5-7-84 approx.

1шт.

13

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew (metric)

5шт.

14

19-455

NUT

Lock Nut (metric)

5шт.

15

A/C Compressor Assy (Fig. 3-10)

1шт.

16

90-3806T1

V-BELT,0.53" W x 44.60" L

A/C Compressor 0.53" W x 44.60" L

1шт.
