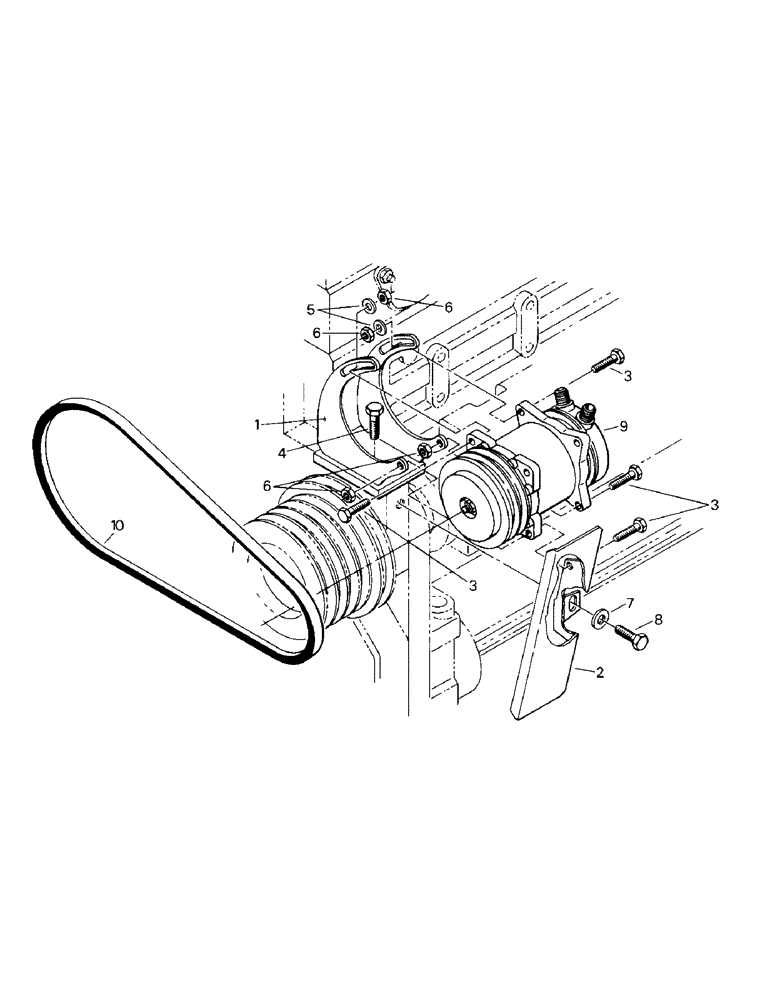

Запчасти Case IH KS-280 (03-08) - A/C COMPRESSOR & MOUNTING, CUMMINS 855 ENGINE (03) - Climate Control

1

55-209

BRACKET

Compressor Mount

1шт.

2

1-4614

SHIELD

Nip Point Shield

1шт.

3

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

Capscrew (metric)

4шт.

4

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

Capscrew

2шт.

5

19-108

WASHER,7/16"

2шт.

6

19-455

NUT

Lock Nut (metric)

4шт.

7

19-711

WASHER,5/8", SAE

1шт.

8

19-674

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

Capscrew

1шт.

9

A/C Compressor Assy (Fig. 3-10)

1шт.

10

1-6864

V-BELT,0.53" W x 39.25" L

A/C Compressor 0.53" W x 39.25" L

1шт.
