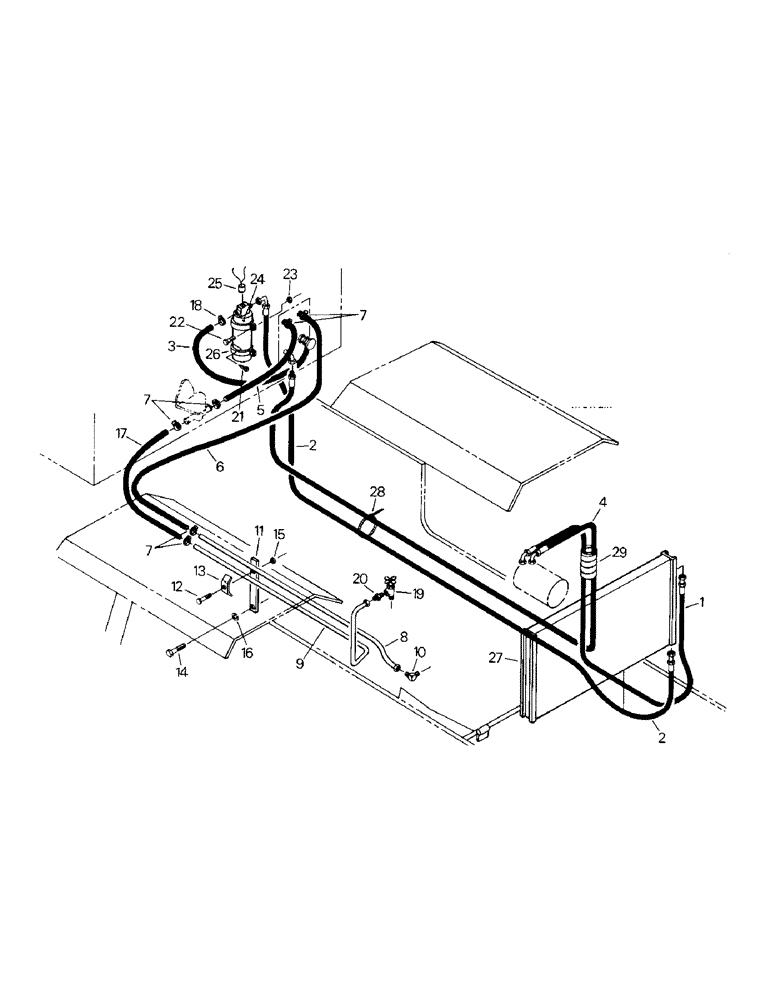

Запчасти Case IH KS-280 (03-06) - A/C AND HEATER PLUMBING, CUMMINS 855 ENGINE (03) - Climate Control

1

31-1063

HOSE ASSY.

Hose

1шт.

2

31-1519

HOSE ASSY.

Hose

1шт.

3

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A

1шт.

4

31-1298

HOSE

1шт.

5

31-1352

HOSE,0.63" ID x 16.00"

1шт.

6

31-1295

HOSE,0.63" ID x 46.00"

1шт.

7

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

6шт.

8

25-389T1

HEATER TUBE,0.625" OD, 46.75" Length

Tube

1шт.

9

25-388

HEATER TUBE

Tube

1шт.

10

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

1шт.

11

25-395

STRAP

1шт.

12

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew

1шт.

13

32-1000

CLAMP

1шт.

14

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Capscrew

1шт.

15

280129

NUT,1/4"-20

1шт.

16

19-119

LOCK WASHER,1/2"

1/2"

2шт.

17

31-1067

HOSE,0.63" ID x 36.00"

0.63" ID x 36.00"

1шт.

18

25-48

HOSE CLAMP

Clamp

1шт.

19

31-1275

SHUT-OFF VALVE

Truck valve

1шт.

20

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

Connector

1шт.

21

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Tapping Screw

2шт.

22

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 UNC x 1-1/4

2шт.

Ref. 26 was revised approx Nov 84 to use 5/16 hardware Ref. 22 and 23

1шт.

19-9

BOLT,5/16" - 18 x 2", Gr 5

Capscrew, 5/16 UNC x 2

1шт.

Ref. 26 was revised approx Nov 84 to use 5/16 hardware Ref. 22 and 23

1шт.

23

19-5381

NUT

1/4 UNC

2шт.

Ref. 26 was revised approx Nov 84 to use 5/16 hardware Ref. 22 and 23

1шт.

19-5777

LOCK NUT

Lock Nut, 5/16 UNC

1шт.

Ref. 26 was revised approx Nov 84 to use 5/16 hardware Ref. 22 and 23

1шт.

24

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

25

25-1002

SWITCH

(Low Pressure)

1шт.

26

1-8563

CLAMP BRACKET

Bracket, was revised approx Nov 84 to use 5/16 hardware Ref. 22 and 23

2шт.

27

2-3370T1

CONDENSER

1шт.

28

19-135

CABLE TIE

Ty Rap

4шт.

29

18-1612

SLEEVE

1шт.
