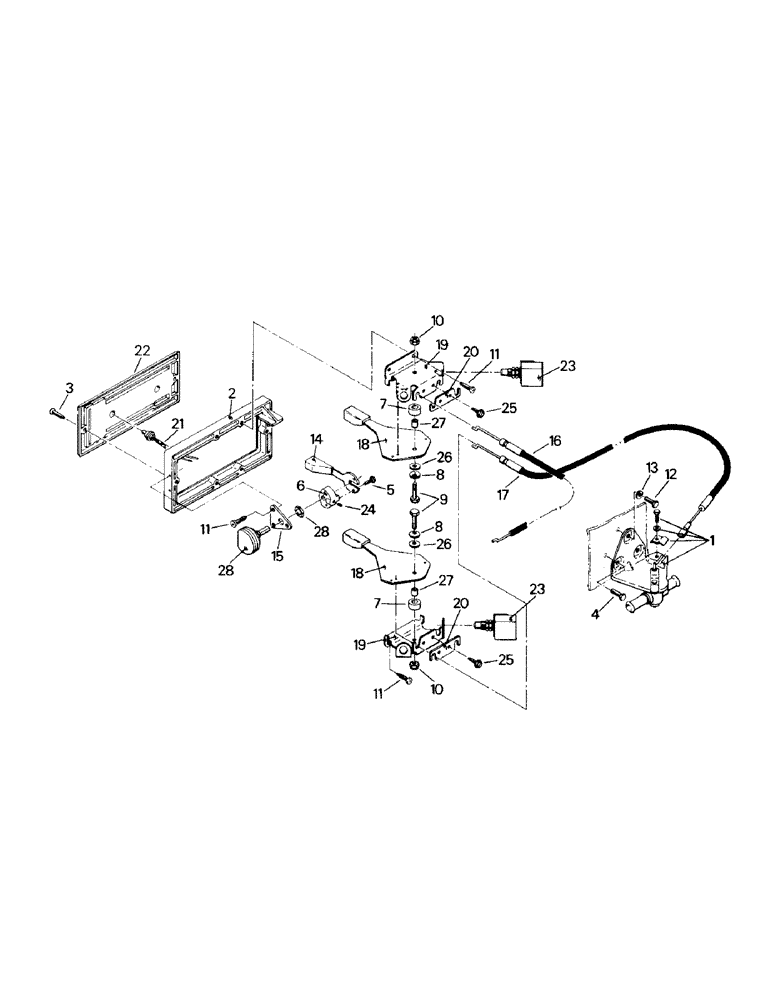

Запчасти Case IH KS-280 (03-03) - A/C & HEATER CONTROLS, LATER STYLE (03) - Climate Control

1

60-2392T1

DRAIN VALVE

Water Valve

1шт.

2

25-1064

BRACKET

Mounting Bracket

1шт.

3

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Tapping Screw

2шт.

4

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

2шт.

5

19-5963

SCREW,Hex Wshr Hd, #6 - 32 x 3/8"

Machine Screw

2шт.

6

60-2735T1

HUB ASSY.

Lever Hub

1шт.

7

19-5997

SPACER

2шт.

8

19-5995

SPRING WASHER

Spring Washer

2шт.

9

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

Machine Screw

2шт.

10

231-24109

LOCK NUT,#10-32, GB

2шт.

11

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

Tapping Screw

6шт.

12

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

Tapping Screw

1шт.

13

19-699

WASHER,3/16"

1шт.

14

60-2324T1

LEVER

Fan Switch Lever

1шт.

15

60-2325T2

BRACKET

Switch Bracket

1шт.

16

60-2686T1

CABLE

Control Cable

1шт.

CABLE MEASURES ABOUT 28.50

1шт.

17

60-2687T1

CABLE

Control Cable

1шт.

18

60-2732T2

LEVER

Slide Control Lever

2шт.

19

60-2733T1

BRACKET

Slide Control Bracket

2шт.

20

60-2734T1

RETAINER

Cable Retainer

2шт.

60-2862T91

PANEL

Control Panel Assy, Includes: Ref. Nos. 21 & 22

1шт.

21

20-1461T1

LIGHT ASSY.

Light Assy

1шт.

22

60-2410T1

PANEL

Control Panel

1шт.

23

20-1463T1

SWITCH

Micro Switch Assy

2шт.

24

19-5926

SET SCREW

1шт.

25

9424856

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

Tapping Screw

4шт.

26

19-5998

WASHER

2шт.

27

19-5996

ANCHOR

Standoff

2шт.

28

20-1462T2

SWITCH

Rotary Switch Assy (20-1462T1)

1шт.

Superseded-Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.
