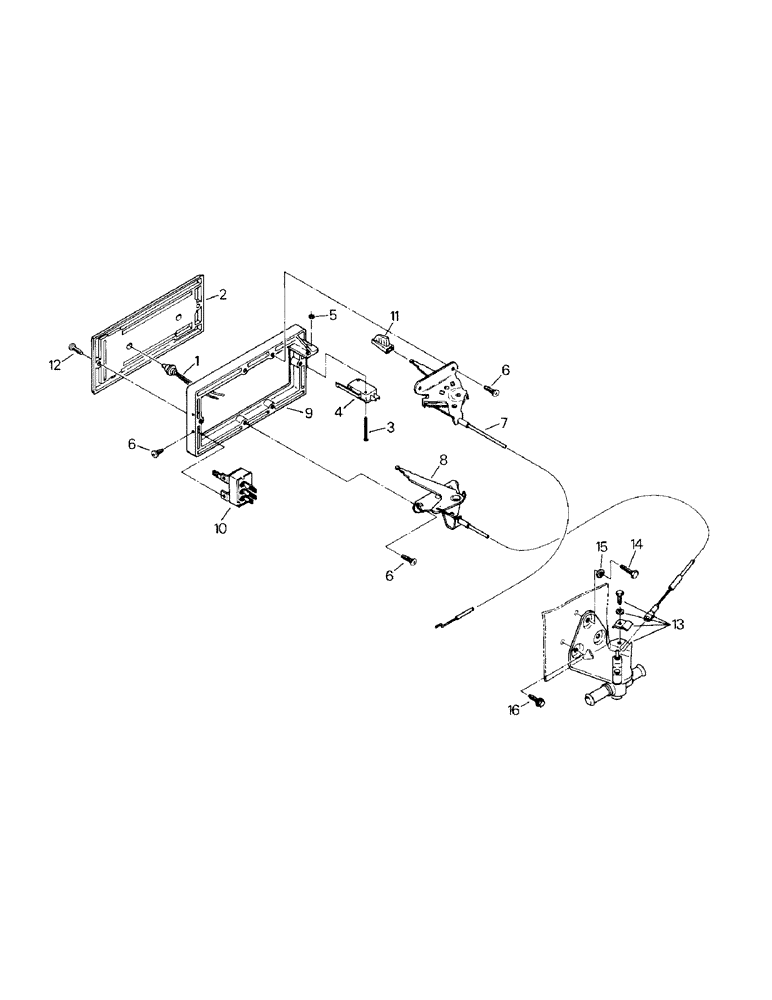

Запчасти Case IH KS-280 (03-02) - A/C & HEATER CONTROLS, EARLY STYLE (03) - Climate Control

60-2862T91

PANEL

Control Panel Assy, Includes: Ref. Nos. 1 & 2

1шт.

1

20-1461T1

LIGHT ASSY.

Light Assy

1шт.

2

60-2410T1

PANEL

Control Panel

1шт.

25-1006

NUT

Control Panel Assy, Includes: Ref. Nos. 3-10

1шт.

3

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

Machine Screw

2шт.

4

25-1067

SWITCH

Micro Switch

1шт.

5

225-14104

NUT,#4-40

2шт.

6

19-1036

PLOW BOLT,5/8" - 11 x 2 1/4", Gr 5

Tapping Screw

6шт.

7

25-1065

LEVER

Defroster Lever (with cable)

1шт.

8

25-1066

LEVER

Water Valve Lever (with cable)

1шт.

9

25-1064

BRACKET

Mounting Bracket

1шт.

10

25-1068

SWITCH

Blower Switch

1шт.

11

25-1008

BALL KNOB

Knob

3шт.

12

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

Tapping Screw

2шт.

13

60-2392T1

DRAIN VALVE

Water Valve

1шт.

14

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

Tapping Screw

1шт.

15

19-699

WASHER,3/16"

1шт.

16

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

2шт.
