Запчасти Case IH KR-1225 (02-18) - CAB LIGHTS (06) - ELECTRICAL

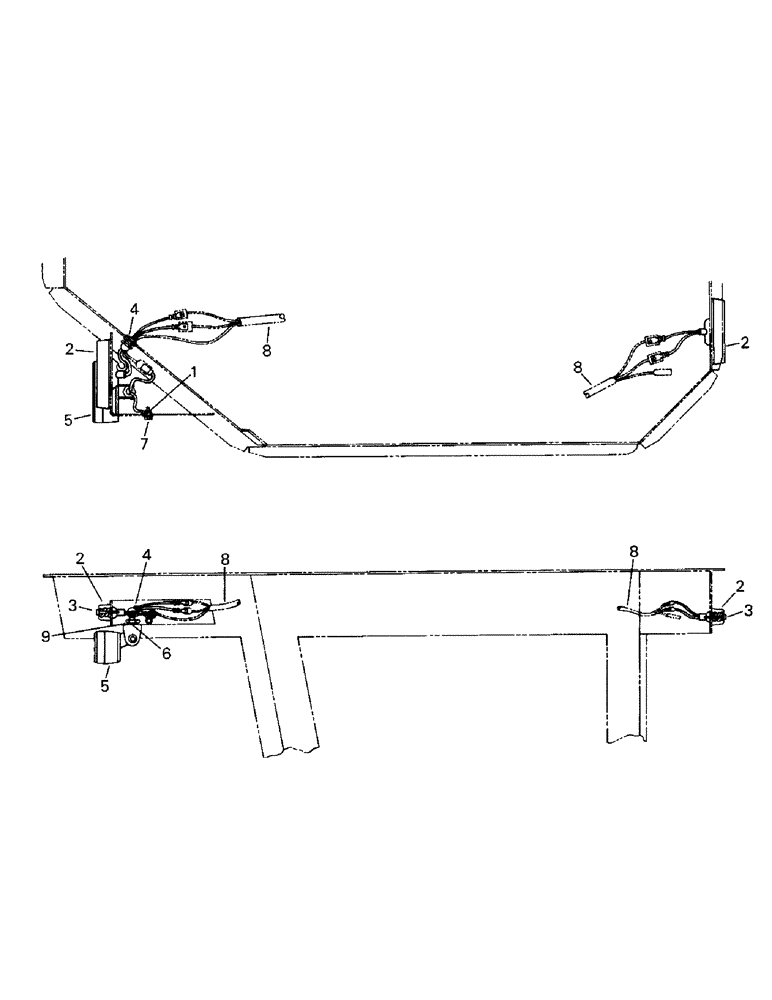

Схема запчастей Case IH KR-1225 - (02-18) - CAB LIGHTS (06) - ELECTRICAL
5
2
2
1
5
6
8
4
4
8
2
7
3
3
8
2
9
8

Артикул

Название

Примечание

Количество

1

9419337

NUT

Keps Nut

2шт.

2

Warning Light Assy (see Fig. 2-20)

4шт.

3

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

Shouldered Screw

8шт.

4

60-2924T1

CONNECTING ROD

Connector

2шт.

5

Field Light Assy (see Fig. 2-20)

2шт.

See section 10 - options for additional field lights.

1шт.

6

19-653

LOCK NUT

Lock Nut

2шт.

7

9421943

SCREW,Hex Washer, #10 - 24 x 1/2"

Machine Screw

2шт.

8

20-1970T1

HARNESS

Overhead Wire Harness

1шт.

9

22-367

SPRING WASHER

Curved Spring Washer

2шт.

Выбрано товаров: 10
