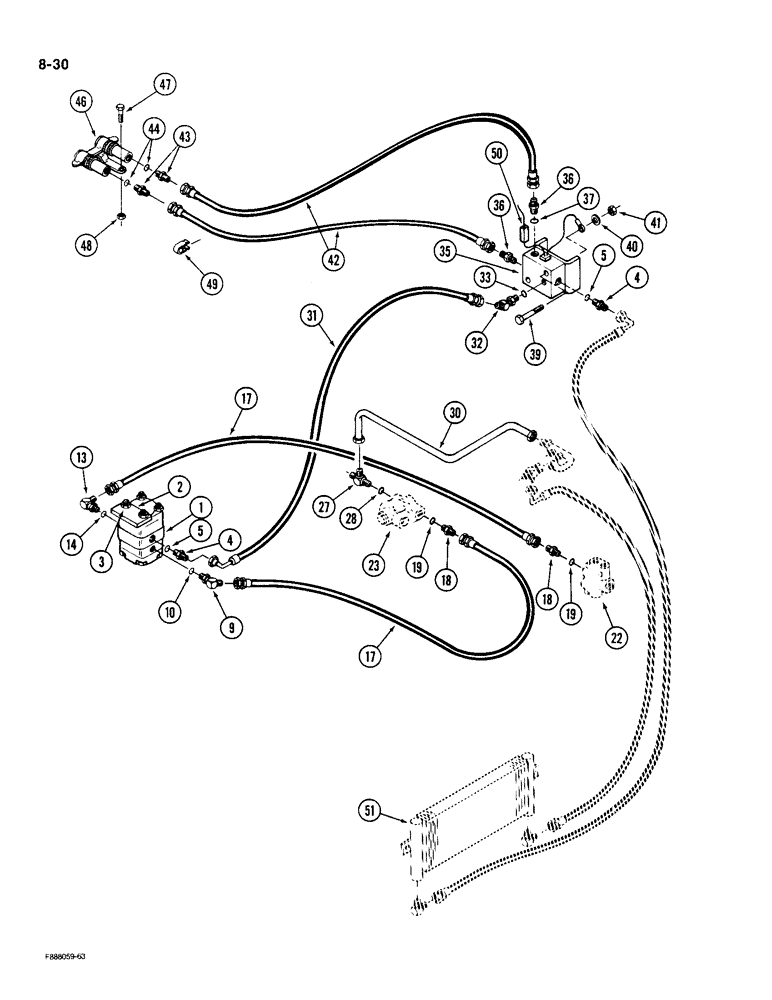

Запчасти Case IH KP-525 (8-30) - REMOTE HYDRAULIC MOTOR CIRCUIT, IF EQUIPPED (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider, See Figures 8-34 and 8-36

1шт.

2

50-1233T1

PLATE

BRACKET - mounting, top

1шт.

3

425-1010

NUT,5/8"-11, G5

BOLT - hex, 1/2 inch NC x 1 inch

4шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch thread, Incl. Ref. 5

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

- 90 degree, 1-1/16 x 1-5/16 inch thread (For use with 1/2 and 1/2 flow divider), Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16 -12 o-ring boss x 1-5/16-12 JIC male (For use with 1/3 and 2/3 flow divider), Incl. Ref. 10

1шт.

10

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

13

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16 -12 o-ring boss x 1-5/16-12 JIC male, Incl. Ref. 14

1шт.

14

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

17

31-1641

HOSE

- valve to valve, 62 inch

2шт.

18

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - straight, 1-5/16 inch thread, Includes: Ref. 19

2шт.

19

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

22

REF

INSTRUCTION

VALVE ASSEMBLY - priority, See Figure 8-16

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - flow divider, See Figure 8-14

1шт.

27

31-1236

TEE,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring run

- adjustable, 1-5/16 inch thread, Includes: Ref. 28

1шт.

28

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

30

47-4477

HYD TUBE

TUBE - flow, Serial Range: divider-tube

1шт.

31

31-2319

HOSE ASSY.

HOSE - flow divider to solenoid valve, 44 inch

1шт.

32

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

- adjustable, 45 degree, 1-5/16 inch, Includes: Ref. 33

1шт.

33

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

35

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, See Figure 8-32

1шт.

36

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 1-1/16 x 7/8 inch thread, Includes: Ref. 37

2шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

40

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

42

31-1639

HOSE

- solenoid valve to remote coupler, 177 inch

2шт.

43

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 7/8-14 flared x 7/8-14 inch O-ring boss, Includes: Ref. 44

2шт.

44

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

46

REF

INSTRUCTION

COUPLER ASSEMBLY - remote hydraulic, See Figure 8-28

1шт.

47

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

1шт.

48

19-82

LOCK NUT

- lock, 1/2 inch NC

1шт.

49

31-1187

CLAMP

ASSEMBLY - hose, 1 inch

4шт.

50

20-1262T1

ELECTRICAL WIRE

HARNESS - wire

1шт.

51

REF

INSTRUCTION

COOLER - hydraulic oil, See Figure 8-06

1шт.
