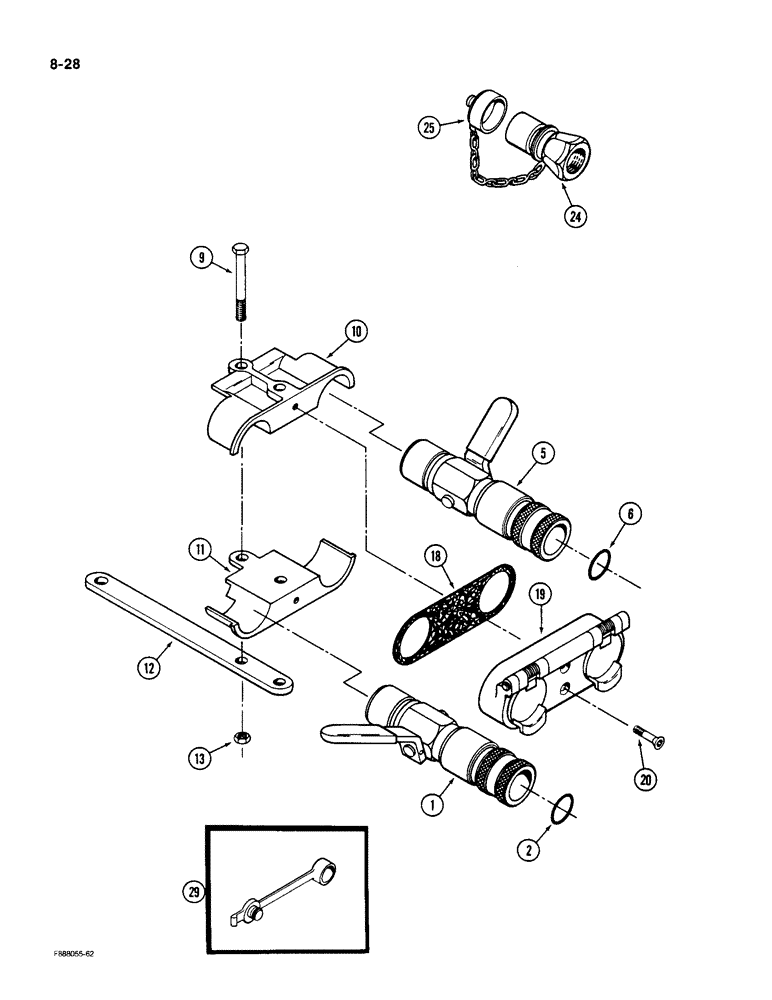

Запчасти Case IH KP-525 (8-28) - QUICK DISCONNECT COUPLER ASSEMBLY (08) - HYDRAULICS

50-1347T92

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1 - 29

1шт.

1

50-1460T91

PUSH-PULL COUPLING

COUPLER - quick, yellow handle, Includes: Ref. 2

1шт.

2

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

5

50-1459T91

PUSH-PULL COUPLING

COUPLER - quick, red handle, Includes: Ref. 6

1шт.

6

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

9

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

10

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top

1шт.

11

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom

1шт.

12

50-1456T1

CLAMP

BRACKET - mounting, coupler

1шт.

13

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

18

50-1458T1

GASKET

- cover

1шт.

19

50-1457T1

HOUSING

COVER - coupler (Order 50-2267T1, quantity 2)

1шт.

20

138203

HEX SOC SCREW,1/4" - 20 x 1 1/4", Gr 8

BOLT - socket head, 1/4 NC x 1-1/4 inch, Grade 8

2шт.

24

1-7141

FITTING

CARTRIDGE - coupler, remote

2шт.

25

1-7142

CAP

- coupler dust, rubber

2шт.

29

50-2267T1

PLUG

CAP - cartridge dust

2шт.
