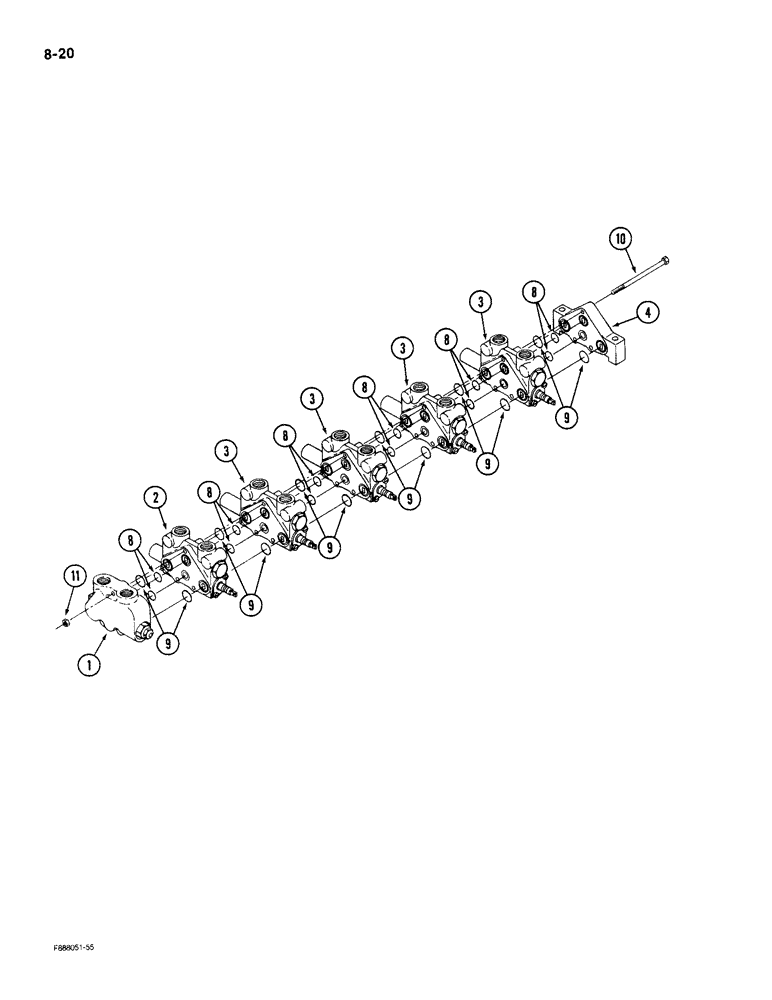

Запчасти Case IH KP-525 (8-20) - REMOTE HYDRAULIC VALVE ASSEMBLY (08) - HYDRAULICS

50-1396T91

VALVE

ASSEMBLY - remote hydraulic, 4 section, Includes: Ref. 1 - 11

1шт.

50-1397T91

VALVE

ASSEMBLY - remote hydraulic, 5 section, Includes: Ref. 1 - 11

1шт.

1

REF

INSTRUCTION

COVER ASSEMBLY - inlet, left side, See Figure 8-22

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - remote, float section, See Figure 8-24

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - remote, detent section, See Figure 8-26

4шт.

Quantities shown are for a 5 circuit remote hydraulic system; for a 4 circuit system, quantities will be less.

1шт.

4

REF

INSTRUCTION

COVER ASSEMBLY - remote valve, right side, See Figure 8-22

1шт.

1-8344

SEAL KIT

KIT - o-ring, Includes 2 each of Ref. 8 and 9

5шт.

8

2-2861

O-RING

- seal

10шт.

9

1-8344

SEAL KIT

O-RING - seal

10шт.

10

18-1037

STUD,Flg, 3/8" x 9 1/2"

BOLT - flanged head, special, 3/8 NF x 9-1/2 inch (For 4 section valve)

3шт.

10

18-1038

STUD,3/8" - 24 x 11.50"

BOLT - flanged head, special, 3/8 NF x 11-1/4 inch (For 5 section valve)

3шт.

11

18-909

LOCK NUT

NUT - hex, 3/8 inch NF

3шт.

35-1408T91

KIT

ATTACHMENT - remote hydraulic 5th section (Machinery item) (Includes all necessary components to add a 5th hydraulic circuit onto a 4 circuit system)

1шт.
