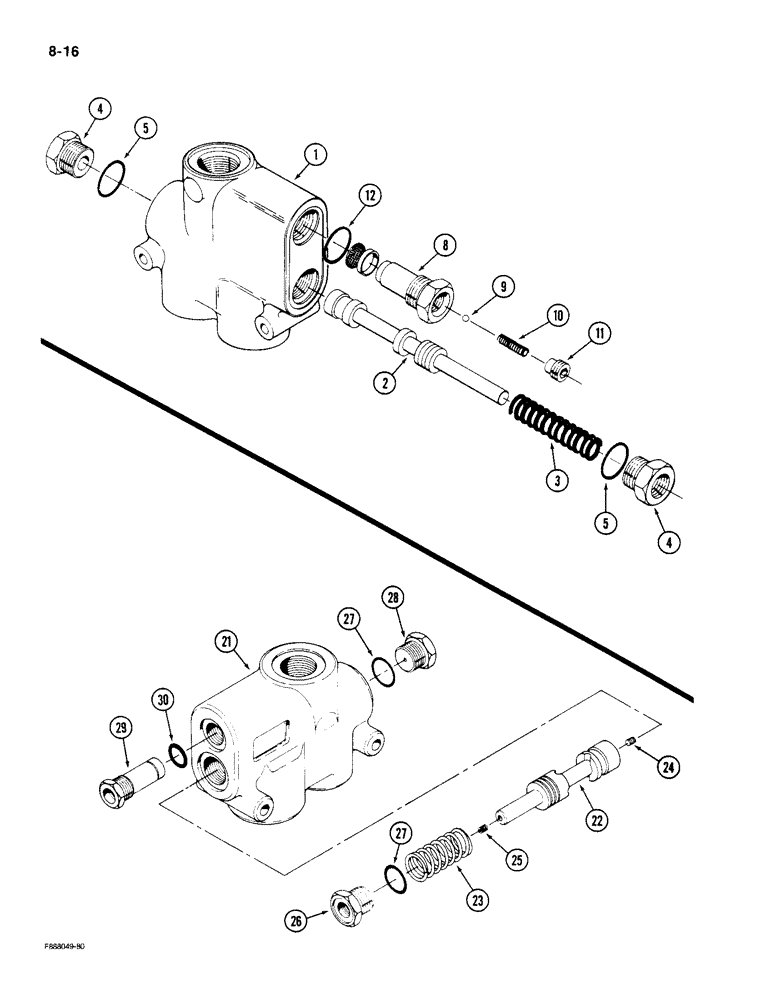

Запчасти Case IH KP-525 (8-16) - PRIORITY VALVE ASSEMBLY, PRIOR TO P.I.N. 131-05017 (08) - HYDRAULICS

47-3002T91

VALVE

ASSEMBLY - priority, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - priority valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

3

2-1360

SPRING

- return, spool

1шт.

4

2-1361

PLUG

CONNECTOR - straight

2шт.

5

31-664

FITTING

- swivel

2шт.

N7163

CARTRIDGE

ASSEMBLY - relief, Include: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET - relief cartridge

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return, poppet

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

12

18-1592

O-RING

- relief cartridge

1шт.

50-2543T91

VALVE

ASSEMBLY - priority, P.I.N. 131-05017 and after, Includes: Ref. 21 - 30

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - priority valve assembly, P.I.N. 131-05017 and after

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - control, priority valve assembly, P.I.N. 131-05017 and after

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - return, spool, priority valve assembly, P.I.N. 131-05017 and after

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - spool, priority valve assembly, P.I.N. 131-05017 and after

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG - spool, with orifice, priority valve assembly, P.I.N. 131-05017 and after

1шт.

26

50-2996T1

CONNECTOR, ELEC

CONNECTOR - straight, with orifice, priority valve assembly, P.I.N. 131-05017 and after

1шт.

27

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch, priority valve assembly, P.I.N. 131-05017 and after

2шт.

28

50-2995T1

PLUG

- hex head, with orifice, priority valve assembly, P.I.N. 131-05017 and after

1шт.

29

50-3035T91

CARTRIDGE

ASSEMBLY - relief valve, priority assembly, P.I.N. 131-05017 and after, Includes: Ref. 30

1шт.

30

50-1872T1

O-RING

- relief cartridge, priority valve assembly, P.I.N. 131-05017 and after

1шт.
