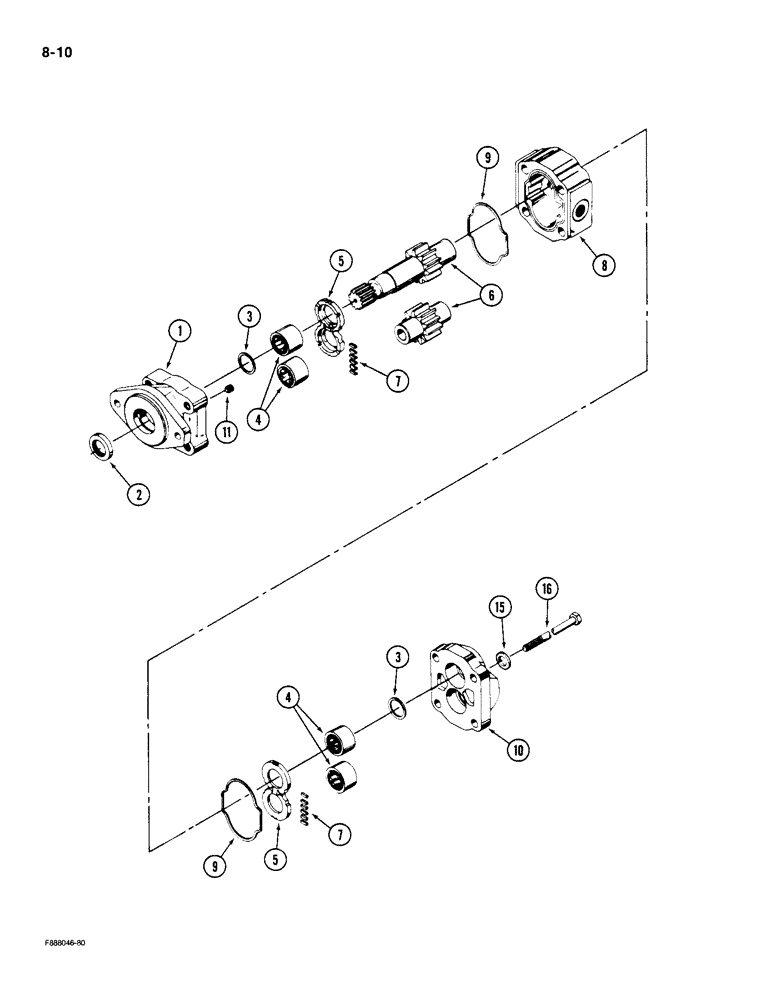

Запчасти Case IH KP-525 (8-10) - HYDRAULIC, PUMP ASSEMBLY (08) - HYDRAULICS

50-2049T91

PUMP

ASSEMBLY - gear, hydraulic, Includes: Ref. 1 - 16

1шт.

1

50-1836T91

COVER

- end, shaft

1шт.

2

L32318

SEAL

- shaft, drive

1шт.

3

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring

2шт.

4

18-794

BEARING

- roller

4шт.

5

D31955

PLATE

- thrust

2шт.

6

50-1854T1

GEAR-SET

GEAR SET - drive and idler

1шт.

7

18-775

SEAL

- pocket

12шт.

8

50-1853T91

GEAR

HOUSING - gear

1шт.

9

18-798

GASKET

- seal

2шт.

10

18-791

PORT

COVER - end

1шт.

11

18-772

PLUG

SCREW - plug

1шт.

15

19-488

WASHER

- flat

4шт.

16

19-209

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8 NC x 5 inch

4шт.
