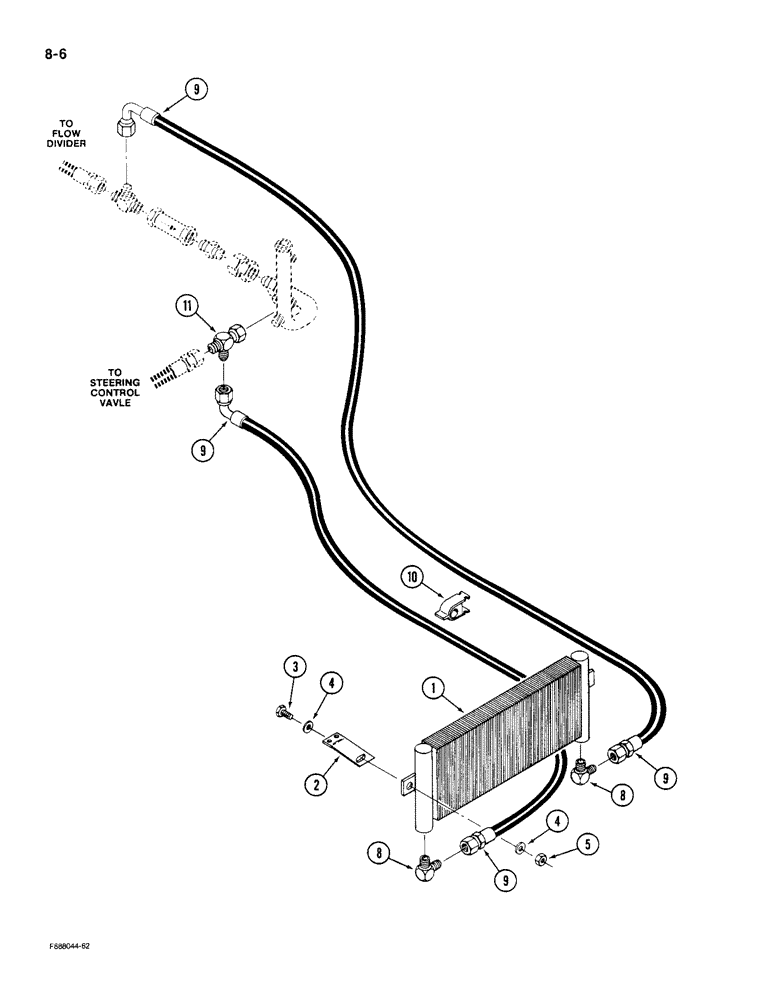

Запчасти Case IH KP-525 (8-06) - HYDRAULIC SYSTEM, OIL COOLER LINES (08) - HYDRAULICS

1

10-39

COOLER

- oil, transfer case

1шт.

2

50-1230T1

BRACKET

- mounting, cooler to radiator, right

1шт.

2

50-1231T1

BRACKET

- mounting, cooler to radiator, left

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

2шт.

9

31-1699

HOSE

- cooler to connector, 180 inch

2шт.

10

31-1187

CLAMP

ASSEMBLY - hose, 1 inch

4шт.

11

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Connector 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.
