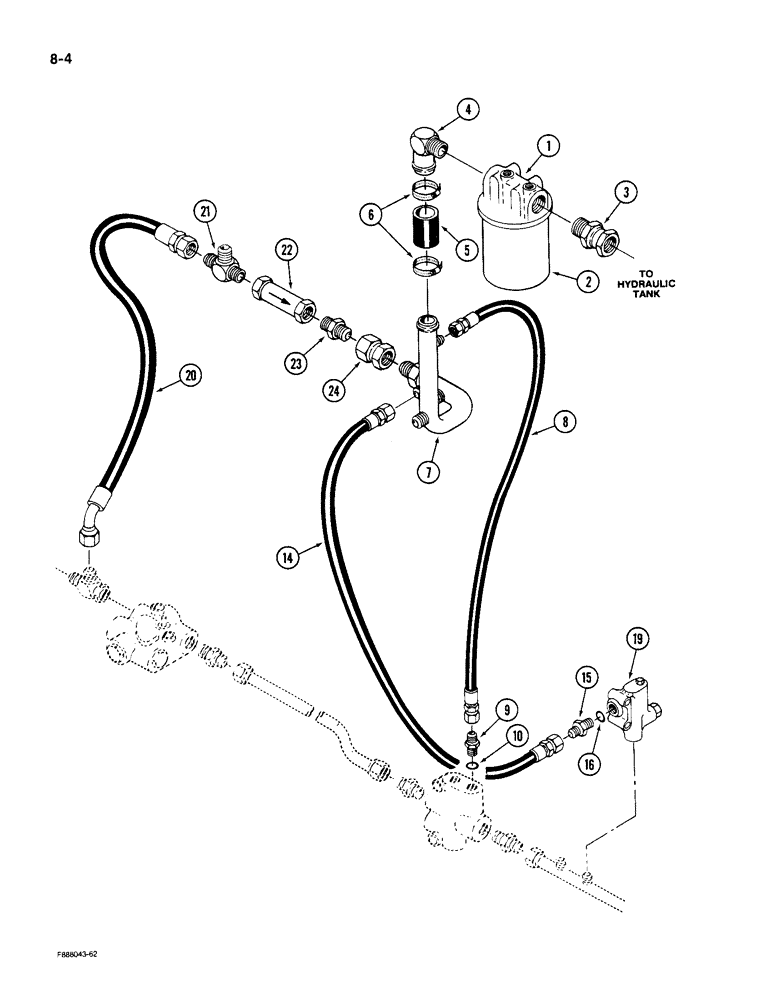

Запчасти Case IH KP-525 (8-04) - HYDRAULIC SYSTEM, FILTER CIRCUIT (08) - HYDRAULICS

1

50-2602T1

HEAD

HOUSING - filter head

1шт.

2

18-498

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic oil

1шт.

3

31-1869

ADAPTER

CONNECTOR - adjustable, straight, 1-1/4 inch PT

1шт.

4

31-1230

ADAPTER

ELBOW -90 degree, 1-1/4 PT x 1-1/2 inch

1шт.

5

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

- tube to tube 1.45" ID, 1.55" ID x 6.00"

1шт.

6

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

7

47-3507

HYD TUBE

TUBE - manifold

1шт.

8

31-1231

HOSE ASSY.,152.4 mm ID, 762 mm Length

HOSE -tube to priority valve, 18 inch

1шт.

9

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 inch thread, Includes: Ref. 10

1шт.

10

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

14

31-1147

HOSE

- tube to relief valve, 22 inch

1шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 7/8-14 flared x 7/8-14 inch O-ring boss, Includes: Ref. 16

1шт.

16

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - relief, See Figure 8-14

1шт.

20

31-1702

HOSE

- flow divider to check valve, 33 inch

1шт.

21

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- connector, 3/4 PT x 1-1/16 inch thread

1шт.

22

50-1023T1

VALVE

ASSEMBLY - check

1шт.

23

31-1701

COUPLING,1"-11 1/2 NPTF x 3/4"-14 NPTF

CONNECTOR - straight, 3/4 PT x 1 inch PT

1шт.

24

31-1700

HYD CONNECTOR,37 Degree, Sw, 1 5/16"-12" x 1"-11 1/2 NPTF

CONNECTOR - adjustable, straight, 1 PT x 1-5/16 inch thread

1шт.
