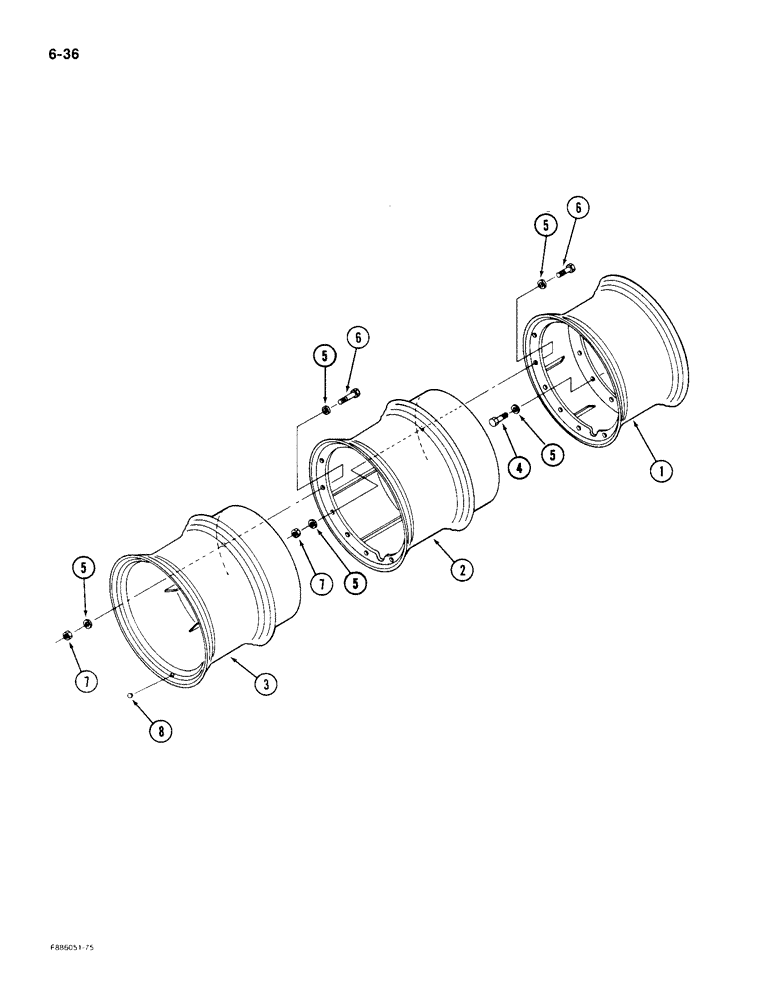

Запчасти Case IH KP-525 (6-36) - WHEELS, HUB BOLTED TRIPLES (06) - POWER TRAIN

1

30-1346T1

WHEEL - inner, 20.8 x 42 inch

4шт.

2

30-1347T1

RIM

WHEEL - middle, 20.8 x 42 inch

4шт.

3

30-1348T1

RIM

WHEEL - outer, 20.8 x 42 inch

4шт.

4

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

72шт.

5

70-5473T1

WASHER

- flat, hardened

264шт.

6

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch

96шт.

7

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

96шт.

8

22-521

PLUG

- hole

12шт.
