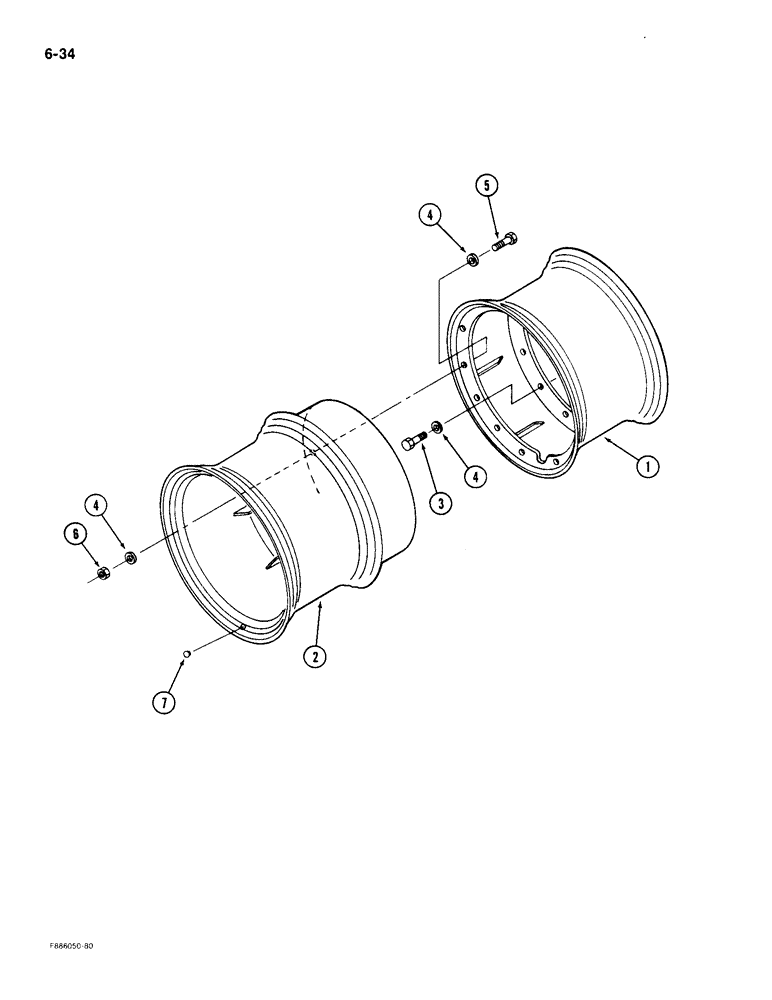

Запчасти Case IH KP-525 (6-34) - WHEELS, HUB BOLTED DUALS (06) - POWER TRAIN

1

30-1226T2

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width

4шт.

30-1239T1

WHEEL

- inner, 30.5 x 32 inch, 30 inch width

4шт.

2

47-4529

RIM

WHEEL - dual, 30.5 x 32 inch, 27 inch width

4шт.

30-1212T1

RIM

WHEEL - dual, 30.5 x 32 inch, 30 inch width

4шт.

3

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

72шт.

4

70-5473T1

WASHER

- flat, hardened

168шт.

5

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, Grade 8

48шт.

6

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

48шт.

7

22-521

PLUG

- hole

8шт.
