(6-32) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K594.30

Запчасти Case IH KP-525 (6-32) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K594.30 (06) - POWER TRAIN

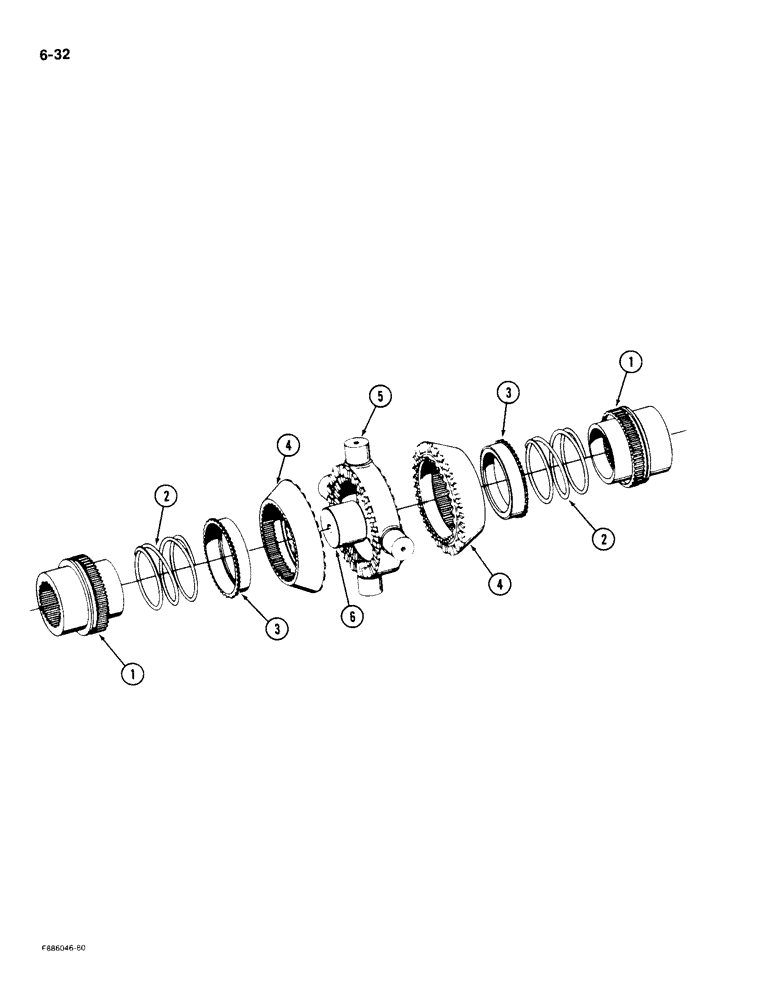

Схема запчастей Case IH KP-525 - (6-32) - AXLE ASSEMBLY, NO-SPIN ASSEMBLY, K594.30 (06) - POWER TRAIN
4
3
5
1
3
6
4
1
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-2781T91

AXLE

ASSEMBLY - front, with no-spin, Includes: Ref. 1 - 6

1шт.

16-873

DIFFERENTIAL

NO-SPIN ASSEMBLY - axle, Includes: Ref. 1 - 3

1шт.

1

16-1461

GEAR

- side

2шт.

2

16-996

SPRING - compression

2шт.

3

16-993

COLLAR

RETAINER - clutch

2шт.

4

16-1460

CLUTCH - no-spin, Includes: Ref. 5 & 6

2шт.

5

16-998

DIFF. SPIDER

CAM - spider

1шт.

6

16-1187

SPACER

SLUG - axle spacer

1шт.
