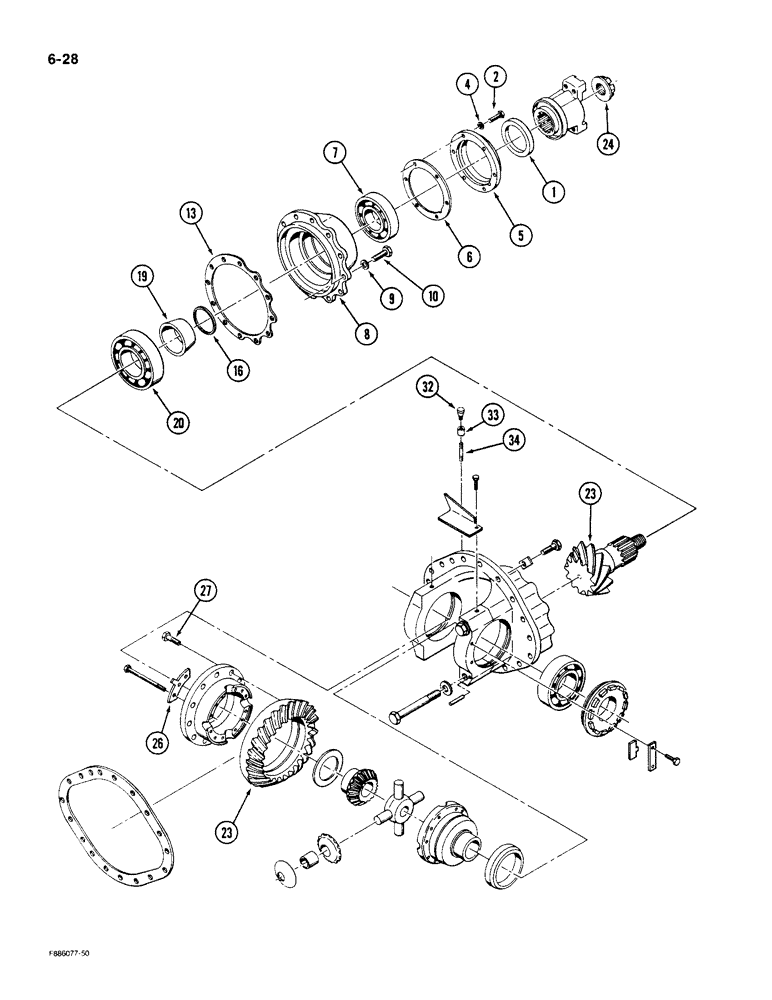

Запчасти Case IH KP-525 (6-28) - AXLE ASSEMBLY, DIFFERENTIAL AND CARRIER, K584.20/30 (CONTD) (06) - POWER TRAIN

90-2781T91

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 34 and 1 - 35 on Figure 6-24

1шт.

90-2782T91

AXLE

ASSEMBLY - rear, Includes: Ref. 1 - 34 and 1 - 35 on Figure 6-24

1шт.

90-2569T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - front, Includes: Ref. 1 - 34

1шт.

90-2568T91

DIFFERENTIAL ASSY

DIFFERENTIAL ASSEMBLY - rear, Includes: Ref. 1 - 34

1шт.

1

90-2509T1

SEALING RING

- input

1шт.

2

40-1170

CAPSCREW,Hex, M8 x 1.25 x 18mm, Gr 10.9

BOLT - hex, 8 x 18 mm, Grade 10.9

6шт.

4

16-1634

SPECIAL BOLT,Hex, M10 x 22mm, Cl 10.9

WASHER - lock, 8 mm

6шт.

5

90-2510T1

COVER

- seal retainer

1шт.

6

90-2506T1

GASKET

- cover

1шт.

7

90-2505T1

BEARING

- taper roller

1шт.

8

90-2504T1

HOUSING, BEARING

HOUSING - bearing retainer

1шт.

9

16-1592

LOCK WASHER

- lock, 14 mm

12шт.

10

40-1169

CAPSCREW,Hex, M14 x 1.5 x 40mm, Gr 10.9

BOLT - hex, 14 mm - 1.5 x 40 mm, Grade 10.9

12шт.

13

90-2502T1

SHIM

- housing, 0.20 mm thick

1шт.

13

90-2503T1

SHIM

- housing, 0.25 mm thick

1шт.

13

90-2501T1

SHIM

- housing, 0.30 mm thick

1шт.

13

90-2500T1

SHIM

- housing, 0.50 mm thick

1шт.

13

90-2499T1

SHIM

- housing, 1.00 mm thick

1шт.

16

90-2485T1

SPACER

- bearing, 6.90 mm thick

1шт.

16

90-2486T1

SPACER

- bearing, 7.00 mm thick

1шт.

16

90-2487T1

SPACER

- bearing, 7.02 mm thick

1шт.

16

90-2488T1

SPACER

- bearing, 7.04 mm thick

1шт.

16

90-2489T1

SPACER

- bearing, 7.06 mm thick

1шт.

16

90-2490T1

SPACER

- bearing, 7.08 mm thick

1шт.

16

90-2491T1

SPACER

- bearing, 7.10 mm thick

1шт.

16

90-2492T1

SPACER

- bearing, 7.20 mm thick

1шт.

16

90-2493T1

SPACER

- bearing, 7.32 mm thick

1шт.

16

90-2494T1

SPACER

- bearing, 7.44 mm thick

1шт.

16

90-2495T1

SPACER

- bearing, 7.56 mm thick

1шт.

16

90-2496T1

RING

SPACER - bearing, 7.68 mm thick

1шт.

16

90-2497T1

SPACER

- bearing, 7.80 mm thick

1шт.

16

90-2498T1

SPACER

- bearing, 7.92 mm thick

1шт.

19

90-2484T1

SPACER

SLEEVE - bearing spacer

1шт.

20

90-2483T1

BEARING

- taper roller

1шт.

23

90-2480T91

GEAR, BEVEL

GEAR SET - ring and pinion, front, Includes: Ref. 24 - 27

1шт.

23

90-2481T91

GEAR, BEVEL

GEAR SET - ring and pinion, rear, Includes: Ref. 24 - 27

1шт.

24

1-6764

NUT

- slotted flange

1шт.

26

16-1546

LARGE PLATE

PLATE - bolt locking

6шт.

27

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

BOLT - hex, 18 mm - 1.5 x 35 mm, Grade 10.9

12шт.

32

1-1359

BREATHER

VENT - breather

1шт.

33

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING - pipe, 1/8 inch PT

1шт.

34

31-1841

CONDUIT

NIPPLE - pipe, 1/8 PT x 4 inch

1шт.
