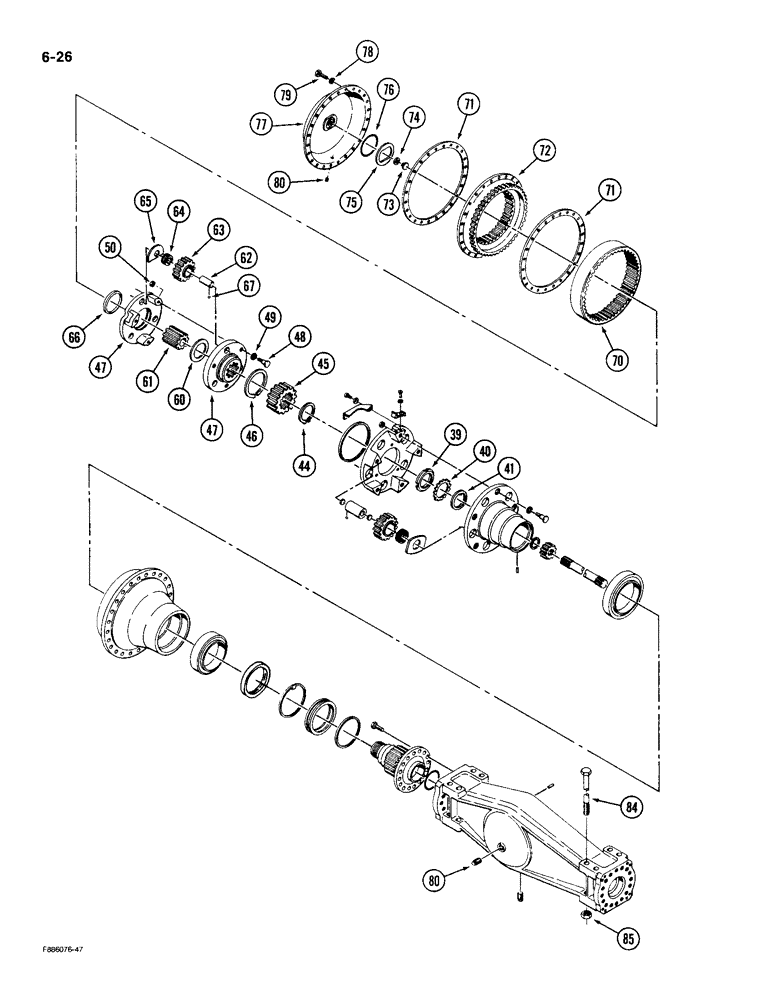

Запчасти Case IH KP-525 (6-26) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K594.20/30 (CONTD) (06) - POWER TRAIN

39

90-2527T1

NUT

- shaft end

2шт.

40

1-6701

WASHER

WASHER - lock, adjusting nut

2шт.

41

90-2526T1

DISC

- spacer

2шт.

90-2572T91

CARRIER

ASSEMBLY - outer planetary, left or right, Includes: Ref. 44 - 80

2шт.

44

1-6726

CIRCLIP

RING - snap

2шт.

45

90-2563T1

SUN GEAR

GEAR - sun

2шт.

46

90-2562T1

RING, SNAP

RING - snap

2шт.

47

90-2559T91

CARRIER

- outer planetary, Includes: Ref. 48 - 50

2шт.

48

16-1608

SCREW,Hex Shldr

BOLT - shoulder

6шт.

49

16-1599

WASHER

- flat

6шт.

50

16-1598

NUT

- hex, 16 mm - 1.5

6шт.

60

90-2561T1

RING, SNAP

RING - retainer

2шт.

61

90-2560T1

GEAR

- sleeve

2шт.

62

90-2567T1

PIN

- planetary pinion

6шт.

63

90-2566T1

GEAR

- planetary pinion, 27 tooth

6шт.

64

90-2565T1

NEEDLE BEARING

- needle roller

12шт.

65

90-2564T1

LARGE PLATE

PLATE - spacer, wear

12шт.

66

90-2558T1

RING

- retainer

2шт.

67

16-1607

BALL

- steel

6шт.

70

90-2557T1

RING

GEAR - ring, 86 tooth, left or right

2шт.

71

90-2551T1

GASKET

(Order 1-1055, RTV sealant)

4шт.

72

90-2556T1

RING

GEAR - ring, double, 86/73 tooth, left or right

2шт.

73

90-2555T1

LARGE PIN

PIN - support, thrust, axle shaft

2шт.

74

90-2554T1

SHIM

- thrust pin

1шт.

75

90-2553T1

DISC

- spacer

2шт.

76

90-2552T1

SHIM

- spacer disc

1шт.

77

90-2550T1

REAR COVER

COVER - axle end, left or right

2шт.

78

16-1592

LOCK WASHER

- lock, 14 mm

48шт.

79

40-1171

BOLT,Hex, M14 x 1.5 x 50mm, Gr 10.9

BOLT - hex, 14 mm - 1.5 x 50 mm, Grade 10.9

48шт.

80

90-2523T1

PLUG

- 24 mm - 1.5

3шт.

84

19-5465

BOLT,1 1/4" x 7", Gr 8

- hex, 1-1/4 NC x 15-1/2 inch, Grade 8

8шт.

85

129-112

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

8шт.
