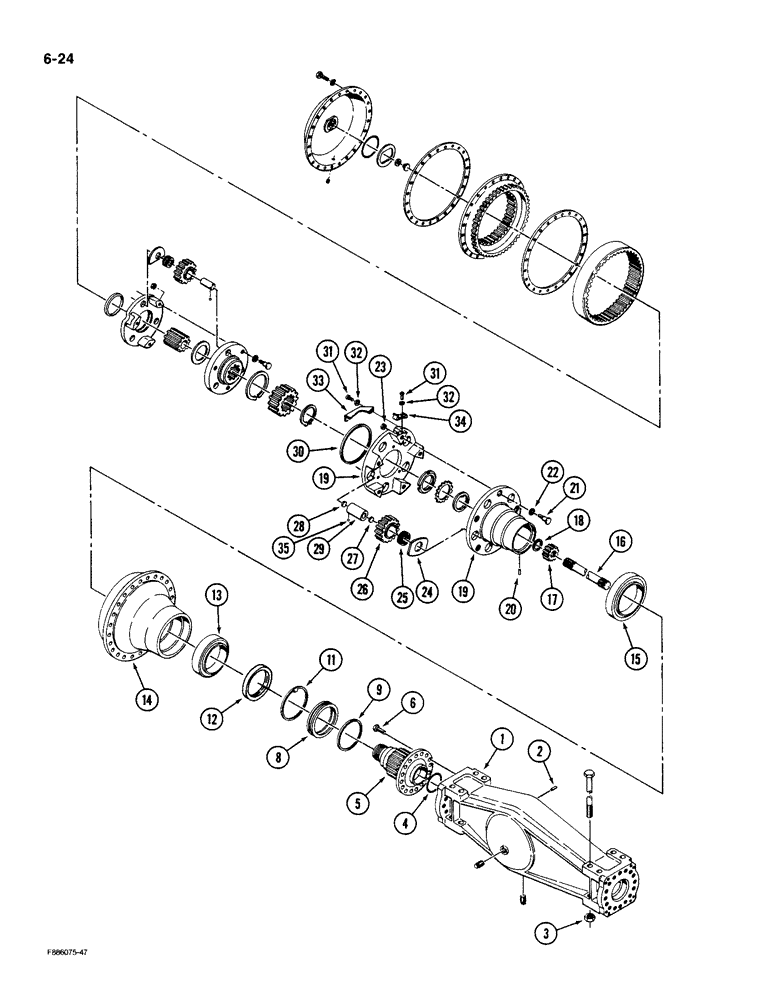

Запчасти Case IH KP-525 (6-24) - AXLE ASSEMBLY, HOUSING AND WHEEL END, K594.20/30 (06) - POWER TRAIN

90-2781T91

AXLE

ASSEMBLY - front, Includes: Ref. 1 - 35 and 1 - 34 on Figure 6-28

1шт.

90-2782T1

AXLE ASSEMBLY - rear, Includes: Ref. 1 - 35 and 1 - 34 on Figure 6-28

1шт.

1

90-2522T1

AXLE HOUSING

HOUSING - axle, front or rear

1шт.

2

16-1530

DOWEL

PIN - dowel, 10 x 24 mm

1шт.

3

90-4484T1

PLUG

- magnetic, 24 mm - 1.5

1шт.

4

16-1505

O-RING,136mm ID x 15mm Width

- seal, 135 x 5 mm thick

2шт.

5

90-2524T1

AXLE

- stub housing, left or right

2шт.

6

90-2525T1

CAPSCREW,M14 x 80mm

BOLT - hex

32шт.

8

90-2530T91

OIL SEAL

SEAL ASSEMBLY - shoulder ring, Includes: Ref. 9

2шт.

9

90-2529T2

SEALING RING

SEAL - stub axle

2шт.

11

90-2531T1

DISC

- spacer

2шт.

12

90-6191T1

SEAL

- oil

2шт.

13

1-7162

BEARING

- taper roller

2шт.

14

90-2534T1

HUB

- wheel, left or right

2шт.

15

16-1535

TAPERED BEARING,220 mm ID x 340 mm OD x 76 mm

BEARING - taper roller

2шт.

16

90-2535T1

SHAFT

- axle, short, 1105.6 mm

1шт.

16

90-2536T1

SHAFT

- axle, long, 1236.5 mm

1шт.

17

90-2537T1

SUN GEAR

GEAR - sun, 29 tooth

2шт.

18

16-1596

RING, SNAP

RING - snap

2шт.

90-2573T91

CARRIER

ASSEMBLY - inner planetary, left or right, Includes: Ref. 19 - 35

2шт.

19

90-2539T91

CARRIER

- inner planetary, left or right, Includes: Ref. 20 - 35

2шт.

20

90-2538T1

PLUG

- hole, 5 x 8 mm

2шт.

21

16-1608

SCREW,Hex Shldr

BOLT - shouldered

10шт.

22

16-1599

WASHER

- flat

10шт.

23

16-1598

NUT

- hex, 16 mm - 1.5

10шт.

24

90-2540T1

LARGE PLATE

PLATE - spacer, wear

20шт.

25

90-2541T1

NEEDLE BEARING

- needle roller

20шт.

26

90-2542T1

GEAR

- pinion, inner planetary, 28 tooth

10шт.

90-2574T91

PIN ASSY.

PIN ASSEMBLY - pinion gear, Includes: Ref. 27 - 29

1шт.

27

90-2545T1

PLUG

- screw

4шт.

28

90-2546T1

PLUG

- screw

4шт.

29

90-2543T1

PIN

- pinion gear

10шт.

30

90-2544T1

RING, SNAP

RING - snap

2шт.

31

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, Grade 10.9

10шт.

32

1-8332

SPRING WASHER

- lock, 8 mm

10шт.

33

90-2547T1

PLATE

- baffle

2шт.

34

90-2549T1

PLATE

- baffle

2шт.

35

16-1607

BALL

- steel

10шт.
