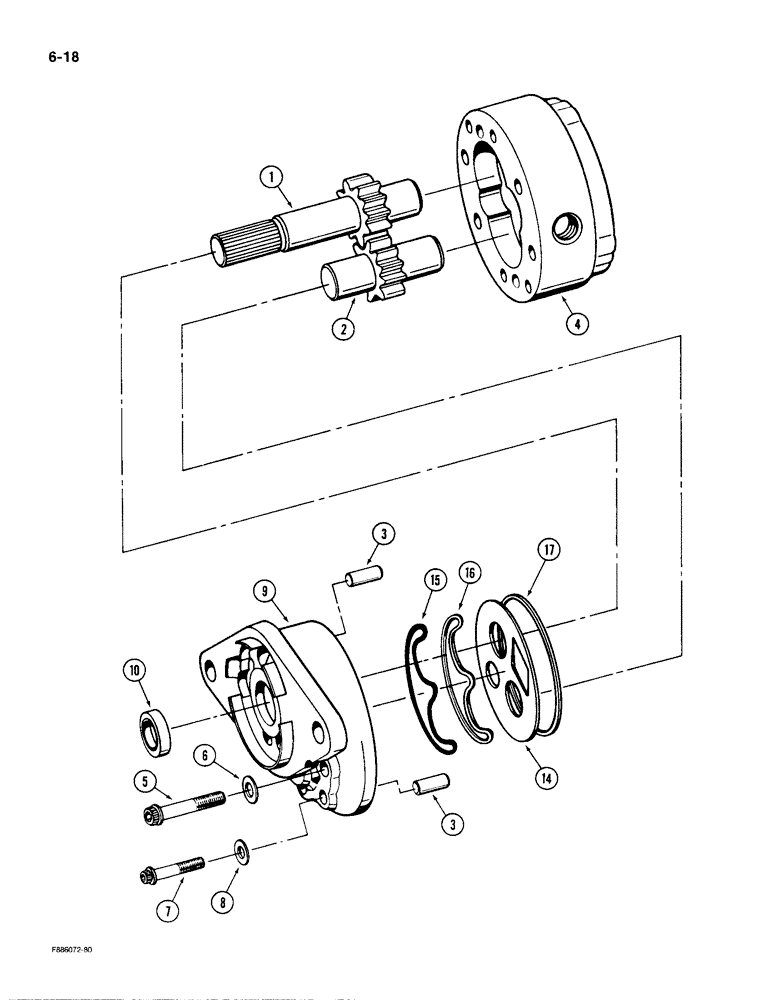

Запчасти Case IH KP-525 (6-18) - LUBE PUMP ASSEMBLY, FOUR SPEED TRANSFER CASE (06) - POWER TRAIN

90-3911T91

PUMP

ASSEMBLY - lubrication, Includes: Ref. 1 - 17

1шт.

1

50-1246T1

SHAFT

GEAR - drive

1шт.

2

50-1245T1

SHAFT

GEAR - idler

1шт.

3

50-1251T1

DOWEL

PIN - dowel

2шт.

4

50-1248T91

COVER

BODY ASSEMBLY - pump

1шт.

5

19-178

CAPSCREW,3/8" - 16 x 1 1/2", Gr 8

BOLT - socket head, 3/8 NC x 1-1/2 inch, Grade 8

4шт.

6

18-1260

SPACER

WASHER - flat

4шт.

7

9421625

SCREW,5/16" - 18 x 1.25", Gr 8

BOLT - socket head, 5/16 NC x 1-1/4 inch, Grade 8

4шт.

8

50-1252T1

WASHER

- flat

4шт.

9

90-3912T91

VALVE BODY

BODY ASSEMBLY - pump, Includes Ref. 10

1шт.

10

50-1253T1

OIL SEAL

SEAL input shaft

1шт.

Part of seal kit P/N 50-1254T1.

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of seal kit P/N 50-1254T1.

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - preload

1шт.

Part of seal kit P/N 50-1254T1.

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - load

1шт.

Part of seal kit P/N 50-1254T1.

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL- ring

1шт.

Part of seal kit P/N 50-1254T1.

1шт.

50-1254T1

PUMP

KIT Seal, Includes: Ref. 10 and 14 - 17

1шт.
