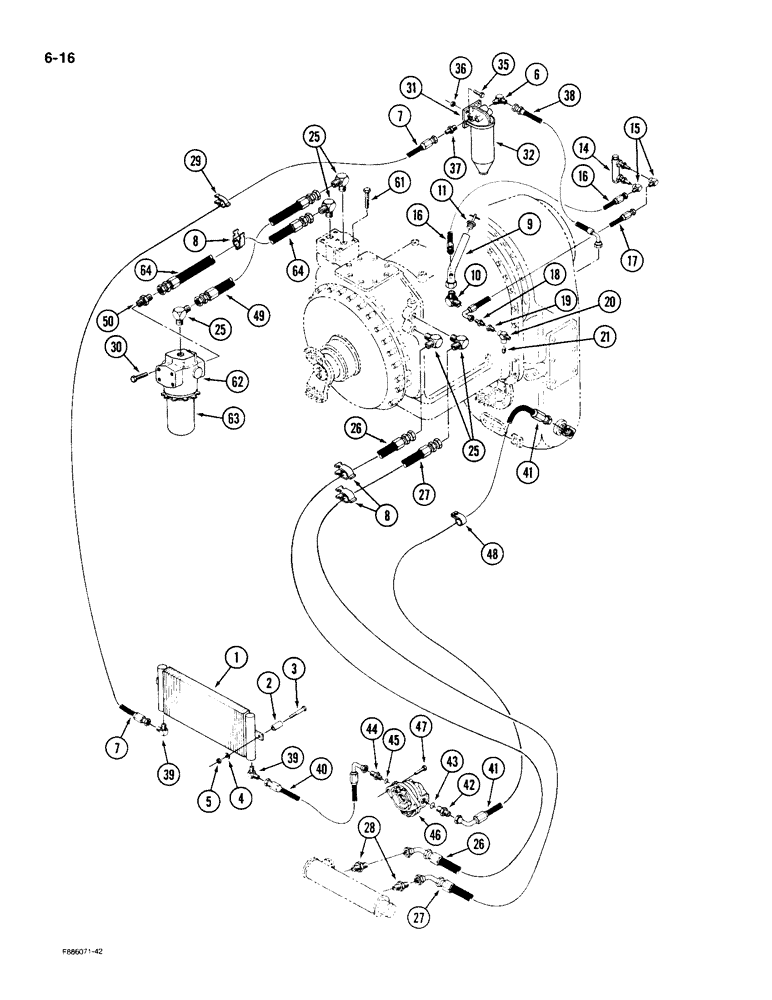

Запчасти Case IH KP-525 (6-16) - TRANSMISSION AND TRANSFER CASE LUBRICATION, P.I.N. 131-05017 AND AFTER (06) - POWER TRAIN

1

10-39

COOLER

- oil, transfer case

1шт.

2

2-1981T1

SPACER

- mounting, cooler, 3/8 x 3/4 x 2-3/4 inch

2шт.

3

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

4

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

31-325

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree, 3/4 PT x 3/4 inch thread

1шт.

7

31-1885

HOSE ASSY.

HOSE - oil cooler to filter, 204 inch

1шт.

8

31-1151

CLAMP

ASSEMBLY- hose, 1-1/2 inch

6шт.

9

90-4072T1

TUBE ASSY.,1.5" OD

TUBE - fill, oil

1шт.

10

31-2236

ELBOW

- 90 degree, 1-1/4 PT x 1-7/8 inch thread

1шт.

11

90-2245T1

PLUG

- oil fill

1шт.

14

90-4073T1

GAUGE

- sight, oil level

1шт.

15

31-2237

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, Fem NPTF

- 90 degree, 1/8 PT x 7/16 inch thread

2шт.

16

31-1554

HOSE

- sight gauge to fill tube

1шт.

17

31-2285

HOSE

- sight gauge to transfer case

1шт.

18

19-1101

HYD CONNECTOR,7/16" - 20, 37 Degree x 3/8" - 18, NPTF

CONNECTOR - straight, 3/8 PT x 7/16 inch thread

1шт.

19

31-73

BUSHING

CONNECTOR - straight, 3/8 PT x 3/4 PT

1шт.

20

31-498

TEE

- connector, 3/4 inch PT

1шт.

21

31-34

PLUG

- pipe, drain, 3/4 inch PT

1шт.

25

218-489

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

- 90 degree, 1-1/4 PT x 1-5/8 inch thread

5шт.

26

31-2284

HOSE

- transmission to oil cooler, 115 inch

1шт.

27

31-2283

HOSE

- transmission to oil cooler, 102 inch

1шт.

28

31-2240

CONNECTOR - straight, 1-1/2 PT x 1-5/8 inch thread

2шт.

29

31-1187

CLAMP

ASSEMBLY - hose, 1 inch

3шт.

30

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

31

1-9669

FILTER

ASSEMBLY - oil, transfer case, Includes: Ref. 32

1шт.

32

2-2038

ELEMENT

- oil filter

1шт.

35

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

36

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, 3/8 inch NC

4шт.

37

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

CONNECTOR - straight, 3/4 PT x 7/8 inch thread

1шт.

38

31-2374

HOSE

- filter to transfer case, 26 inch

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

2шт.

40

31-2329

HOSE ASSY.

HOSE - oil cooler to pump, 84 inch

1шт.

41

31-2395

HOSE ASSY.

HOSE - pump to transfer case, 126-1/2 inch

1шт.

42

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - straight, 1-1/16 x 1-5/16 inch thread, Includes: Ref. 43

1шт.

43

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, 7/8 inch thread, Includes: Ref. 45

1шт.

45

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

46

REF

INSTRUCTION

PUMP ASSEMBLY - lubrication, See Figure 6-18

1шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

48

19-887

CLAMP,1 1/4", Insul, 1/2" Bolt

- hose

2шт.

49

31-2235

HOSE -, Serial Range: transmission-filter

1шт.

50

31-585

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

CONNECTOR - straight, 1-1/4 PT x 1-5/8 inch thread

1шт.

61

113-345

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch

5шт.

62

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - transmission, Includes: Ref. 63, o-ring and switch

1шт.

63

90-6723T1

ELEMENT

- filter

1шт.

90-6724T1

O-RING

- element

1шт.

90-6725T1

SWITCH

- filter

1шт.

64

31-2234

HOSE - transmission to filter, 44 inch

1шт.
