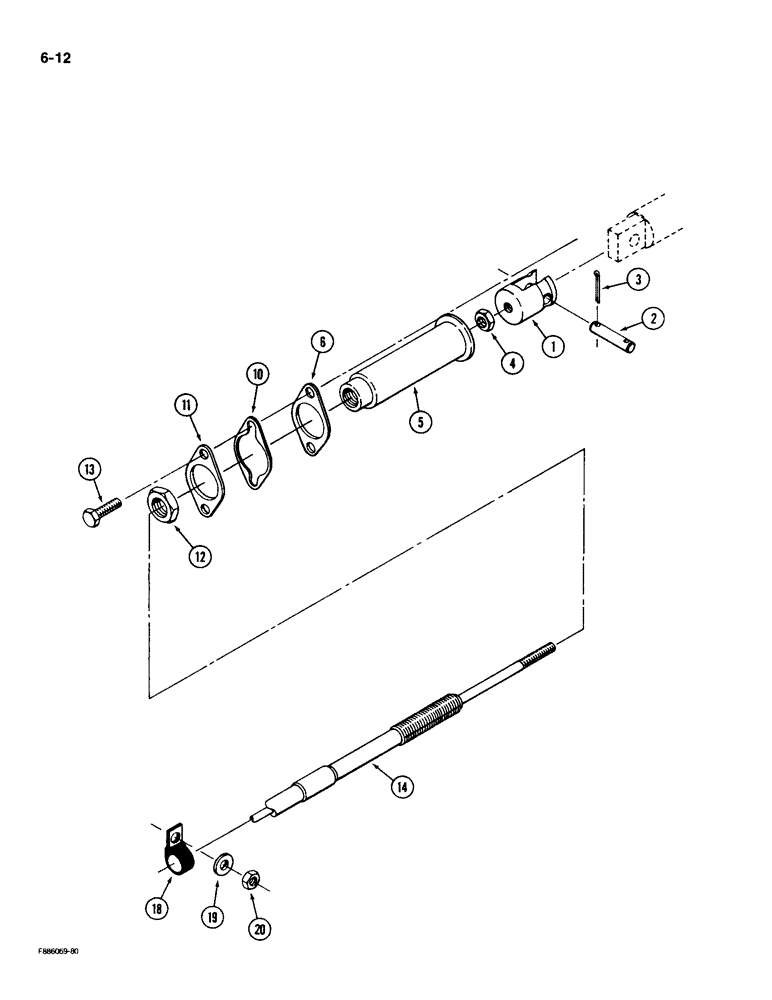

Запчасти Case IH KP-525 (6-12) - TRANSMISSION SHIFT CONTROLS, FOUR SPEED TRANSFER CASE, TRANSFER CASE ATTACHING (06) - POWER TRAIN

1

2-4752T1

FORK

YOKE - clevis, shift actuating

2шт.

2

19-6041

PIN

- clevis

2шт.

3

19-6043

COTTER PIN,1/32" x 3/4"

Pin, Split (Cotter) 1/32" x 3/4"

4шт.

4

19-236

JAM NUT,5/16" - 24, Gr 5

- hex jam, 5/16 inch NF

2шт.

5

2-4692T1

ROPE GUIDE

ENCLOSURE - cable

2шт.

6

2-4693T1

RETAINER

- encloser, cable

2шт.

10

60-3008T1

SHIM

- encloser

2шт.

11

60-2056T1

GASKET

- retainer

2шт.

12

129-168

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.

13

19-5852

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - flanged, 1/4 NC x 3/4 inch

4шт.

14

2-6864T1

CABLE

- control, shift, 98-1/2 inch

1шт.

14

2-5310T1

CABLE

- control, shift, 125 inch

1шт.

18

31-1633

CLAMP - cable

3шт.

19

495-21031

WASHER,1/4"

- flat, 1/4 x 47/64 x 1/16 inch

3шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.
