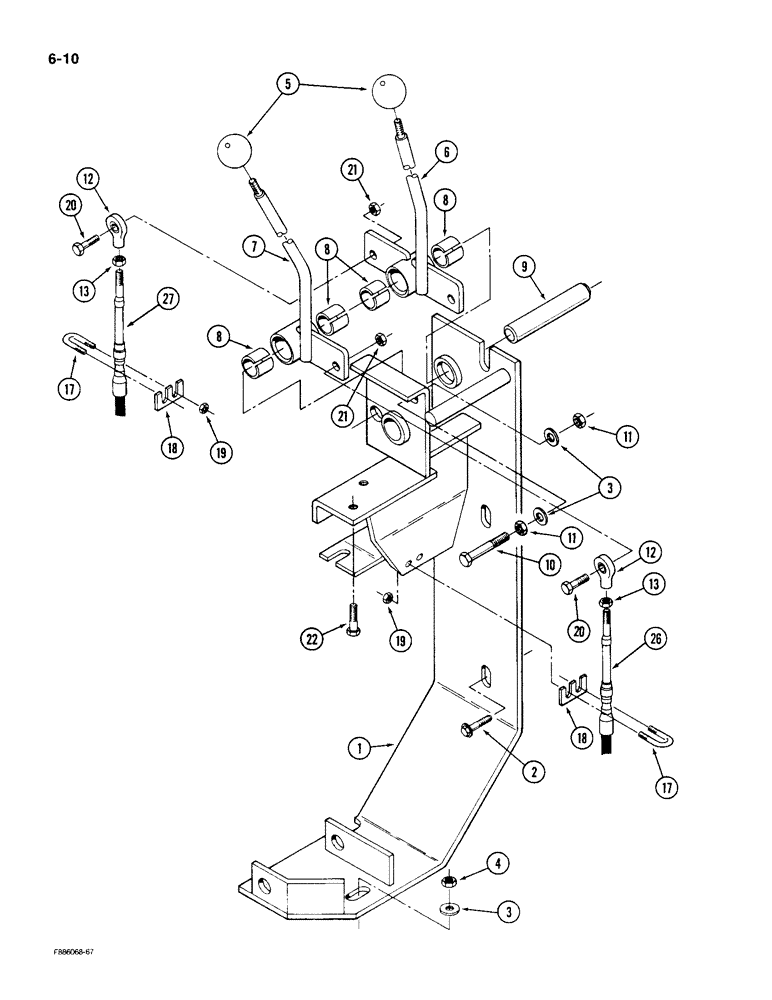

Запчасти Case IH KP-525 (6-10) - TRANSMISSION SHIFT CONTROLS, FOUR SPEED TRANSFER CASE (06) - POWER TRAIN

1

60-3265T1

MOUNTING PARTS

MOUNT - shift controls, 4 speed transfer case

1шт.

2

19-957

SCREW

- tapping, flanged head, 5/16 NC x 3/4 inch

3шт.

3

25709R1

WASHER

- flat, 3/8 x 1 x 1/16 inch

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

5

24-210

KNOB

- shift lever

2шт.

6

60-3262T1

LEVER

- control, shift

1шт.

7

60-3261T1

LEVER

- control, shift

1шт.

8

24-209

BUSHING,0.75" ID x 0.875" OD x 0.375"

BEARING - pivot, split

4шт.

9

24-216

SHAFT

- pivot, shift lever

1шт.

10

19-22

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

11

19-295

NUT,Jam, 3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

12

1-3332

BALL JOINT

- shift control

2шт.

13

19-236

JAM NUT,5/16" - 24, Gr 5

- hex, jam, 5/16 inch NF

2шт.

17

19-5402

BOLT

- U, shift cable

2шт.

18

2-3008T1

SHIM

- shift cable

2шт.

19

19-509

LOCK NUT,5/16"-24, GB

NUT - hex, lock, 5/16 inch NF

4шт.

20

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

19-5777

LOCK NUT

- hex, lock, 5/16 inch NC

2шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

26

2-5310T1

CABLE

- control, shift, 125 inch

1шт.

27

2-6864T1

CABLE

- control, shift, 98-1/2 inch

1шт.
