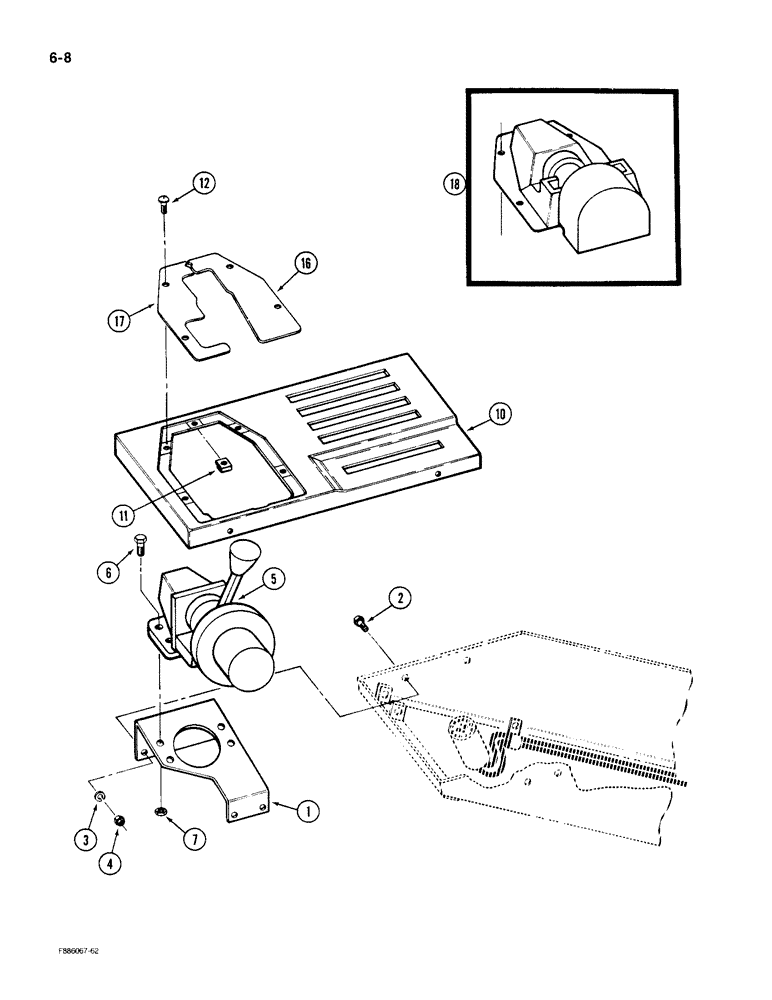

Запчасти Case IH KP-525 (6-08) - TRANSMISSION SHIFT CONTROLS, AUTOMATIC TRANSMISSION (06) - POWER TRAIN

1

1-9982

BRACKET

- mounting, transmission shifter

1шт.

2

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

3

19-115

LOCK WASHER,1/4"

1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

90-3583T1

CASING

CONTROLLER - shift, transmission

1шт.

6

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

4шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

4шт.

10

1-9987T1

COVER

- console

1шт.

11

19-5406

RETAINER

NUT - clip, J-type, No. 10 NC

5шт.

12

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head, No. 10 NC x 3/4 inch

5шт.

16

60-4696T1

COVER

- shift control

1шт.

17

60-4537T1

COVER

- shift control

1шт.

18

2-1148T2

COVER

- shift control, plastic (Order 60-4696T1 and 60-4537T1)

1шт.
