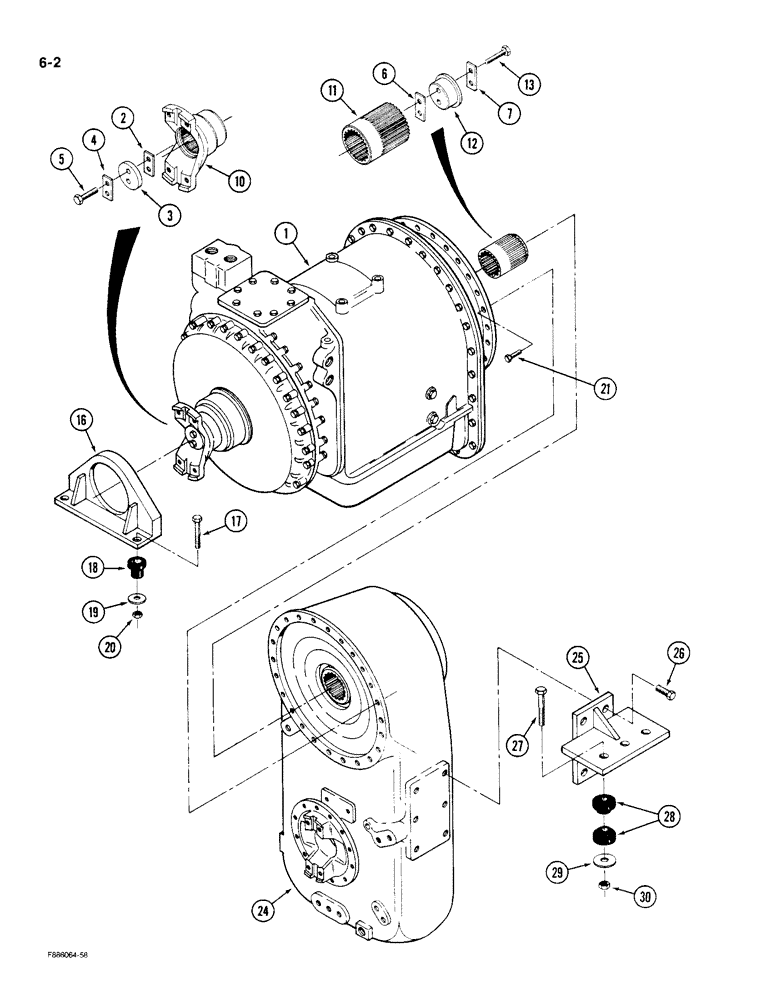

Запчасти Case IH KP-525 (6-02) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

90-3781T2

TRANSMISSION

ASSEMBLY, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

SHIM - yoke

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - yoke retainer

1шт.

4

NSS

NOT SOLD SEPARAT

TAB - locking, bolt

1шт.

5

NSS

NOT SOLD SEPARAT

BOLT - hex

2шт.

6

NSS

NOT SOLD SEPARAT

SHIM - output coupling

1шт.

7

NSS

NOT SOLD SEPARAT

TAB - locking, bolt

1шт.

10

90-3752T1

FORK

YOKE - input

1шт.

11

90-3687T1

COUPLING

- output

1шт.

12

90-3688T1

COUPLING

ADAPTER - coupling mounting

1шт.

13

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

- hex, 1/2 NF x 2-1/2 inch, Grade 8

2шт.

16

47-3106

TRUNNION

MOUNT - transmission trunion

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

18

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber

2шт.

19

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

20

425-1010

NUT,5/8"-11, G5

2шт.

21

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

24шт.

24

REF

INSTRUCTION

TRANSMISSION - transfer case, See Figures 6-04 and 6-06

1шт.

25

90-3726T1

MOUNTING PARTS

MOUNT - transmission

2шт.

26

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

12шт.

27

19-614

BOLT,3/4" - 10 x 4 1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

28

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

12шт.

29

47-4626

WASHER

- flat, 3/4 x 3-1/2 x 3/16 inch

6шт.

30

19-84

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

19-6193

SEALANT

SEALANT - flange (50 ml tube)

1шт.
