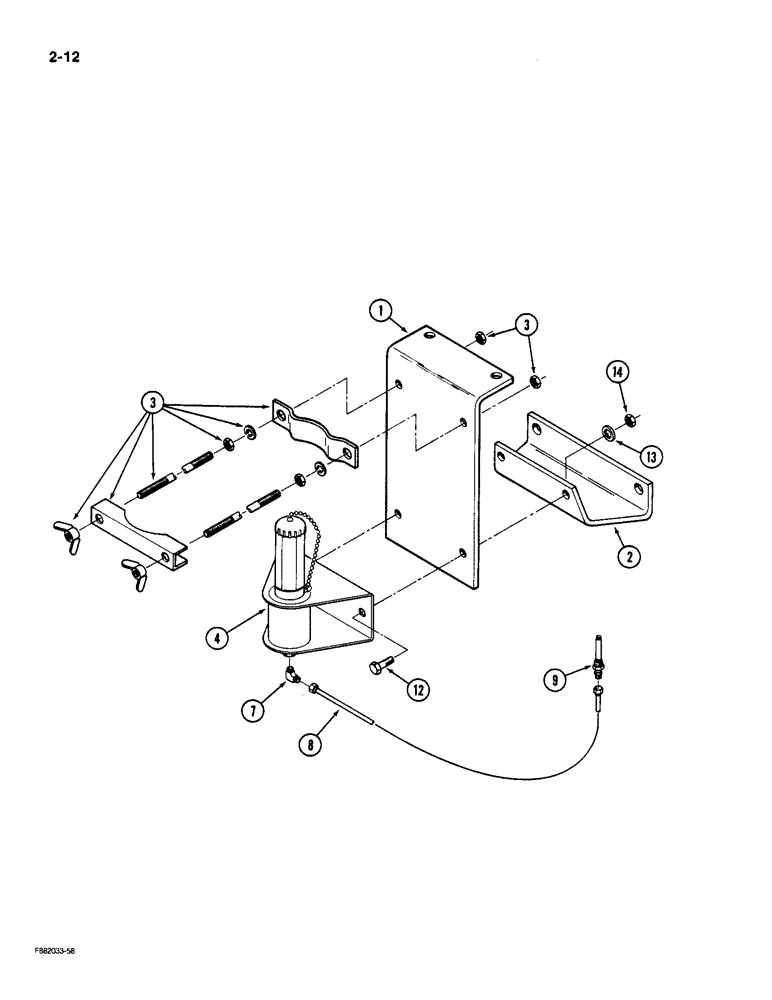

Запчасти Case IH KP-525 (2-12) - ETHER STARTING SYSTEM (02) - ENGINE

1

47-4556

BRACKET

- mounting, ether start

1шт.

2

90-2933T1

BRACKET

- support

1шт.

3

31-1470

CLAMP

ASSEMBLY - ether start container

1шт.

4

20-1346T1

VALVE

ASSEMBLY - solenoid, ether start

1шт.

7

1-8564

FITTING

ELBOW - 90 degree

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE - ether, solenoid to injector, 1/8 OD x 24 inch (Order 29-53T3, Serial Range: cut-length)

1шт.

29-53T3

TUBE

- bulk roll, 10 ft

1шт.

9

90-7034T1

PACKAGE

INJECTOR ASSEMBLY - nozzle

1шт.

12

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

13

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
