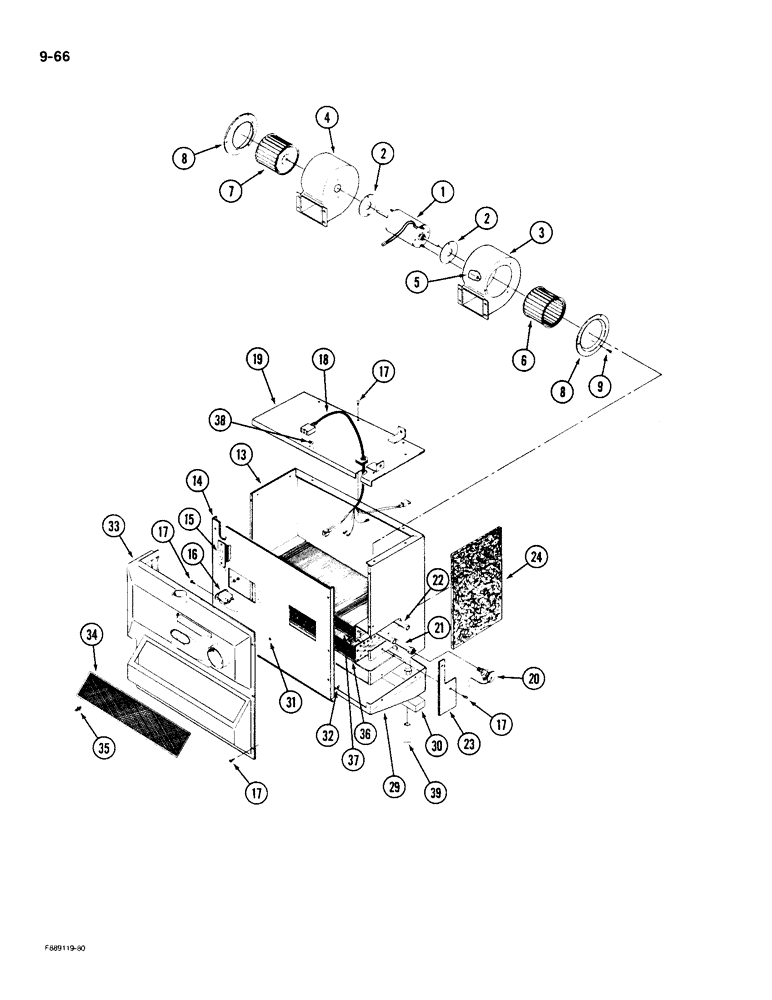

Запчасти Case IH KP-525 (9-66) - AIR CONDITIONING AND HEATER MODULE ASSEMBLY, P.I.N. 131-03213 AND AFTER (09) - CHASSIS/ATTACHMENTS

60-3806T91

CONTROL

MODULE ASSEMBLY - air conditioner and heater, Includes: Ref. 1 - 39

1шт.

60-2641T91

BLOWER

ASSEMBLY - air, Includes: Ref. 1 - 9

1шт.

1

60-2564T2

BLOWER

MOTOR - blower, air

1шт.

2

60-2565T1

GASKET

- motor

2шт.

3

60-2568T1

HOUSING

- blower wheel, right

1шт.

4

60-2569T1

HOUSING

- blower wheel, left

1шт.

5

231-24109

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 NF

4шт.

6

60-2566T2

BLOWER

WHEEL - blower, right

1шт.

7

60-2629T2

BLOWER

WHEEL - blower, left

1шт.

8

60-2567T1

FLANGE

- inlet

2шт.

9

9426646

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/4"

SCREW - tapping, flanged head, No. 6 NS x 1/4 inch

6шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - module

1шт.

14

NSS

NOT SOLD SEPARAT

PANEL - front cover

1шт.

15

60-4313T1

RESISTOR

- electrical, motor

1шт.

16

25-1039

THERMOSTAT

- air conditioner

1шт.

17

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

SCREW - tapping, truss head, No. 8 x 1/2 inch

26шт.

18

60-4312T1

HARNESS

- wire, blower motor

1шт.

19

NSS

NOT SOLD SEPARAT

PANEL - top cover

1шт.

20

1-7844

VALVE

- expansion

1шт.

21

1-7842

COIL

- evaporator

1шт.

22

1-7843

HEATER ASSY.

CORE - heater

1шт.

23

60-4362T1

PANEL - side access

1шт.

24

60-4314T1

SEAL

INSULATION -, Serial Range: module-firewall

1шт.

29

1-8087

PAN

- condensation

1шт.

30

25-1059

PAD

- foam, condensation pan to floor boards

1шт.

31

31-1725

GROMMET

- thermostat bulb

1шт.

32

445476

CLIP

NUT - U type, No. 8

2шт.

33

60-4311T1

TRANSMISSION

COVER - transition, air flow

1шт.

34

1-2065

FILTER

- air inlet, with foam seal (Order 1-1627T1 and 1-2058)

1шт.

35

60-4318T1

CLIP

- S type, filter retaining

4шт.

36

60-4317T1

FOAM

- seal, evaporator coil (Order 60-2895T2, Serial Range: cut-length)

1шт.

37

60-4316T1

FOAM

- seal, heater core (Order 60-2895T2, Serial Range: cut-length)

1шт.

60-2895T2

FOAM

SEAL - bulk, 10 ft roll

1шт.

38

2-1374

CLIP

- cable mounting

1шт.

39

25-1060

TUBE - drain, condensation 1" ID, 1.06" OD, 3" Length

1шт.
