Запчасти Case IH KP-525 (9-38) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS

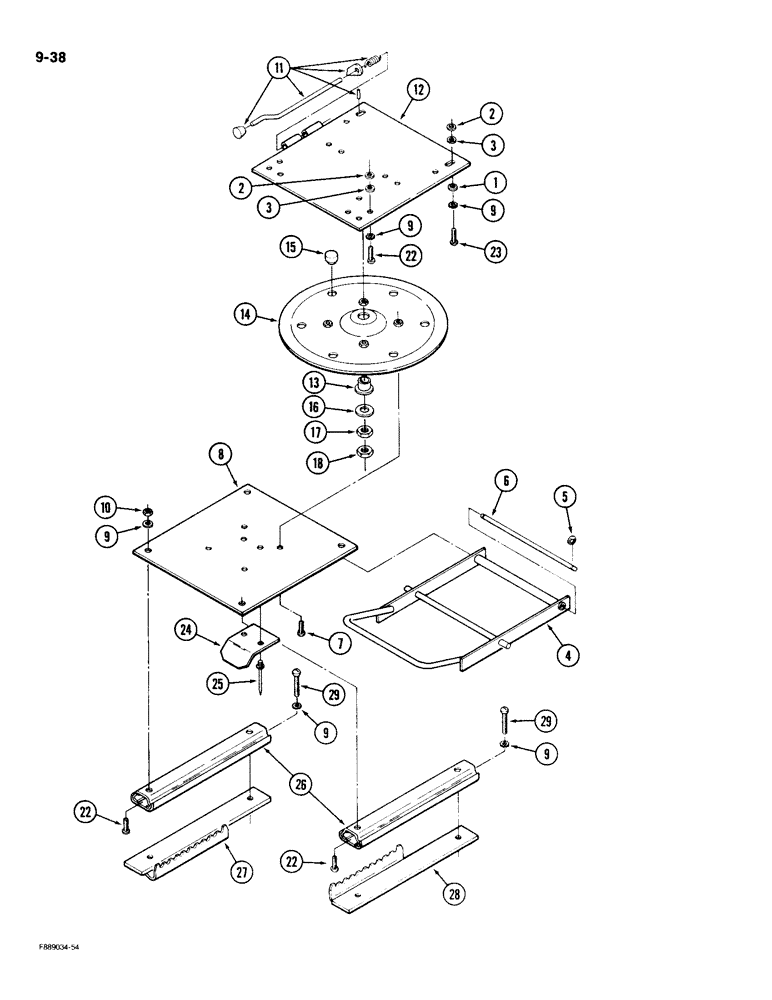

Схема запчастей Case IH KP-525 - (9-38) - SEAT, AIR SUSPENSION, CAB (09) - CHASSIS/ATTACHMENTS
16
1
3
13
27
10
9
14
11
2
18
26
9
7
2
22
5
17
9
4
9
28
25
6
15
29
22
24
12
3
9
22
29
8
23

Артикул

Название

Примечание

Количество

60-5949T91

SEAT

ASSEMBLY - air suspension, Gray cloth upholstery

1шт.

60-4793T91

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Tan cloth upholstery

1шт.

1

40-1007

WASHER

- flat, 8 mm

2шт.

2

60-1679T1

WASHER

- flat, 10 mm

4шт.

3

60-1667T1

WASHER

- flat, 11 mm

4шт.

4

60-3249T1

HANDLED SHAFT

HANDLE - fore and aft adjustment

1шт.

5

40-1182

CIRCLIP,M6

WASHER - retaining

2шт.

6

60-3248T1

ROD

- handle pivot

1шт.

7

60-4843T1

SCREW

BOLT - hex, 8 x 16 mm

4шт.

8

60-3250T1

PLATE ASSY.

PLATE - seat pan mounting

1шт.

9

40-1154

LOCK WASHER

- lock, 8 mm

12шт.

10

40-1121

NUT

- hex, 8 mm

4шт.

60-3255T91

LINK

SWIVEL ASSEMBLY - seal

1шт.

11

60-3247T1

LEVER ASSY.

LEVER ASSEMBLY - swivel, Includes: Ref. 12 - 18

1шт.

12

60-3246T91

PLATE ASSY.

PLATE ASSEMBLY - seat mounting, Includes: Ref. 13

1шт.

13

60-1621T1

BUSHING

- swivel plate

1шт.

14

60-1625T1

LINK

PLATE - swivel

1шт.

15

60-1619T1

BUSHING

- swivel

6шт.

16

60-1624T1

THRUST BEARING

- thrust

1шт.

17

60-1623T1

NUT

- hex, 16 mm

1шт.

18

60-1622T1

LOCK NUT

- hex lock, 16 mm

1шт.

22

40-1164

BOLT,Sl Cheese Hd, M8 x 1.25 x 16mm

- machine, pan head, 8 x 16 mm

6шт.

23

40-1231

BOLT,Hex, M8 x 1.25 x 16mm, Gr 8.8

BOLT- hex, 8 mm - 1.25 x 16 mm

2шт.

24

60-3368T1

SPRING

PLATE - spring

1шт.

25

1-2503

RIVET,Pop, .146" x .425"

- pop, 5/32 x 1/4 inch

2шт.

26

60-1577T1

RAIL ASSY.

RAIL - fore and aft seat slide

2шт.

27

60-3251T1

PLATE

- right locking, slide rail

1шт.

28

60-3253T1

PLATE

- left locking, slide rail

1шт.

29

40-1233

SCREW,Sl Cheese Hd, M8 x 1.25 x 20mm

- machine, pan head, 8 x 20 mm

4шт.

Выбрано товаров: 29
