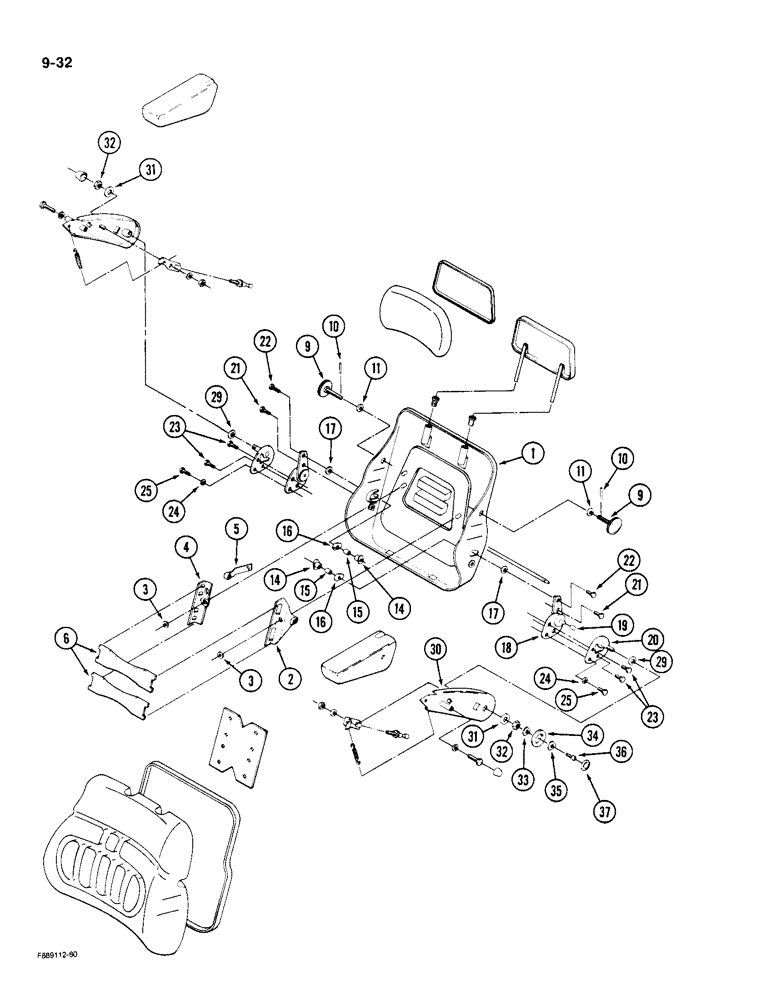

Запчасти Case IH KP-525 (9-32) - SEAT, MECHANICAL SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

60-1876T92

SEAT ASSY.

SEAT ASSEMBLY - mechanical suspension

1шт.

Includes: Ref. 1 - 31 on Figure 9-24, 1 - 25 on Figure 9-26, 1 - 34 on Figure 9-28, 1 - 59 on Figure 9-30 and 1 - 37 on Figure 9-32.

1шт.

1

60-1700T1

BACKREST

PAN - backrest

1шт.

2

60-1698T1

BRACKET

BEARING - spring retainer

1шт.

3

60-1697T1

RING, SNAP

RING - push-on retaining

2шт.

4

60-1696T1

BRACKET

- angled

1шт.

5

60-1695T1

BEARING

1шт.

6

60-1699T1

PLATE

- spring

2шт.

9

60-3200T1

KNOB

- lumbar support

2шт.

10

40-1176

PIN

- spring, 3 x 20 mm

2шт.

11

60-1667T1

WASHER

- flat, 11 mm

2шт.

14

60-1704T1

NUT

- weld

2шт.

15

60-1703T1

TUBE

SPACER - bracket mounting

2шт.

16

60-1702T1

SPRING

CUSHION - rubber spring

2шт.

17

40-1162

WASHER

- flat, plastic, 17 x 30 x 3 mm

2шт.

18

60-3192T1

BRACKET

MOUNT - arm rest support, left

1шт.

19

60-3193T1

PIN

- hinge

1шт.

20

60-3256T1

LARGE PLATE

PLATE - bearing, left

1шт.

21

40-1090

CAPSCREW,Hex, M8 x 1.25 x 20mm, Gr 8.8

BOLT - hex, 8 mm - 1.25 x 20 mm

2шт.

22

40-1115

BOLT - hex

2шт.

23

60-1628T1

BOLT

- hex, 8 x 20 mm

4шт.

24

19-193

LOCK WASHER,Ext Tooth, 7/16"

WASHER - lock, 7/16 inch

2шт.

25

60-1627T1

SCREW

BOLT - hex

2шт.

29

60-1654T1

WASHER

- flat, 24 mm

2шт.

30

60-3190T1

SUPPORT

- armrest, left

1шт.

31

40-1156

WASHER

- flat, 25 mm

2шт.

32

60-1653T1

LOCK NUT

- lock, 24 mm - 1.5

2шт.

33

60-1689T1

PLATE

- backrest knob

1шт.

34

60-1690T1

KNOB

- backrest adjustment

1шт.

35

60-1691T1

WASHER

- backrest knob

1шт.

36

40-1177

HEX SOC SCREW,M6 x 60mm, Gr 8.8

BOLT - socket head, 6 x 60 mm

1шт.

37

60-3186T1

CAP

- knob

1шт.
